OPERATION

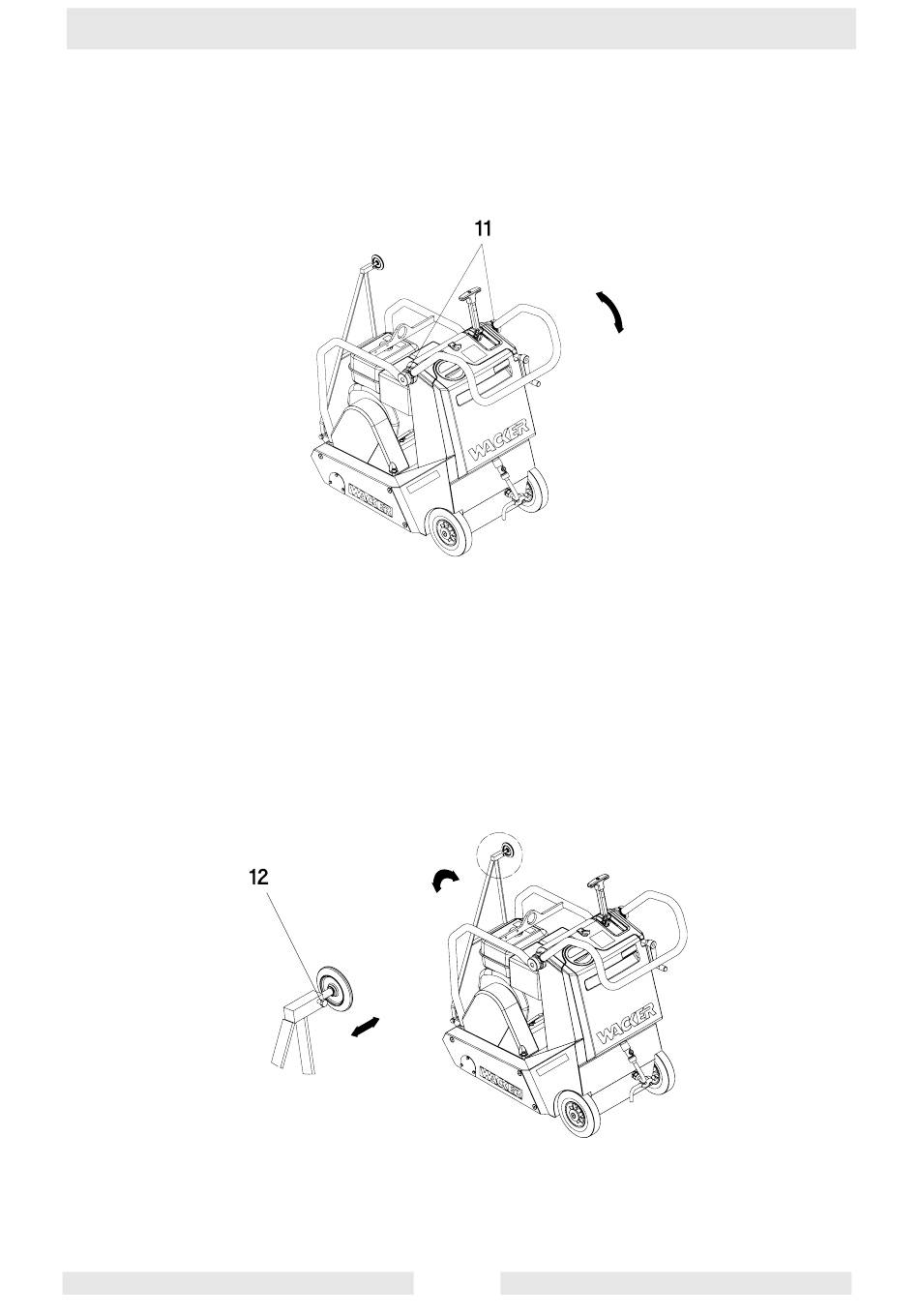

Guide handle adjustment
The guide handle can be individually adjusted to the height of the operator.
Loosen the knurled thumb screws (11) on both sides, swivel the guide handle to the desired position and then
tighten back both knurled thumb screws.
Guide wheel adjustment
The guide wheel makes the job of cutting long straight cuts easier.
The guide wheel can be adjusted laterally to coincide exactly with the position of the cutting disc by loosening
the clamp screw (12) and then sliding the wheel in one direction or the other.
12
