OPERATION
Cutting depth adjustment

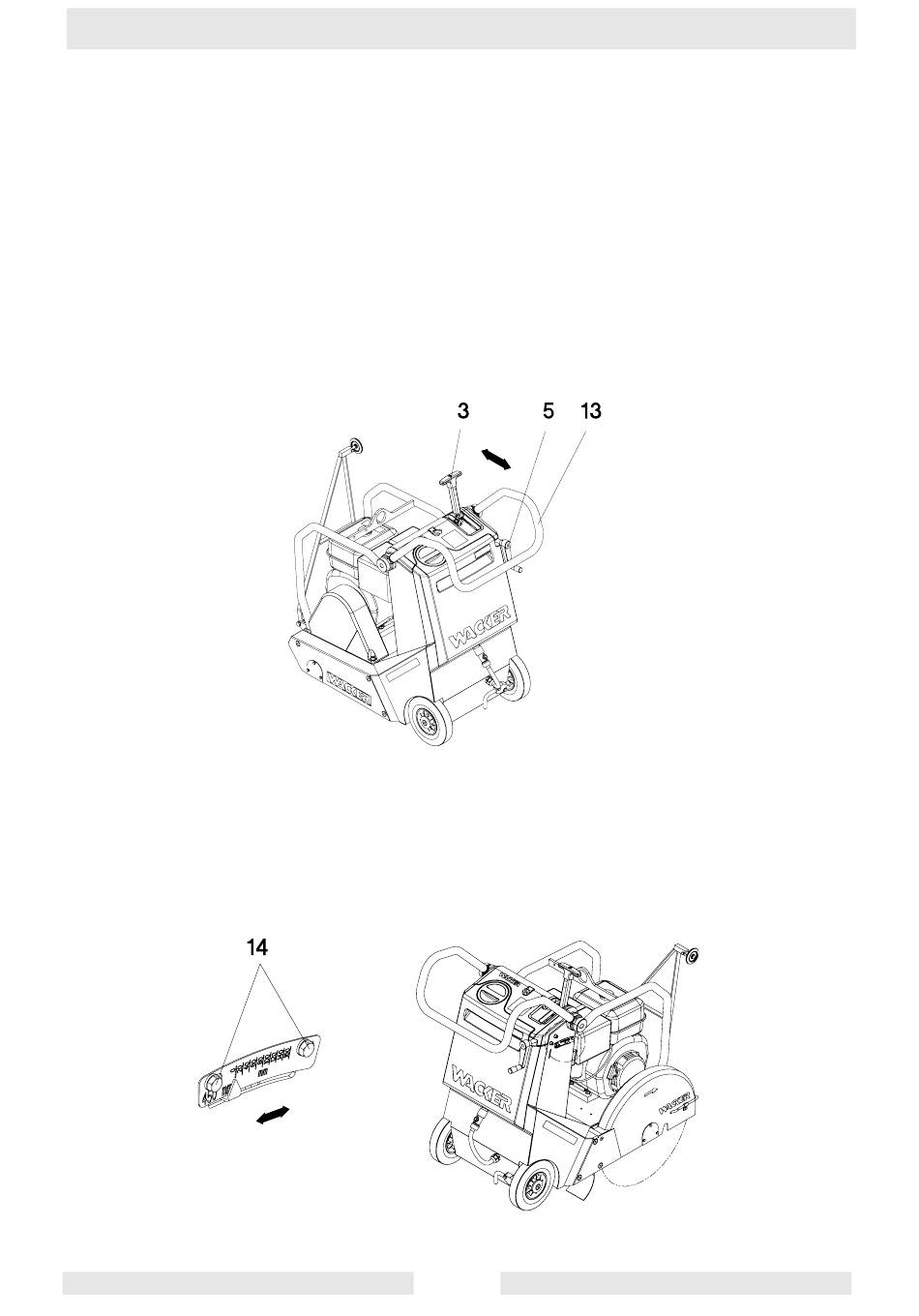

Place the quick-lift lever in the forward lock-in position; this will enable you to exactly adjust the cutting depth
by turning the crank (5). One turn of the crank drops the cutting disc by 5 mm (cutting depth).
It is possible to choose between two lock-in positions of the quick-lift-lever (3) at any time:
1. The forward lock-in position allows cutting with an individually set cutting depth.
2. The cutting disc is never engaged in the material when the quick-lift lever is in the back lock-in position. The
floor saw can now be easily moved from one working area to the next.
Operation of the quick-lift lever:
1. Loosen lock with the guide handle (13) and press down T-handle.
2. Push T-handle all the way forwards or, as the case may be, backwards.
3. Let go of T-handle. The handle will lock automatically.
Each floor saw has been equipped with a metric and an inch scale; the scale is matched with the respective
standard cutting disc.
To set the scale proceed as follows:
1. Push quick-lift lever (3) fully forwards.
2. Turn the cutting depth crank (5) until the cutting disc barely starts touching the floor.
3. Loosen the screws (14) and move the arrow until it coincides with the "0" mark of the scale.
4. Retighten the screws (14).
