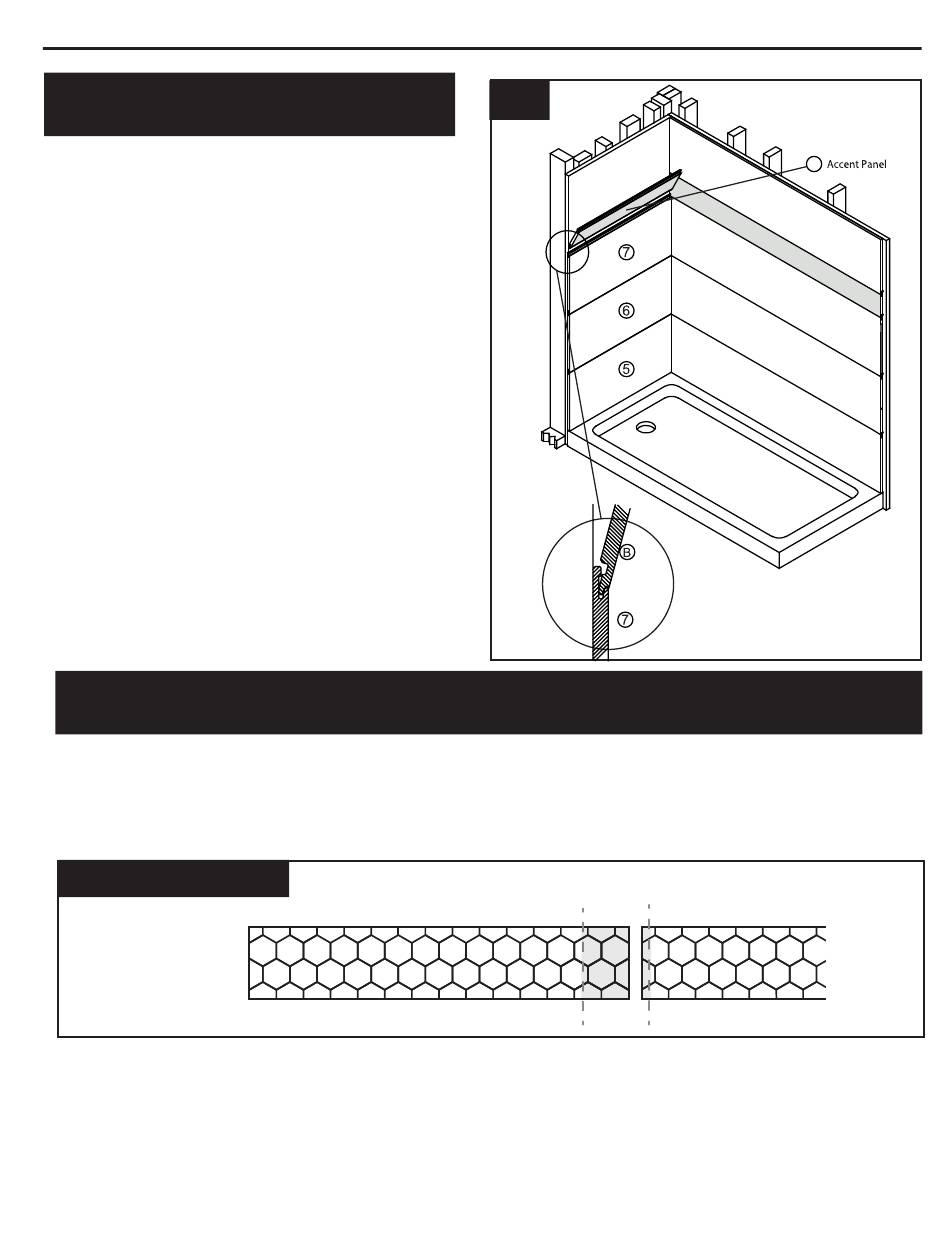

ACCENT PANEL INSTALLATION INSTRUCTIONS / STEP 12
INSTALLATION FOR MODEL#
RFL603696-SSS / RFL603696-CSS
STEP 12: INSTALL LEFT SIDE
ACCENT PANEL (B) SUBWAY
12.1a. Locate Panel (B) Left Side Accent
Panel and lay it down on a flat surface.
12.1b. Based on your measurements from
Step 1 (How to Measure), make any
required plumbing cut-outs according to
the instructions in Step 2 (How to Cut).
Note: If you are not using the full
width of the left side panels, cut
the right/inside end of the panels as
the back corner will be caulked later
in the installation and any flaws in the
cut can be hidden in the process.
(Do not cut off the interlocking
feature, adjust width only).
12.1c. Repeat Steps 4c. - 4e.
INSTALLATION FOR MODEL#
RFL603696-SMH (HEXAGON ACCENT)
STEP 12.2: INSTALL BACK ACCENT PANEL (A) HEXAGON
NOTE: Your kit includes: (1) 60" Hexagon Back Accent Panel and (2) 42" Hexagon Side Panels -
Additional panel length to allow for trim adjustments. Hexagon Accent Panel (A), Panel (B), and
Panel (C) install in a continuous horizontal pattern.
12.2 EXAMPLE
12.2a. Locate Panel (B) Left Side Accent Panel and lay it down on a flat surface.
12.2b. Based on your measurements from Step 1 (How to Measure), trim any necessary
adjustments from the Right/Inside edge of Panel (B). The amount trimmed will mirror
the Hexagon pattern on Center Back Panel (A).
(Do not cut off the interlocking feature, adjust width only).
12.2c. Repeat Steps 4c. - 4e.
12.1
LEFT SIDE
Accent Panel (B)
42"
14
CENTER BACK
CUT
CUT
Accent Panel (A)
B
