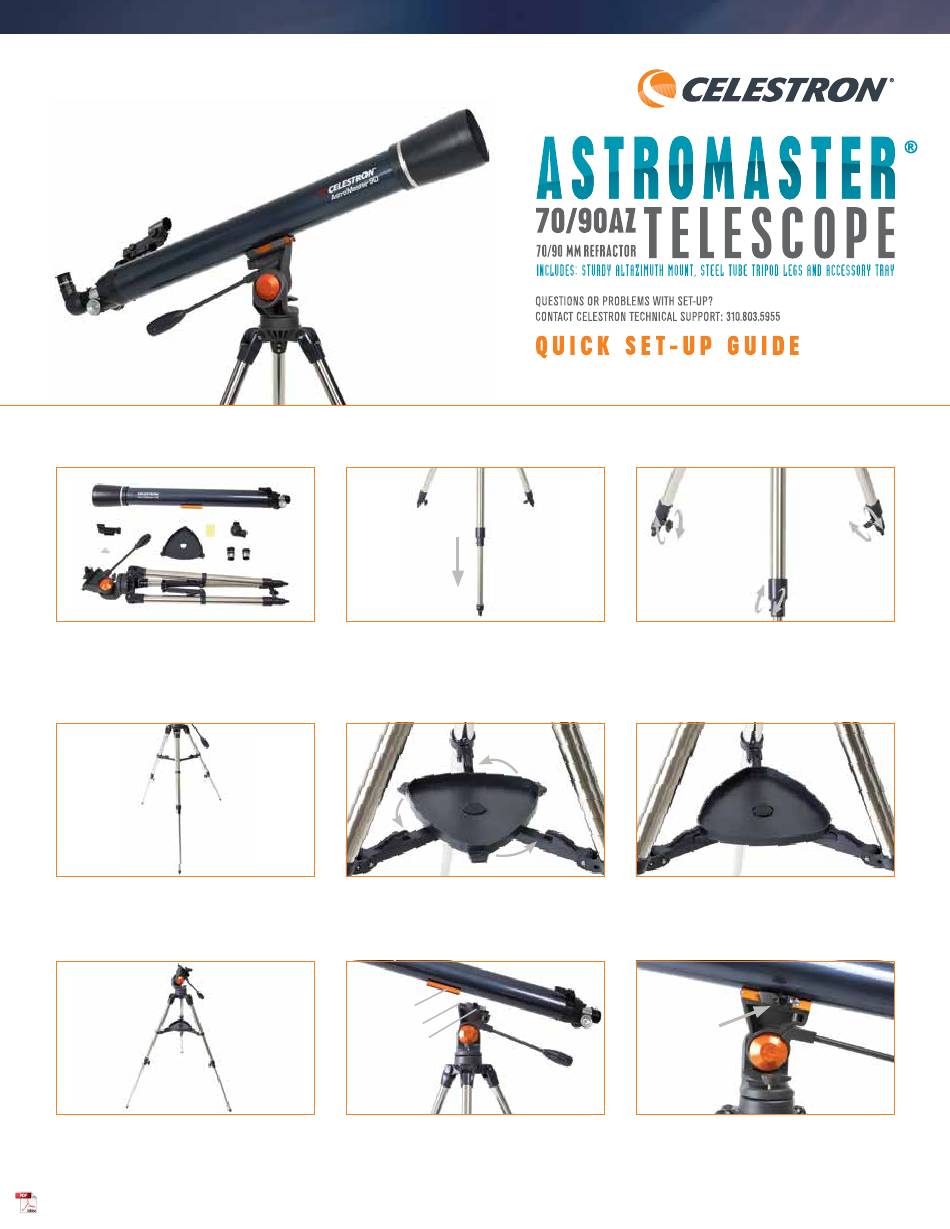

Celestron ASTROMASTER 70AZ Guide De Démarrage Rapide

1
Your AstroMaster 70/90AZ includes: optical tube, StarPointer
finderscope, pre-assembled tripod with center leg brace and
altazimuth mount attached, two eyepieces, erect image diagonal,
accessory tray, lens cloth, battery, owner's manual, and a bonus
Astronomy software.
4
All three legs should be the same length to provide a level platform
for the telescope.
7
Here is how the fully assembled tripod and mount should appear.
ITEM #21061/21063
2
To set up the tripod, spread the legs outward until they are fully
extended. Extend each of the three tripod legs down 6-12".
5
To attach the accessory tray, line up notches and turn clockwise
until tray tabs lock into place with the tripod brackets.
8
Dovetail
Mount
Fastening
Screws
Next slide telescope tube into the mount. Be sure to back out
fastening screws to allow enough clearance for the dovetail.
3
Use the three tightening screws located at the bottom of each leg
to secure the extended legs in place.
6
Properly assembled, the accessory tray should appear as
pictured above.
9
Center dovetail in the mount and tighten fastening screw. For
added security tighten the angled lock down screw next to the
fastening screw.
ENGLISH
