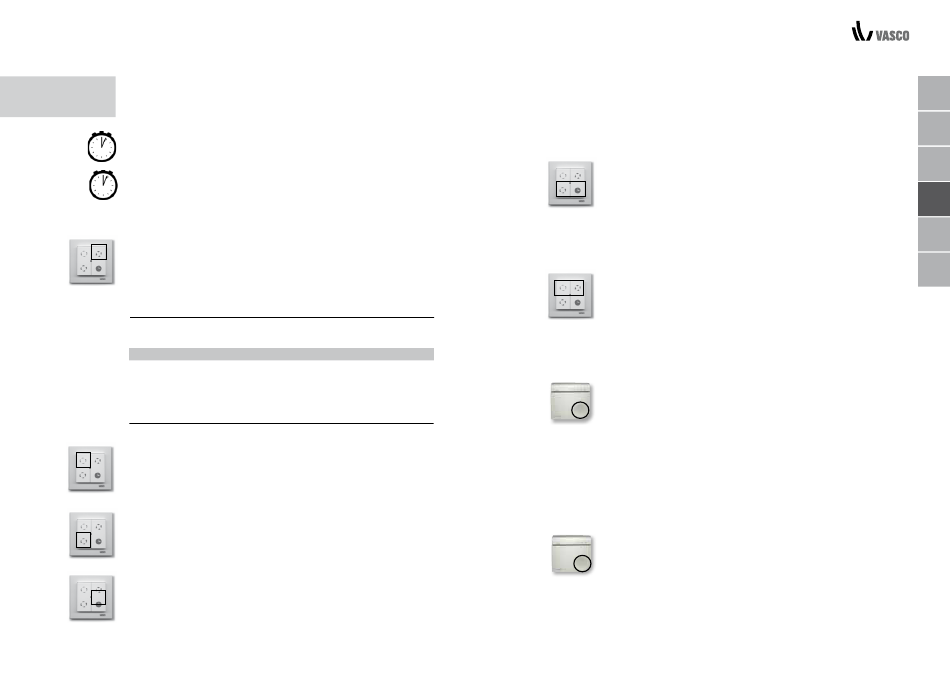

The position switch is bound to the ventilation unit as standard.
PUTTING INTO
As standard, the factory sets the unit at a 60 m
OPERATION AND
If you want another air flow rate, you can adjust this as described below.
INITIAL SETTING
You can connect the power supply once the unit is installed.
The ventilators will start to rev briefly (approx. 4 seconds) after 1 minute and
30 seconds.
After connecting the unit to the power supply, you have 10 minutes to set the
air quantity and to connect an additional optional position switch.
Setting the air quantity
Press the Position 3 button for minimum 3 seconds and release it as soon as
the LED in the center of the switch gives a series of light signals, which will
indicate the set air quantity. The LED will light up orange once.
LED indication on the switch
1x green
2x green
1x orange (standard)
2x orange
3x orange
1x red
2x red
Decreasing the air quantity:
Press the Position 1 button once. The LED indication will change according
to the table above. By pressing the Position 1 button repeatedly at 1 second
intervals, the air quantity will decrease further.
Increasing the air quantity:
Press the Position 2 button once. The LED indication will change according
to the table above. By pressing the Position 2 button repeatedly at 1 second
intervals, the air quantity will increase further.
Press the Position 3 button for minimum 3 seconds to confirm the modification.
If you do not touch the RF switch for 1 minute, the modifications are saved/
stored automatically.
12 PUTTING INTO OPERATION & INITIAL SETTING
3 /h air flow rate.
D60
50 m /h
3
55 m 3 /h
60 m /h
3
65 m /h
3
70 m 3 /h
75 m /h
3
80 m /h
3
Binding and unbinding the additional optional RF switches:
As standard, the factory binds the included switch to the ventilation unit.
A maximum of 20 switches can be connected to the system.
Binding and unbinding the additional optional RF switch (11VE20012):
Binding:
Turn off the power on the ventilation unit, then turn the power back on.
Subsequently, the ventilation unit will look for new switches during the next 10
minutes. Press the Position 2 and Timer buttons simultaneously for minimum 3
seconds. If the connection is successful, the LED in the center of the switch will
light up green twice.
Tip: You can connect a single switch to maximum 3 units.
Unbinding:
Turn off the power on the ventilation unit, then turn the power back on.
Subsequently, the ventilation unit will disconnect the switches during the next 10
minutes. Press the Position 1 and Position 3 buttons simultaneously for minimum
3 seconds. The LED on the switch will light up orange twice to indicate that the
switch is disconnected.
Binding and unbinding the additional optional CO2 RF switch (11VE20013):
Binding:
Turn off the power on the ventilation unit, then turn the power back on.
Subsequently, the ventilation unit will look for new switches during the next
10 minutes. Subsequently, click the sensor on the bottom plate to turn on the
power supply.
During minimum 3 seconds, touch the operation zone in the bottom right-hand
corner. You should release the operation zone as soon as all LEDs start flashing.
If the connection is successful, the LED at the left-hand top corner will light up
green twice and a LED will light up in the top right-hand corner to indicate the
current position of the CO2 RF switch.
Tip: You can connect a single switch to maximum 3 units.
Unbinding:
Briefly interrupt the power supply to the switch by clicking it out of and back into
the base plate. The switch will disconnect the ventilation units during the next 10
minutes. During minimum 10 seconds, touch the operation zone in the bottom
right-hand corner. You should release the operation zone as soon as all LEDs
light up green for the second time. This will disconnect all the connected units.
The LED on the switch will light up red four times to indicate that the units are
disconnected.
PUTTING INTO OPERATION & INITIAL SETTING 13
