4 INSTALLATION MANUAL
FOR THE INSTALLER
The ventilation unit is delivered on a pallet and is packaged in a box.

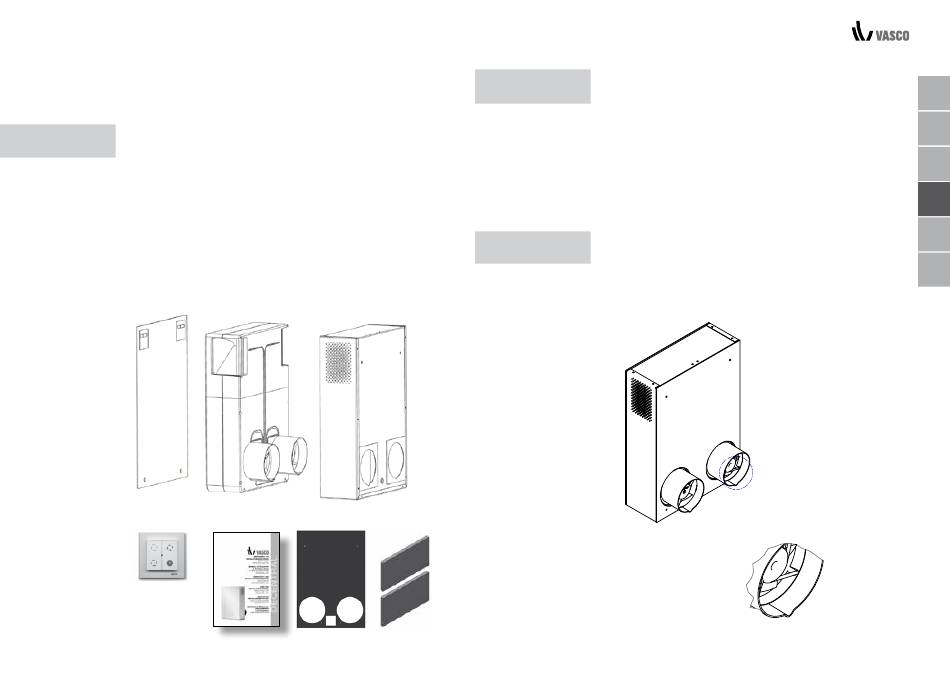

CONTENTS OF THE
PACKAGING Remove the packaging and check the contents.
The contents consist of:
- 1 Ventilation unit
- 1 Unit casing
- 1 Front panel
- 1 Wireless position switch
- 1 User / Installation manual
- 1 Mounting manual
- 1 Drill template
- 2 closing elements
The unit should be transported and unpacked with the utmost care.
Make sure that the packaging material is disposed of in an environment-
friendly manner.
Wireless position
switch
08 INSTALLATION MANUAL FOR THE INSTALLER
User / Installation
Drill template Closing elements
manual
To determine whether installing the ventilation unit is possible in a certain room,
INSTALLATION
CONDITIONS you have to take the following into account:
• The area must be frost-proof.
• Installation should be executed according to the general and locally
applicable safety and installation regulations for ventilation, electricity,
sewerage, etc. as well as the regulations described in this manual.
• The following facility should be available in the area:
− 230V 10%, 50Hz, single phase
• The unit must be electrically connected with cable H05VV-F 3G2,5.
• Building dust must not be allowed to penetrate the ventilation unit.
CONDENSATION Holes must be drilled under a gradient of 2-5 degrees to guarantee
DISCHARGE
proper drainage. The installer should verify that the unit is not mounted
above a passageway (door). During the winter, the condensed water
can result in icicles or spots of slippery ice, creating a risk of tripping.
1
A
B
C
D
INSTALLATION CONDITIONS / CONDENSATION DISCHARGE 09
