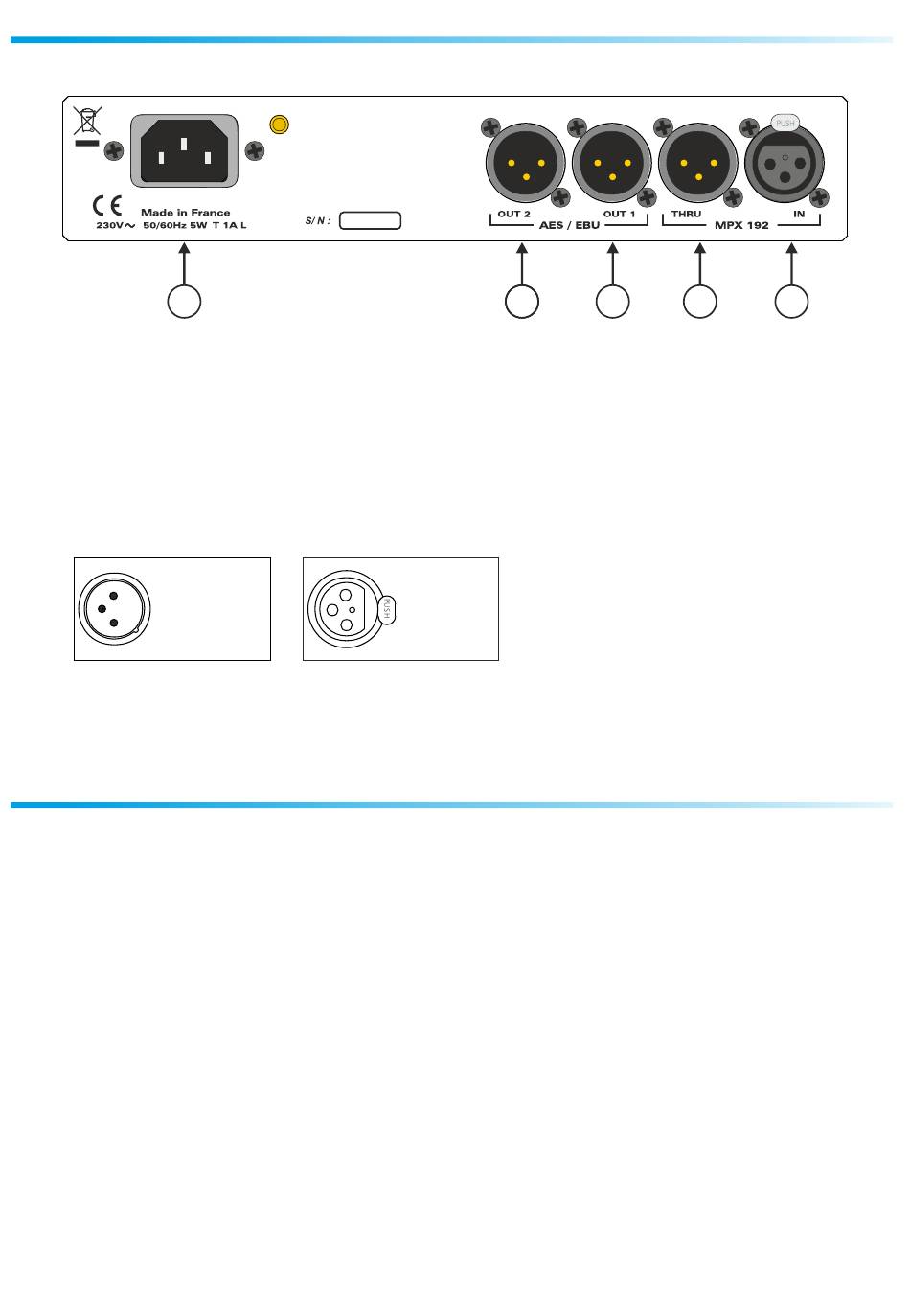

REAR PANEL
A -
XLR 3-pin female socket: digital input in MPX192 format.
B -
XLR 3-pin male socket: "TRHU" output; MPX192 amplified and reshaped signal output.
C -
XLR 3-pin male socket: digital output 1, in AES/EBU 48 KHz format (left/right).
D -
XLR 3-pin male socket: digital output 2, in AES/EBU 48 KHz format (left/right).
XLR 3-pin male plug
1
3
2
E - IEC mains socket for power supply.
INFORMATION
Warning
The power supply of the DEM113 has a power supply connector (2-pole + ground). The earth must
be connected to the power supply network.
Never operate this equipment without the ground connexion.
,
Make sure of the quality of the earth before starting up.
,
In the event of noise or hum when connecting the device to an existing PA system, never interrupt
,
the protective earth connector, but use galvanic isolation equipment with transformers.
Never disassemble the equipment without taking the precaution of unplugging the power cord.
,
Avoid exposure to excessive temperatures.
,
Never expose the equipment to rain, snow or moisture.
,
DEM113 complies with:
EN60065, EN55013, EN55020, EN60555-2, and EN60555-3, according to 73/23/EEC, 89/336/EEC
and 93/68/EEC.
Rami
E
1: Masse châssis
2
2: Signal
3
3: Signal
1
D
XLR 3-pin female plug
1: Earth
2: Signal
3: Signal
13
C
B
A
DEM113
