Burner Assembly - Regency U32SE Guide D'installation Et D'utilisation

PARTS LIST
Part # Description
1) 911-004 Valve - SIT NG
911-005 Valve - SIT LP
2) 904-430 Burner Orifi ce Nat. Gas #42
904-163 Burner Orifi ce LP # 54
3) 425-010 Pilot Holder
4) 434-031 Pilot Shield Hood
5) 425-007 Valve Tray
425-574E/P Valve Assembly NG
425-576E/P Valve Assembly LP
6) 425-008 Sunrise burner bracket
7) 420-201 Right Valve Bracket
8) 420-202 Left Valve Bracket
38

BURNER ASSEMBLY

9) 911-006
911-007
11) 910-336
12) 910-030
13) 425-525
*Not available as a replacement part.
8
Pilot Assembly 3 Flame - NG
Pilot Assembly 3 Flame - LP
Thermocouple
Electrode (not shown)

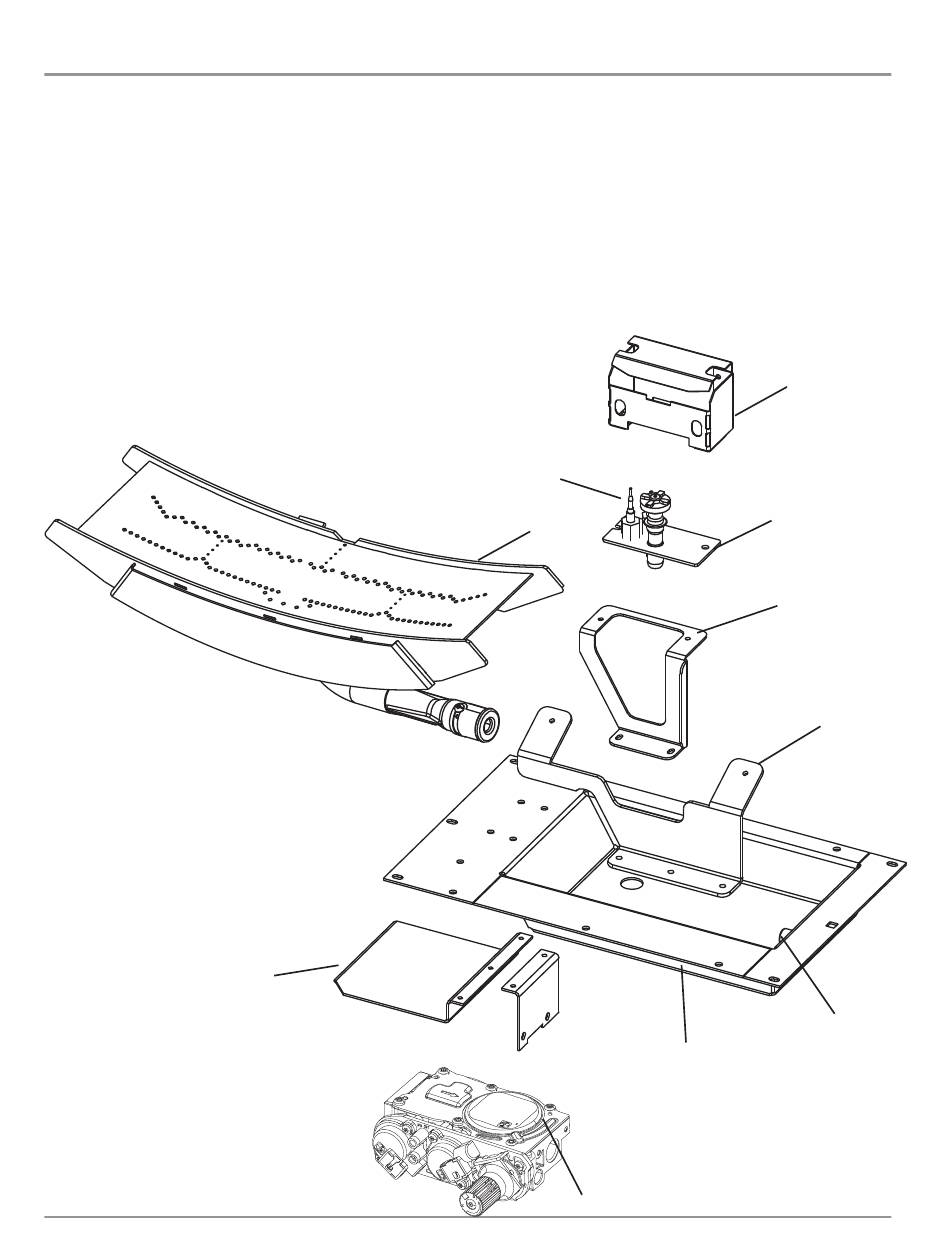

U32SE burner assembly
11
13
1
4
9
3
6
2
5
U32SE-5 Foyer à gaz encastrable
