Leakage test
Cleaning
Limits
Hysteresis
Solvent libary
Actions after stop
Actions after start

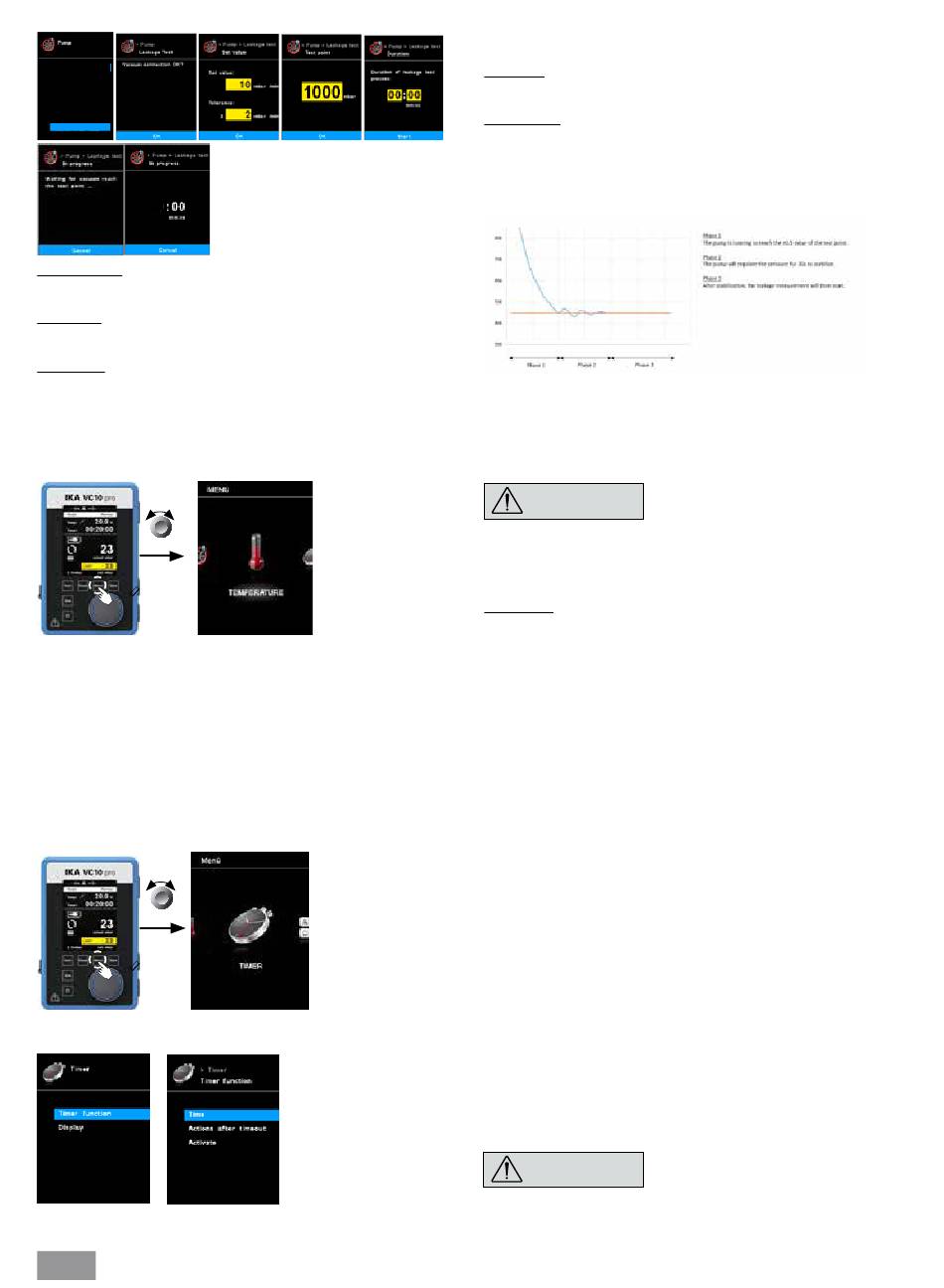

Leakage test
01
Leakage test: User to confirm the vacuum connection. Press ok if
the connection is good.
Set Value: User to input the required leakage rate with tolerance.
Default leakage rate is 3mbar with tolerance 1mbar.
Test point: User to input the pressure which the leakage test will
Temperature (VC 10 pro)
Temperature sensor
In the "Temperature" menu the user can specify that the tempera-
ture sensor is displayed on the display/working screen. A tick ()
shows that the option is activated.
The precondition for this is that a temperature sensor is connec-
ted to the vacuum controller. If no temperature sensor is con-
nected, or an error is present or the temperature rises above
350 °C, three dashes are shown as the temperature value.
Timer
Timer functions
In the "Timer" menu the user can specify that the timer is dis-
played on the display/working screen. A tick () shows that the
42
be executed at. Default value is 500 mbar.
Duration: User to input duration of the leakage test. Default value
is 1 minute.
In progress: The pump will start running to reach the test point.
(Graph below: Phase 1 and 2)
The leakage measurement will start once the pressure has reached
the interested test point. Meanwhile, the timer will start counting
down from the pre-set duration. (Graph below: Phase 3)
Please comply with the temperature
NOTICE
measurement range of the external
temperature sensor specified in the
"Technical data" section. The tem-
perature display can be in either °C
or °F (see the "Settings" menu).
Calibration
In order to calibrate the external temperature sensor, it must first
be connected to the vacuum controller. The temperature sensor
is then immersed in a vessel with water, for example. The water
temperature is determined using a second, already calibrated tem-
perature measuring device. The measured temperature must then
be entered in the menu under "Temperature calibration". Once
the entry has been confirmed with "OK", the external temperature
sensor is calibrated.
option is activated. This setting allows the user to specify the actu-
al time for the evacuation procedure.
A default time can also be set for the timer. This setting allows the
user to start evacuation for a standard time. The device can emit a
signal (beep) after the set target time has elapsed.
The user can stop the evacuation
NOTICE
procedure before expiry of the set
time. In this case the countdown
of the timer is interrupted.
