2.0 Installation
2.1 Termination Cap Framing
IMPORTANT: Termination framing MUST be level so the termi-
nation cap is level upon installation. This is required so precipi-
tation does not build up inside the termination cap.
Find the desired location of exterior heat transfer kit termina-
tion. Refer to FIGURE 2.1 for dimensions. For horizontal termi-
nation cap clearances, see FIGURE 2.3.

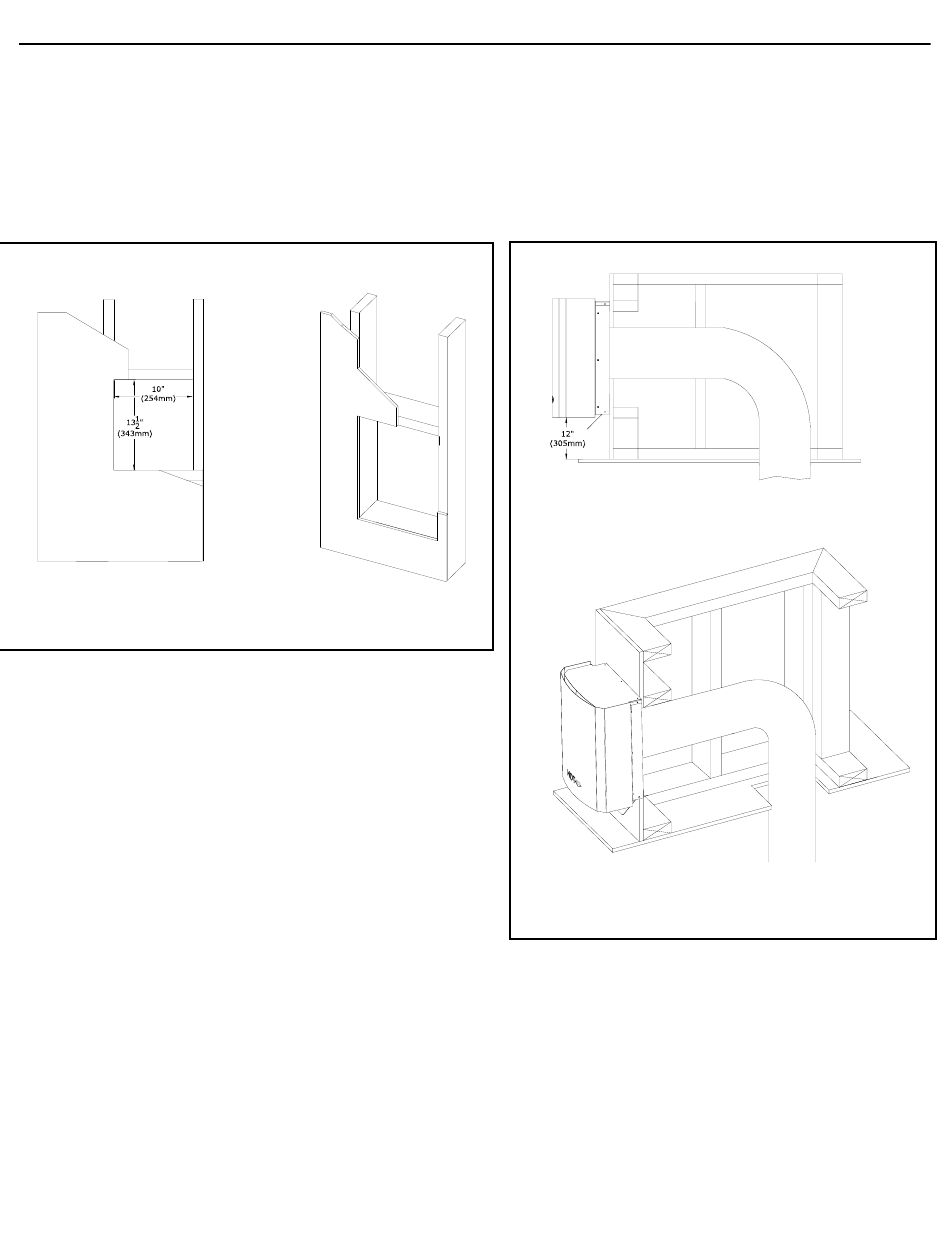

Figure 2.1, Framing Dimensions
HTK-EXT
2.2 Roof Termination Framing
If the #HTK-EXT will terminate on a flat roof, construct an
enclosure similar to the one shown in FIGURE 2.2.
Figure 2.2, Rooftop Enclosure Framing
