INSTRUCTION MANUAL (Translation from the original Spanish)
8. PRODUCT DISPOSAL
When it is time to dispose of the pump, it does not
contain any toxic or polluting material. The main
components are properly identified for selective
disposal.
Disposal of this product or parts of it must be carried
out in an environmentally friendly manner. Use your
local waste collection service.

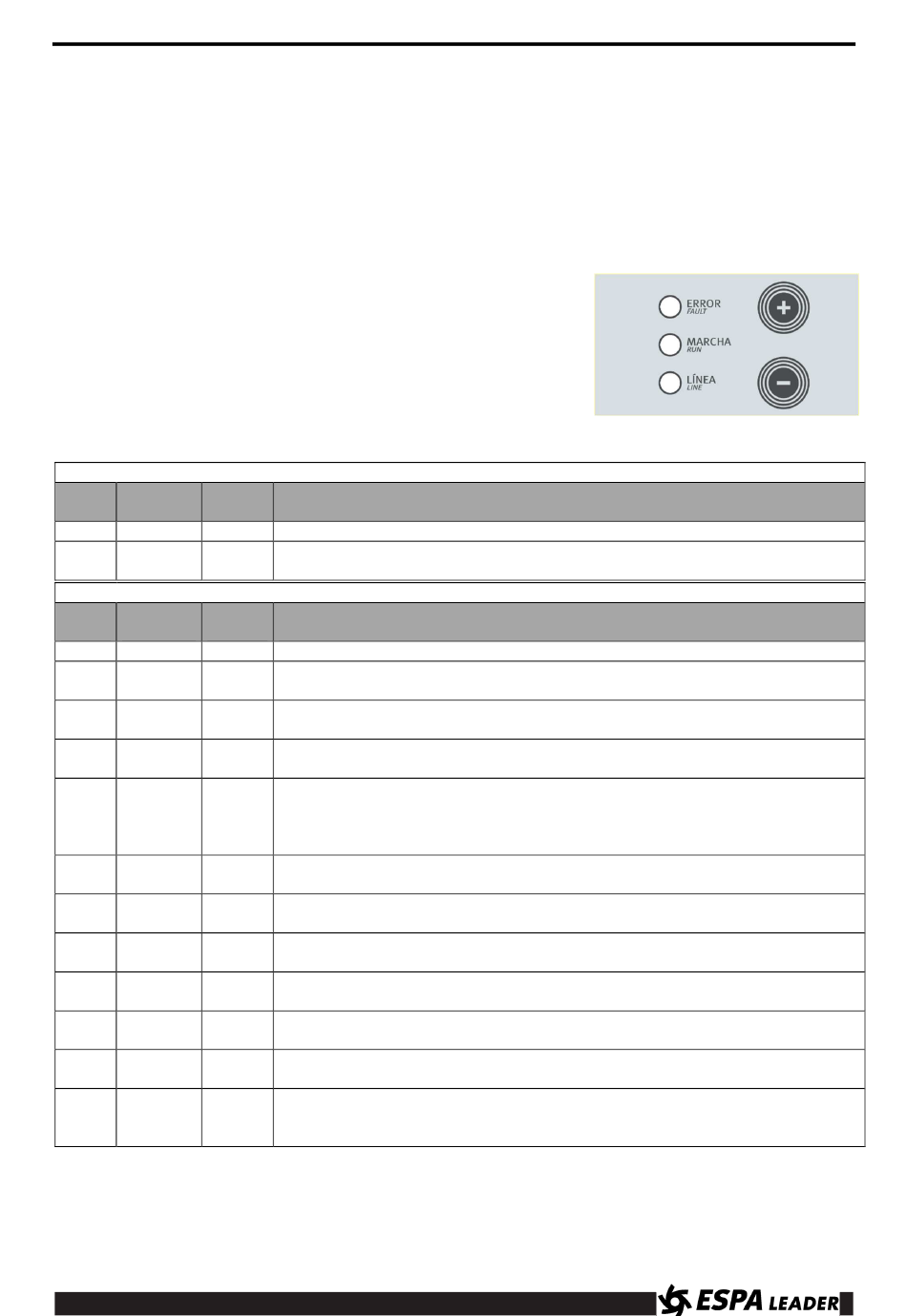

10. LED INDICATORS
When the equipment is switched on, a sequence is initiated:
1. The LEDs light up twice consecutively.
2. The unit starts up.
The possibilities of the LED'S are
0 = Led OFF
1 = Led ON
2 = Slow flashing LED (2s. On/2s. Off)
3 = Fast flashing LED (1s. On/1s. Off)
4 = Led flashing very fast (0.2s. On/0.2s. Off)
LÍNEA
MARCHA
ERROR
FAULT Equipment Status
LINE
RUN
1
1
1
3
LÍNEA
MARCHA
ERROR
FAULT Equipment status
LINE
RUN
1
0
1
2
1
0
1
0
1
3
1
0
1
2
1
2
1
4
1
4
2
0
1
0
Led's position when the pump is running
0
Normal operation. Pump is running.
Flow rate too low. If it remains in this state for more than 10 sec. the pump
0
will stop.
Led's position when the pump is stopped
0
Normal operation. The pump is waiting for a flow request.
Lack of tank level. When the water level recovers, the pump starts
0
automatically.
Dry running error. The pump has stopped due to lack of water and the
3
equipment is cycling through the automatic restart attempts. .
Dry running alarm. The equipment is stopped due to lack of water until the
1
manual reset is carried out.
Lack of pressure alarm. If the unit detects water circulation and the pressure
is below 0.3 bar. The pump stops. It must be reset manually.
3
1 0 4 Pressure transducer alarm. If communication is restored, the unit starts
up automatically.
Pressure transducer alarm. If communication is restored, the unit starts up
4
automatically.
Current error. The pump has stopped due to an overcurrent and the
2
equipment is cycling through the automatic reset attempts (4).
Current alarm. The equipment is stopped due to overcurrent until the manual
1
reset is carried out.
Short circuit error. The pump has stopped due to an overload and the unit is
4
making the cycle of attempts for automatic reset (4).
Short circuit alarm. The equipment is stopped due to overloads until the
1
manual reset is carried out.
Voltage error. When the power supply voltage recovers within the established
2
margins, the pump will start up automatically.
Internal alarm. Electronic communication failure. Disconnect the pump from
2
the power supply and reconnect by pressing (+) and (-) simultaneously.
Depending on the fault, the equipment will restart or remain in fault mode.
9. TECHNICAL DATA
Liquid temperature:..................4.ºC - 40ºC
Ambient temperature:............ . 0ºC - 40ºC
Storage temperature:.............-10ºC - 50ºC
