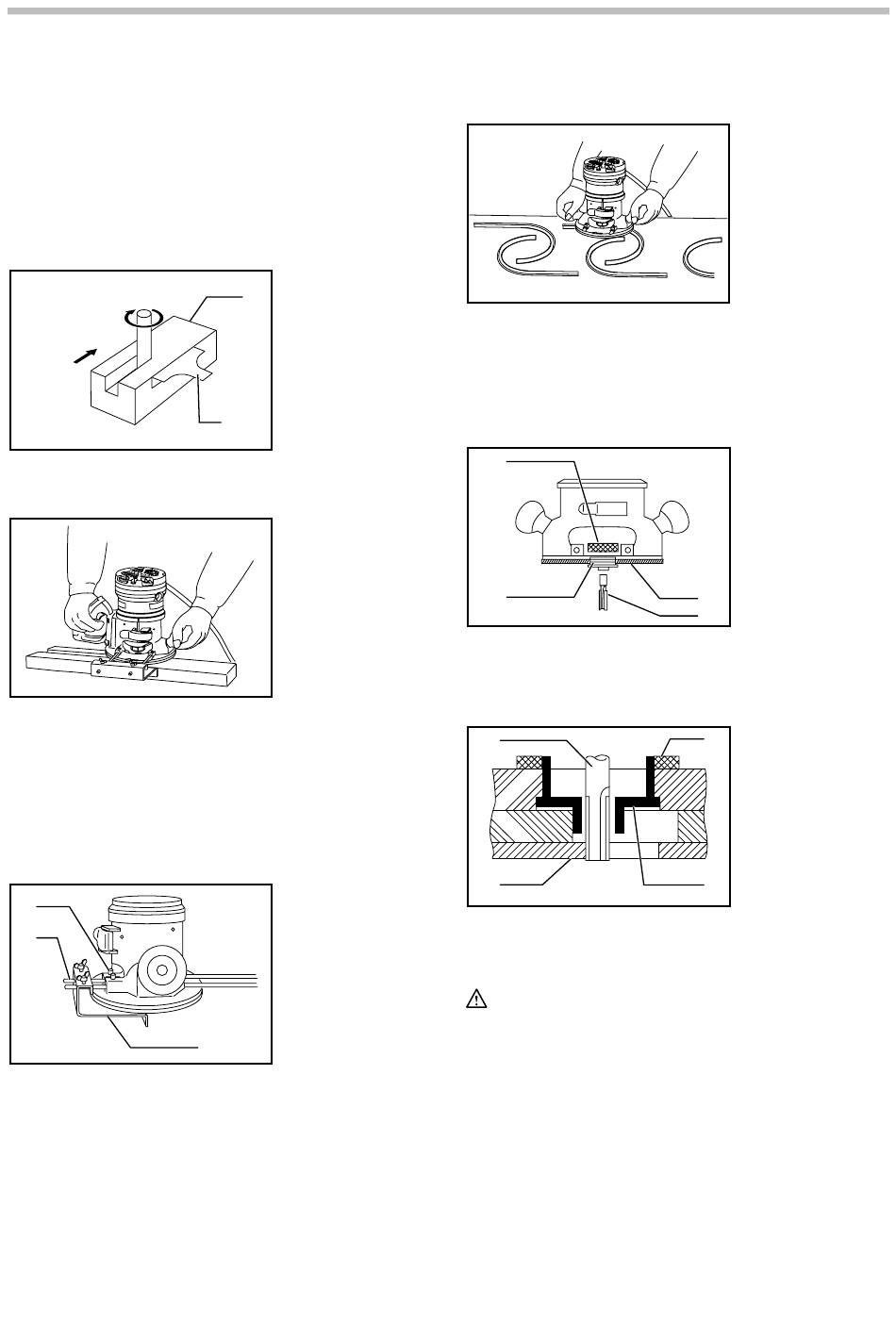

Before beginning the cut on the actual workpiece,
it is advisable to make a sample cut on a piece of
scrap lumber. This will show exactly how the cut
will look as well as enable you to check
dimensions.
When using the straight guide, be sure to install it
•
on the right side in the feed direction. This will help
to keep it flush with the side of the workpiece.
2
1
001985
Straight guide (optional accessory)
003678
The straight guide is effectively used for straight cuts
when chamfering or grooving.
To install the straight guide, insert the guide bars into
the holes in the tool base. Adjust the distance between
the bit and the straight guide. At the desired distance,
tighten the hex socket bolts to secure the straight guide
in place.
1
2
003682
When cutting, move the tool with the straight guide flush
with the side of the workpiece.
1. Feed direction
3
2. Bit revolving
direction
3. Workpiece
4. Straight guide
4
1. Hex socket
bolts
2. Guide bar
3. Straight guide
3
Templet guide (optional accessory)
003689
The templet guide provides a sleeve through which the
bit passes, allowing use of the tool with templet patterns.
To install the templet guide, insert the templet guide in
center hole in the base plate and secure in place with
the lock nut.
1
2
003693
Secure the templet to the workpiece. Place the tool on
the templet and move the tool with the templet guide
sliding along the side of the templet.
1
2
3
4
003696
MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and
•
unplugged before attempting to perform inspection
or maintenance.
Never use gasoline, benzine, thinner, alcohol or
•
the like. Discoloration, deformation or cracks may
result.
7
1. Lock nut
2. Templet guide
3. Base plate
4. Router bit
3
4
6 1. Router bit
2. Base
3. Templet
4. Workpiece
5. Templet guide
6. Lock nut
5
