Fireplace Installation (continued)
Electrical
120V Installation - Direct
Wire
CAUTION: Use the appropriate
wire to meet local and national
electrical codes for rated power
consumption.
To 120V direct wire:
1. Cut the wire to an appropriate
length.
2. Connect the L wire from the
unit to the live wire from the
power supply with a wire nut.
3. Connect the N wire from the
unit to the neutral wire from the
power supply with a wire nut.
4. Connect the G wire from the
unit to the ground wire from the
power supply with a wire nut
or attach the grounding wire
Figure 6
WHITE - N
BLACK – L1
GROUND - G
10
to the cover with the provided
grounding screw, by placing the
wire in-between screw and lock
washer and tighten (Figure 3).
5. Ensure that all wires are secure
and do not protrude past the
flame panel, so as not to be
visible after final assembly.
6. Continue to the final assembly
instructions.

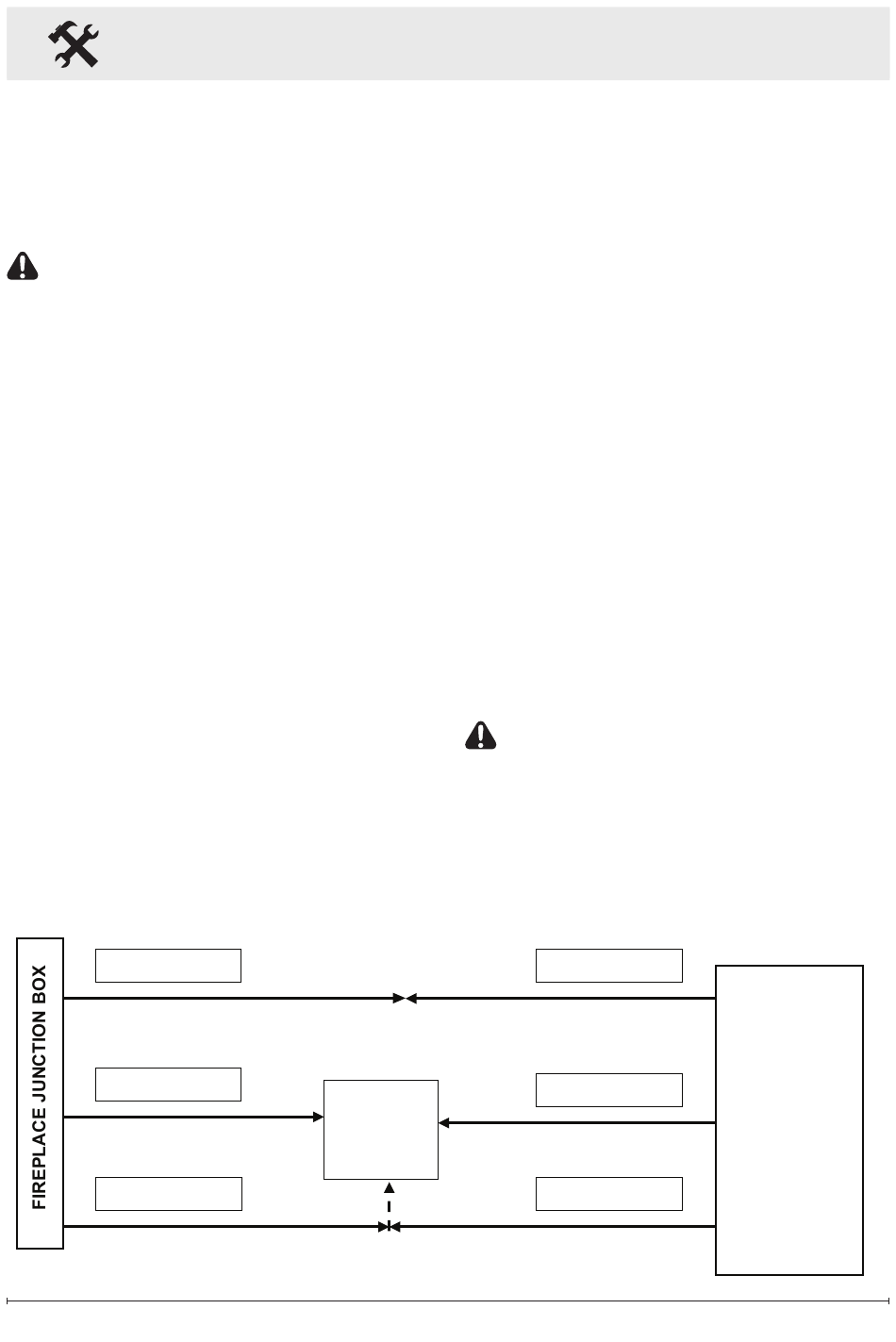

120V Installation - Wall
Switch
!
NOTE: Use a single pole, single
throw (On/Off) wall switch that is
rated for a minimum of
15 amps.
CAUTION: Use the
appropriate wire to meet local
and national electrical codes
for rated power consumption.
WALL
SWITCH
WHITE – N
BLACK – L1
GROUND - G
www.dimplex.com
120 V
POWER
SUPPLY
(BREAKER
PANEL)
