In the case of a unit that has two inputs for each MPPT, (17
to 100 kW units), connect identical strings to both inputs
as indicated in the Fig. below:
Solar
field A
JUNCTION BOX

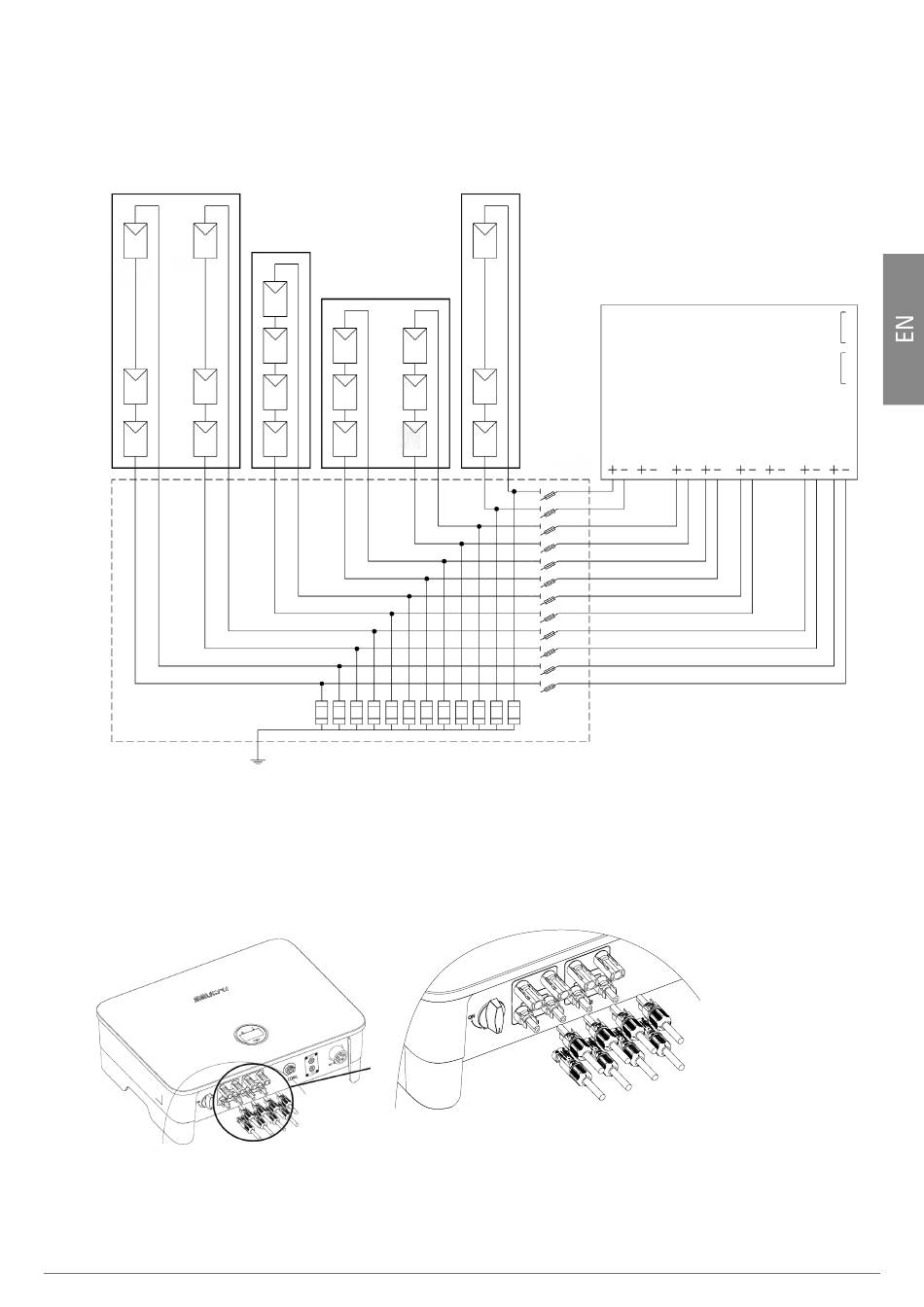

Fig. 29. Connection of several solar fields and 4 MPPTs.
Insert the positive and negative connectors into the respective
4.
DC input terminals of the inverter. If the terminals are properly
connected, they will make a clicking sound, as shown in Fig. 30,
Fig. 31 and Fig. 32:
Fig. 30. Connecting the DC input terminals of units with
2 MPPTs.
USER MANUAL
Solar Solar
field B field C
SPD
Solar
field D
EQUINOX_2
MPPTs1
FUS
4 MPPTs
1
Port 1 2
3
1
Port 2 2
3
USB / WiFi
L1
L2
L3
N
MPPT2 MPPTs3 MPPTs4
EQX2 SOLAR INVERTERS CONNECTED TO THE GRID
