PH10M-iQ PLUS installation and user's guide
www.renishaw.com

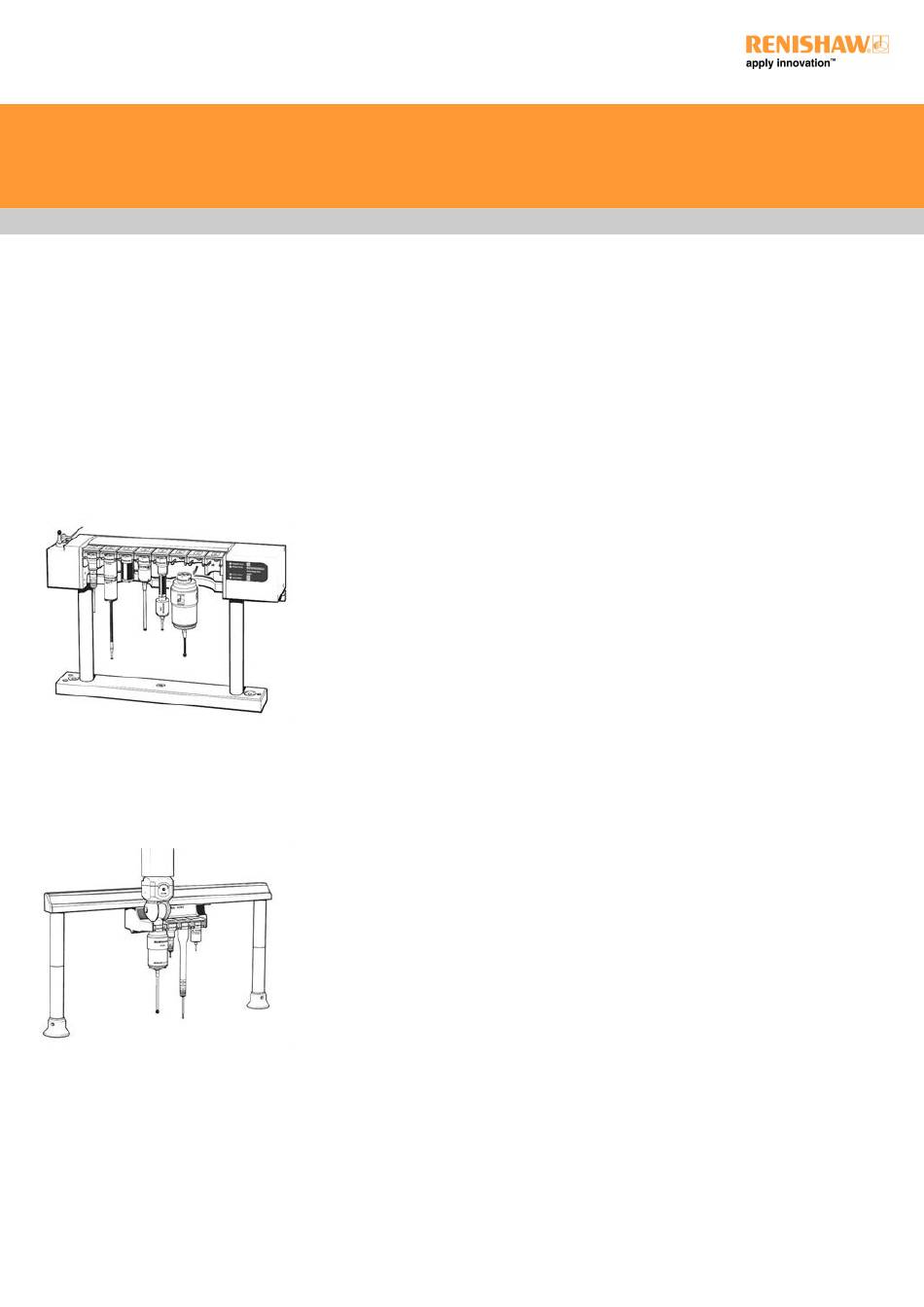

Autochange racks
Renishaw's autochange racks shown are probe exchange systems available for use with PH10M-iQ PLUS. Mounted within the CMM's working
envelope, the autochange system facilitates fast, automatic probe exchange without the need for requalification. Fast 'probing to probing'
cycles are achieved by the head docking one probe and selecting another. Once calibrated the highly repeatable autojoint removes the need
to requalify after each exchange.
ACR1
ACR1 is a fully integrated autochange system with eight ports. The ACR1 can be mounted horizontally or vertically and has the ability to
change probes and extension bars.
ACR3
ACR3 is a passive modular autochange rack with four ports and is driven by the motion of the CMM. Two ACR3s can be linked to provide an
eight port system. The ACR3 is mounted on the horizontal Renishaw MRS (modular rack system).
