PH10M-iQ PLUS connection of probes and
extensions
PH10M-iQ PLUS autojoint connection
PH10M-iQ PLUS heads use a Renishaw autojoint which is a highly repeatable kinematic joint. One half is integral to the head; the other half
forms part of the adaptor, extension bar or probe.
Locking and unlocking the autojoint is carried out either manually, using the autojoint key, or automatically using the Renishaw autochange
rack systems (ACR1 or ACR3). In both cases, the connection's repeatability eliminates the need for probe requalification after exchange.

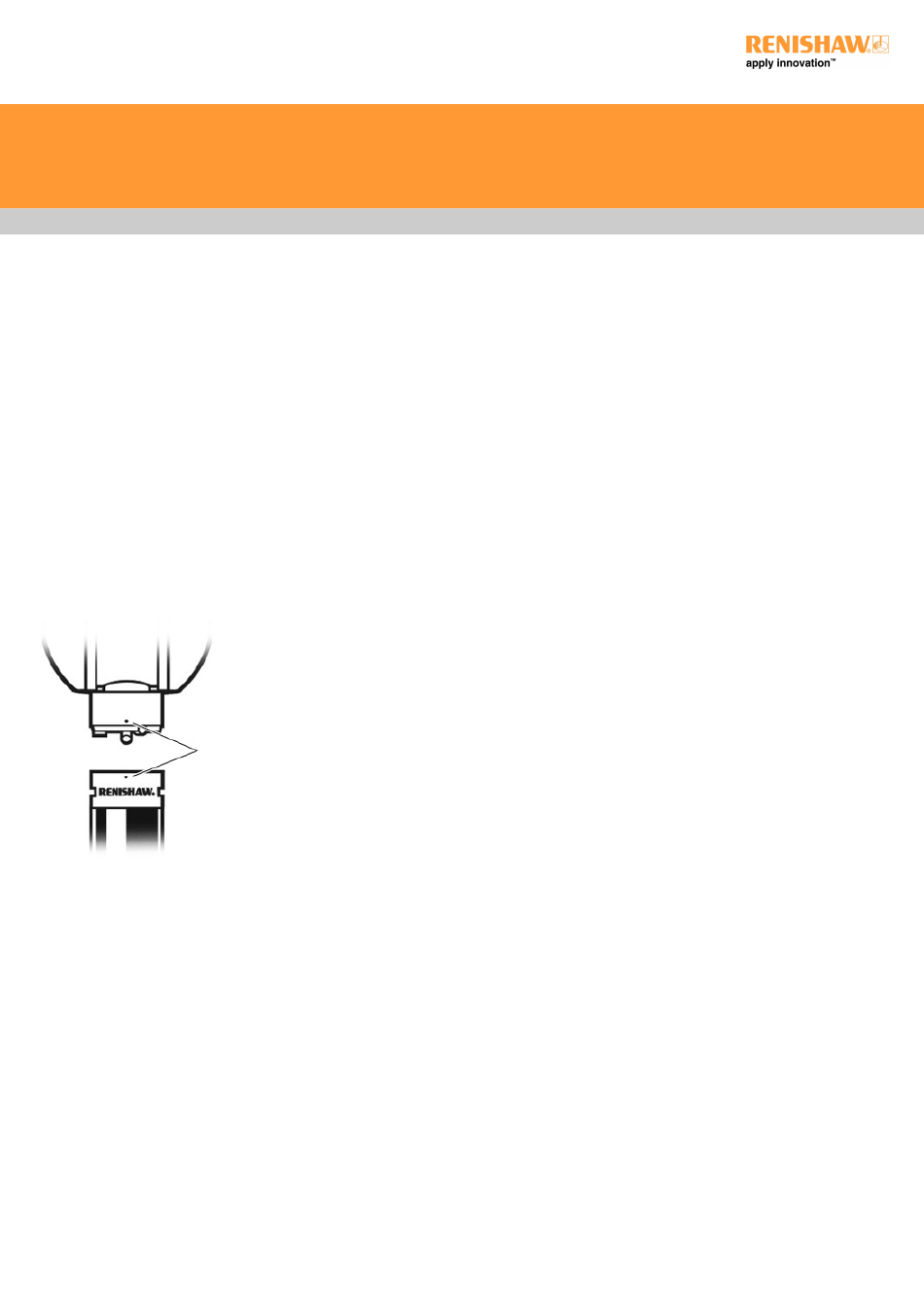

If an extension bar, adaptor or probe needs to be attached to the head manually, ensure that the location dots shown in the image below are
aligned.
