Installation
Alignment

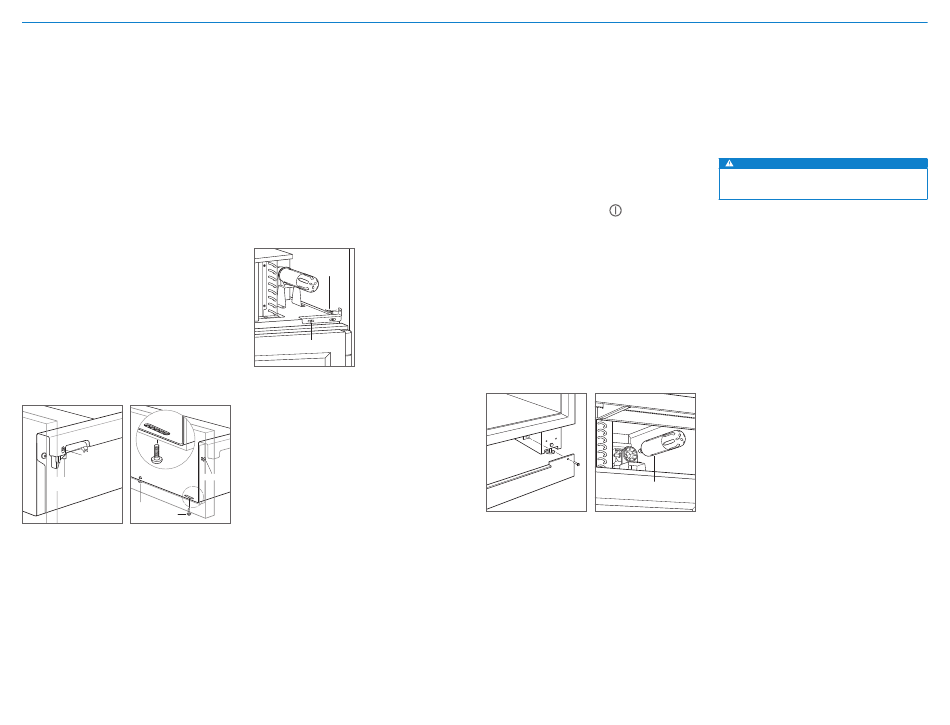

DRAWER ADJUSTMENT
Up-and-Down Adjustment:
Use a hex wrench to turn the up-and-down adjust-
1
ment screw counterclockwise to raise and clockwise to
lower. Refer to the illustration below.
Side-to-Side Adjustment:
1 Use a hex wrench to turn the adjustment screw. Refer
to the illustration below.
Both drawer slides must be adjusted equally to achieve
2
movement. For example, if the right slide adjustment
screw rotated clockwise, rotate the left slide screw
equally counterclockwise.
Tilt Adjustment:
1 Loosen the side and the bottom, center screws. Refer
to the illustration below.
Remove the screw from the corner of the drawer that is
2
out of adjustment.
3 Move the drawer front in or out by hand.
4 Install the screw into the bottom of the drawer. Each
hole location adjusts the door in or out by 1 mm.
5 Tighten the side and bottom, center screws.
SIDE-TO-SIDE
ADJUSTMENT
UP-AND-DOWN
ADJUSTMENT
LOOSEN
REMOVE
Drawer adjustment Drawer tilt adjustment
Sub-Zero, Sub-Zero & Design, Sub-Zero & Snowflake Design, Dual Refrigeration, The Living Kitchen, Great American Kitchens The Fine Art of Kitchen Design, Wolf, Wolf & Design, Wolf Gourmet, W & Design, red colored knobs, Cove, and Cove & Design are registered trademarks and service marks of Sub-Zero Group, Inc. and its subsidiaries.
All other trademarks are property of their respective owners in the United States and other countries.
Anchoring
After the unit has been leveled and door and drawer
adjustment completed, anchor the unit to the opening to
ensure a proper fit and secure installation.
To Anchor the Unit:
Loosen the mounting bracket screws at the top of the
1
unit, then slide the mounting brackets to the side until
they contact the sides of the opening. Install additional
blocking if necessary. Refer to the illustration below.
2 Secure the brackets with the anchoring screws pro-
vided, then tighten the mounting bracket screws.
ANCHORING
SCREWS
BRACKET SCREWS
Anchoring
LOOSEN
Completion
Install the grille assembly and check for proper fit. Recon-
nect the network cable. Attach the network cable to the
grille using the cable ties provided.
Reinstall the drain pan and verify it is in the proper position.
Install the kickplate using the screws to attach it to the
brackets on the inside of each roller base. Refer to the
illustration below. The kickplate must be removable for
service. The floor cannot interfere with removal.
Install the leg covers.
For initial start up, touch and hold Power on either
external touch display, located on the grille.
WATER FILTER BYPASS
If the water filtration system will not be used, it can be
bypassed by removing the water filter.
To Remove the Water Filter:
1 To access the water filter, rotate the bottom of the grille
upward.
2 To remove the filter, rotate counterclockwise one-
quarter turn, then pull out. Refer to the illustration
below.
WATER FILTER
Kickplate installation Water filter removal
90° DOOR STOP
The door(s) of all models open to 135°. For installations
where the door opening must be limited, an optional 90°
door stop kit is available through an authorized Sub-Zero
dealer.
WARNING
Follow all city and state laws when storing, recycling,
or discarding unused refrigerators and freezers.
