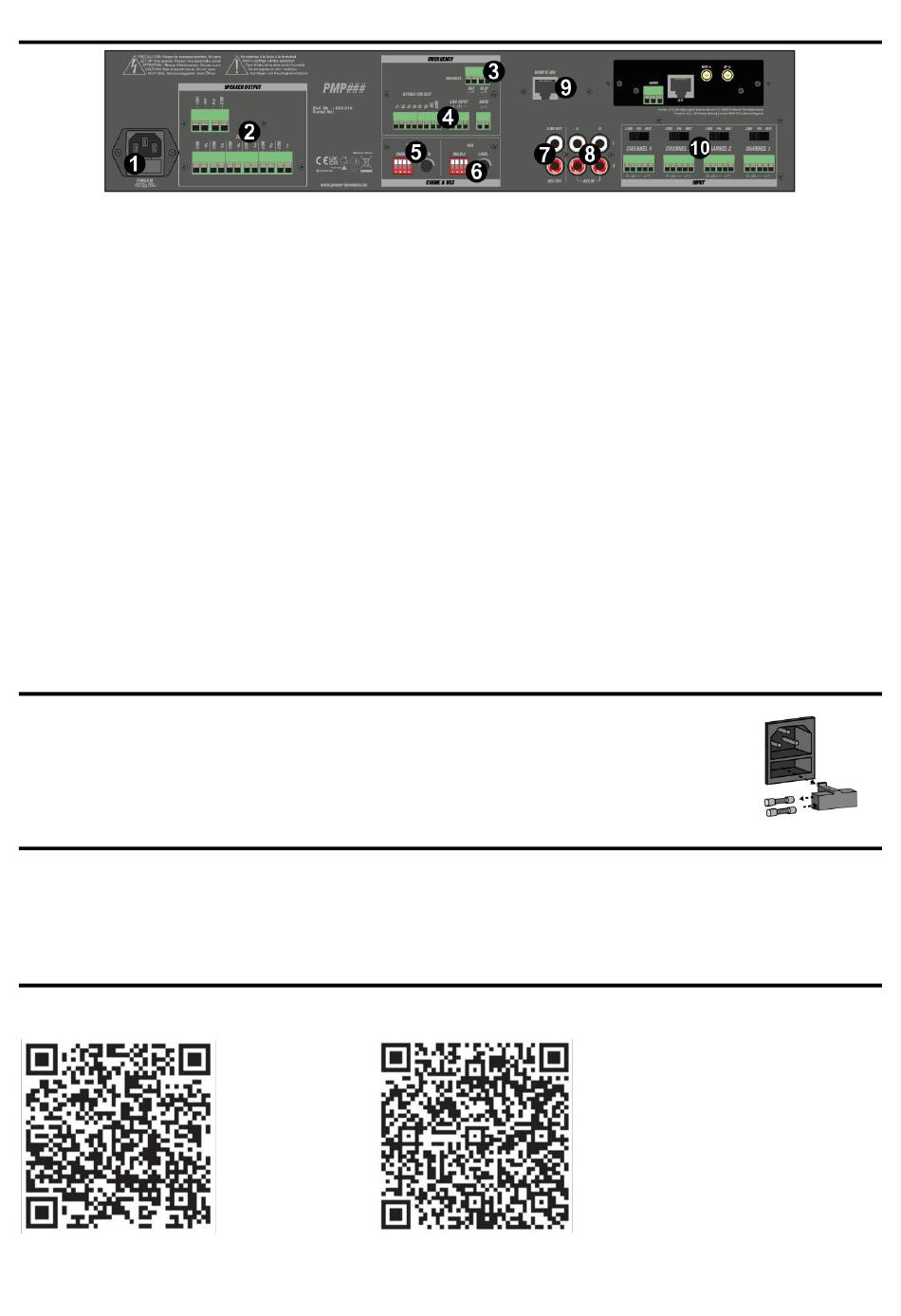

REAR PANEL
1. AC IN AND FUSE HOLDER
Socket for plugging in the supplied power cord. For instructions on how to change the fuse, see "REPLACING THE FUSE".
2. SPEAKER OUTPUT
Speaker output terminal for connecting speakers (individual zones (100V) and 100V, 70V, 4 Ohm).
3. EMERGENCY MESSAGE
Terminal to enable the recording or playback of an emergency message.
4. EXTERNAL EVACUATION
Terminal to enable an external evacuation message, with options of muting and bypassing individual zones.
5. CHIME
Chime enable dip switches and level knob. If a chime on channel 2 is desired, set the channel 2 dip switch to "enable"
position. Adjust the chime level by rotating the knob.
6. VOX
VOX enable dip switches and level knob. VOX (voice-operated exchange) provides the option to enable a channel when
voice input (above a certain threshold) is detected. Set the dip switch(es) to "enable" position to make use of this function.
7. LINK- AND REC OUTPUT
RCA connectors for link- and rec output.
8. AUX INPUT
RCA connectors for AUX A- and B input (left and right).
9. REMOTE MIC
Remote microphone input connector (RJ45).
10. CHANNEL INPUT AND INPUT SELECTORS
Balanced line/mic input for channel input 1-4, including pre-announcement chime possibility.
The inputs are equipped with line, phantom power and microphone setting switches.
Phantom power: set the input switch to PH to supply DC +48V phantom power to accommodate the use of a condenser
microphone.
REPLACING THE FUSE
If the fuse is defective, replace the fuse with a fuse of the same type and value. Before replacing the fuse, unplug mains lead.
Procedure:
Step 1: Open the fuse holder on the rear panel with a fitting screwdriver.
Step 2: Remove the old fuse from the fuse holder.
Step 3: Install the new fuse in the fuse holder.
Step 4: Replace the fuse holder in the housing.
CONNECTING WITH BT
Connecting your BT-device to the amplifier, follow below steps:
1. Turn on BT on your smartphone or tablet.
2. Press the MODE button until the BT LED is illuminated.
3. Search for "MPlayer A" in the BT menu of the smartphone or tablet.
4. Connect with "MPlayer A".
WIFI
Download the latest version of the LEGACY Player app via Apple store or Google play. Here you will also find the latest features
and explanations on how to use them.
Legacy Player Apple Store Legacy Player Google Play
