STEP 5: ATTACHING THE GUARD MOUNT AND GUARD ASSEMBLY
ATTACHING THE GUARD MOUNT TO THE FENCE:
a.
With (2) two of the 10-24 x ¾" Pan Head Torx Drive Screws (Part #39), attach the guard mount to the
fence as shown in Figure 13. Ensure the tube is facing towards the back of the fence.

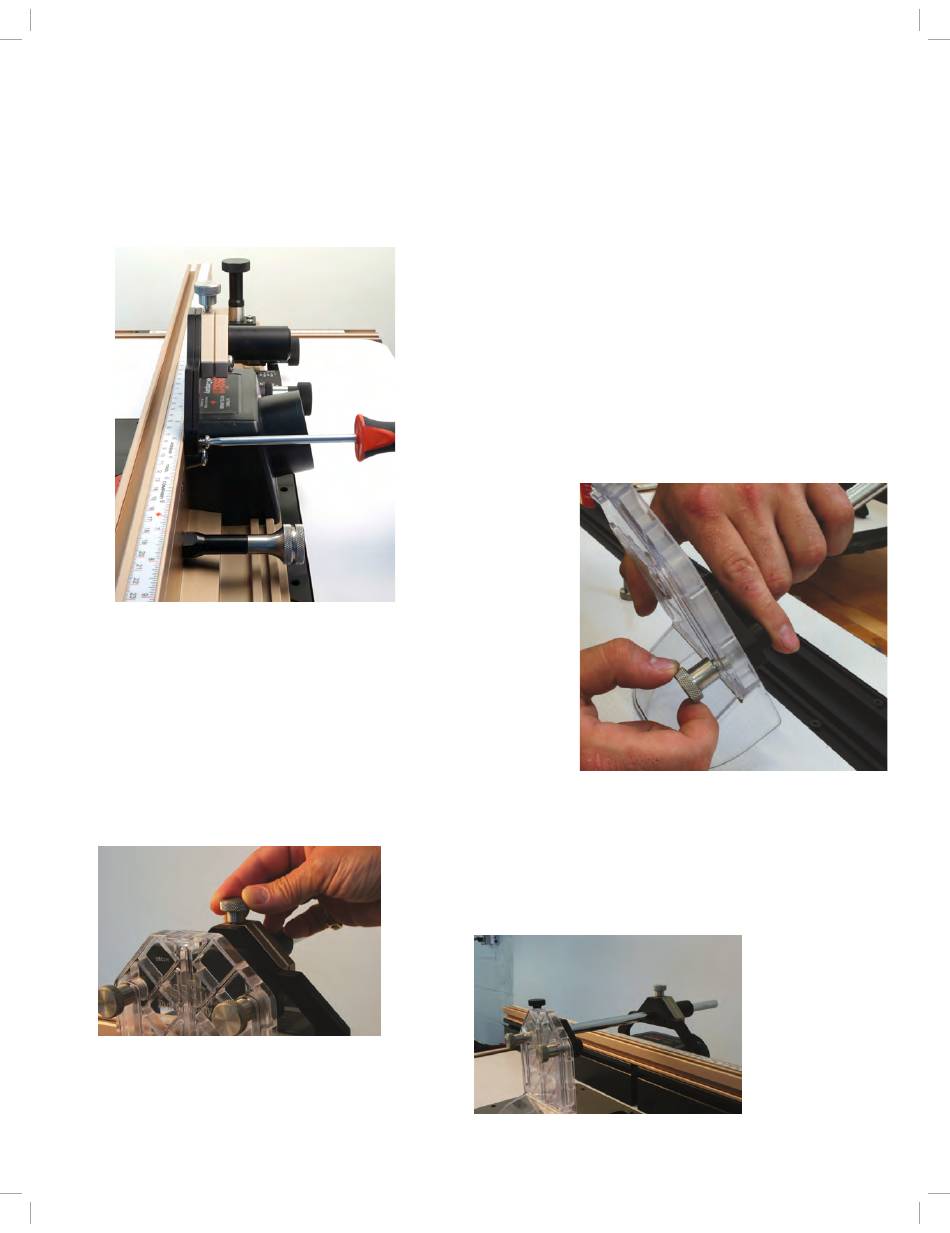

FIGURE 13
ATTACHING THE GUARD TO THE SHAFT MOUNT:
b. With the two (2) guard height adjustment knobs (Part #30),
thread each one through the slots on the guard into the guard
shaft mount. See Figure 14
ATTACHING THE GUARD AND GUARD ASSEMBLY TO THE FENCE:
Figure 15
All manuals and user guides at all-guides.com
Ensure tube is facing towards the back of your
fence.
c.
Loosen the Guard Linear Adjustment Knob , ( Part #27) See
Figure 15 and slide the Adjustment Guard Shaft through the
guard shaft tube to a desired location. See Figure 16.
Tighten the Adjustment Guard Shaft knob.
Figure 16
9
FIGURE 14
