JessEm TA FENCE 04500 Manuel Du Propriétaire page 11

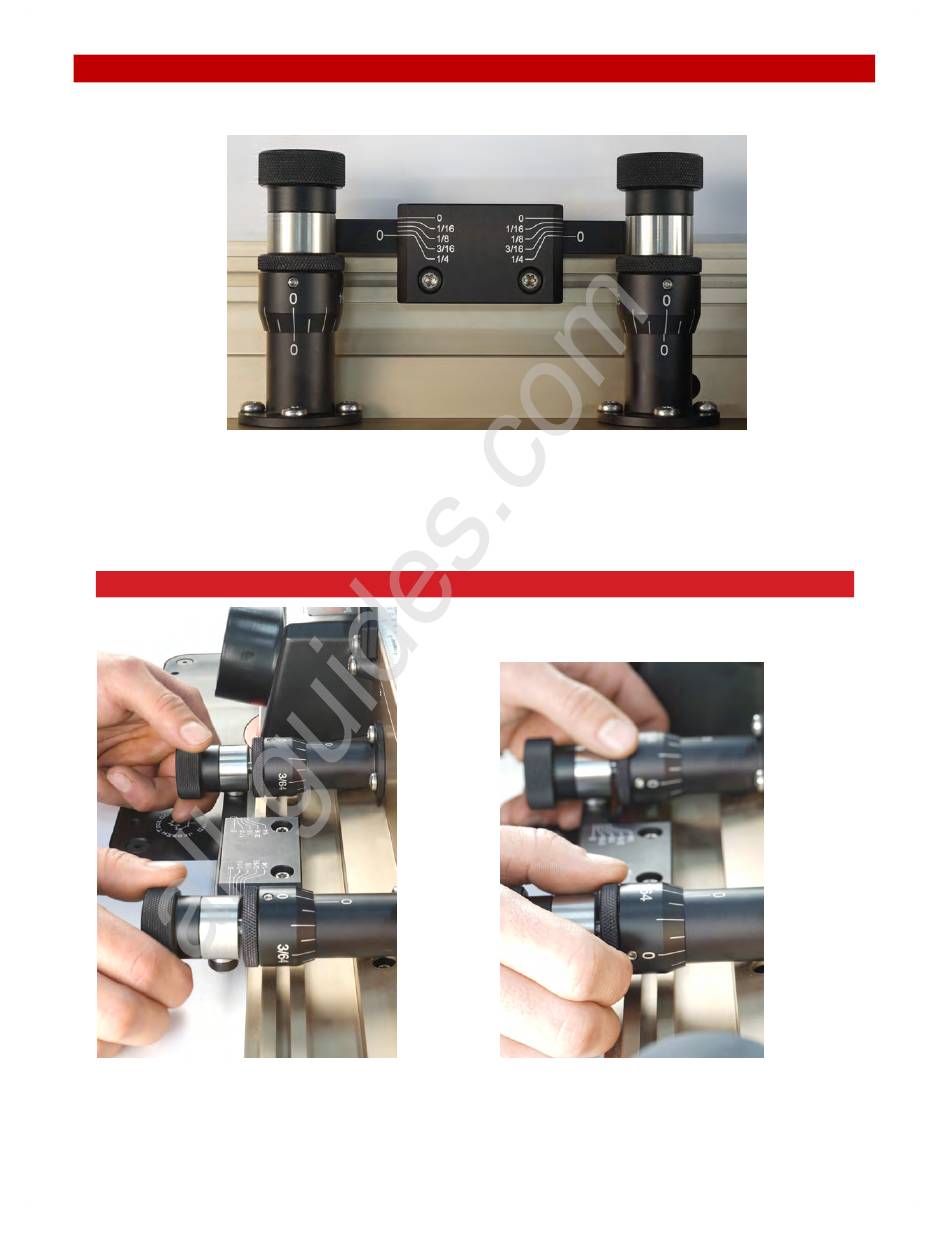

The JessEm TA Fence has a unique Jointing Module. This precise dialed in threaded adjustment allows
for quick and easy readjustments for jointing operations up to 1/4"
Figure 20
Each jointing adjustment collar is precisely engraved. One complete revolution from "0" to "0" represents 1/16"
See Figures 20
HOW TO MAKE ADJUSTMENTS WITH THE JOINTING MODULE
Figure 21
All manuals and user guides at all-guides.com
JOINTING MODULE ON THE TA
STEP 1: Generously loosen the two (2) Jointing
Clamping Knobs, Part # 13. See Figure 21.
STEP 2:
Part # 50 to the desired setting. See Figure 22.
See Table 1 on page 12 for amount of
adjustment.
11
Adjust both Jointing Adjustment Dials,
Figure 22
