ADJUSTING THE TA FENCE GUARD HEIGHT AND DEPTH
The TA Fence has a unique Guard design. You can not only adjust the height of the guard, you can
also adjust the depth of the guard for when you are working away from your fence.

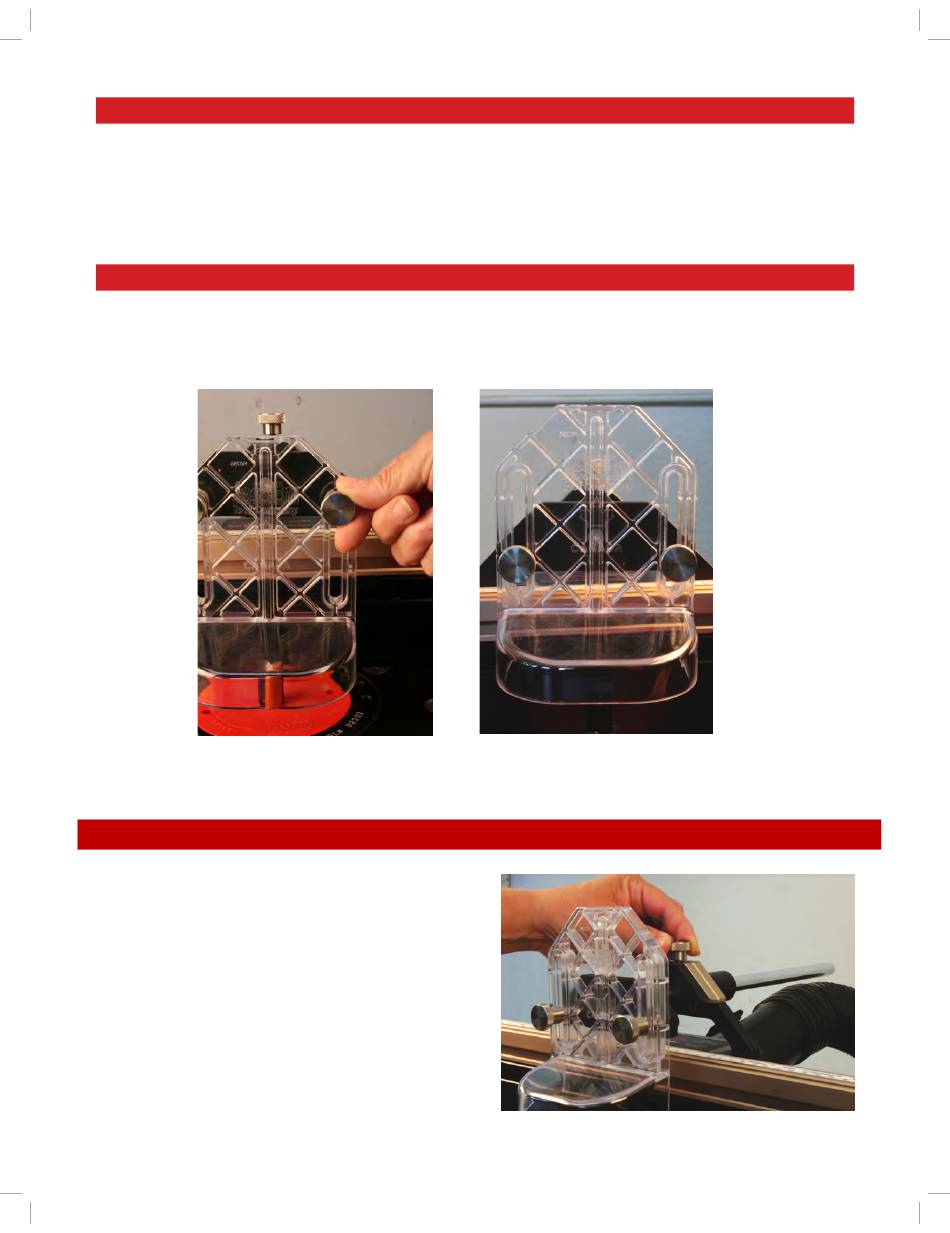

STEP 1: Loosen the two (2) Guard height adjustment knobs Part #44. See Figure 25.
STEP 2: Adjust Guard to desired height and retighten the Guard Height Adjustment Knobs Part #44. See
Figure 26
Figure 25
Loosen the Guard Linear Adjustment Knob
Step 1:
(Part #27). See Figure 27
Step 2: Slide the Guard Adjustment Shaft (Part #25)
to desired depth and retighten the Guard Linear
Adjustment Knob.
All manuals and user guides at all-guides.com
ADJUSTING THE GUARD HEIGHT
ADJUSTING THE DEPTH OF THE GUARD
14
Figure 26
Figure 27
