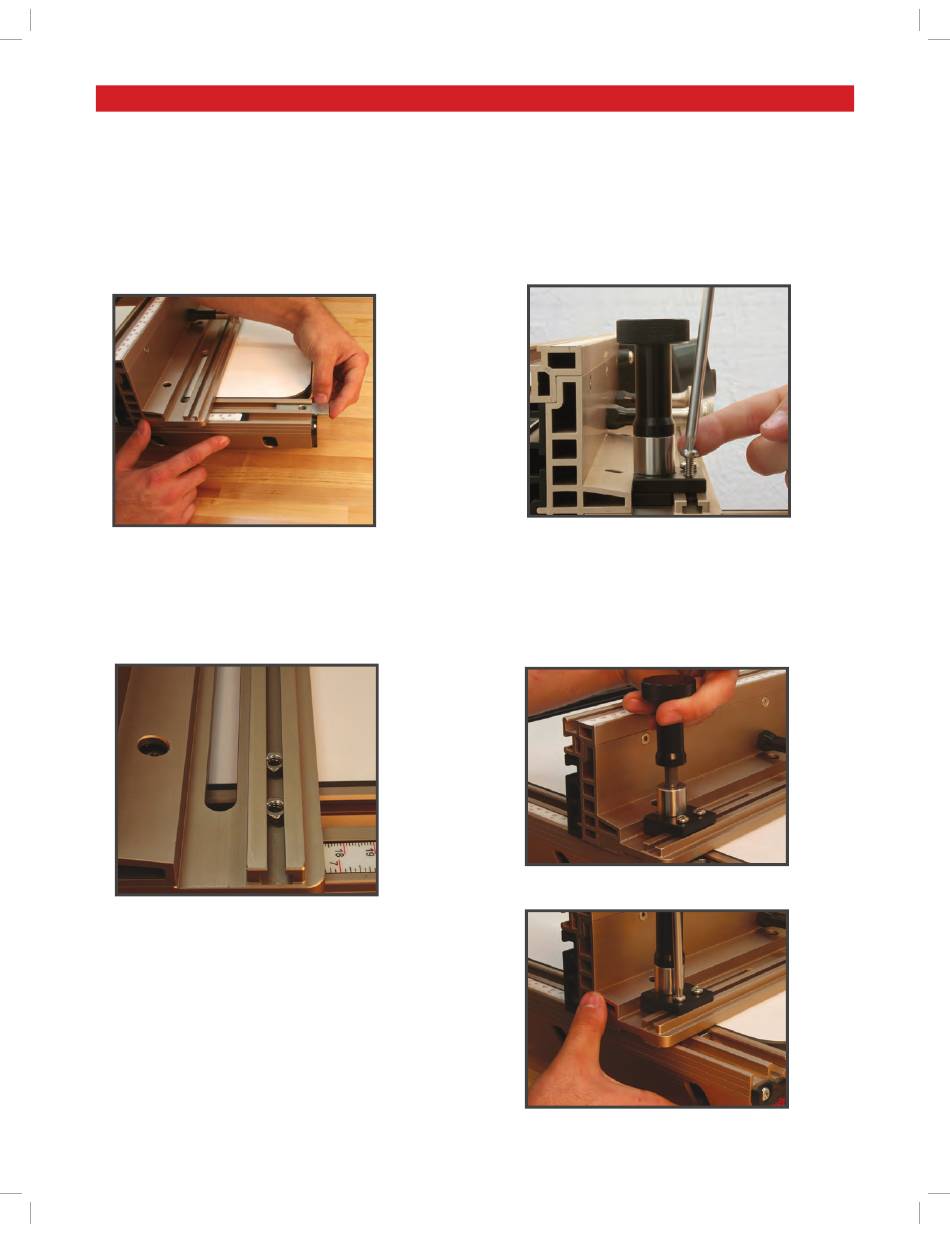

Step 3:
MOUNTING YOUR FENCE TO THE TRACKS
a.
Slide the ¾" x 2-1/2" rectangular t-nut (Part # 34)
for the extension knob into the t-slot next to the
scales on the fence tracks. See Figure 5. Repeat
this for the other side of the fence.
Figure 5
b.
Take two of the (4) 10-24 Stainless Steel
Hex Nuts (Part #22), and slide them into the t-slot
on the back of the fence. Repeat this step on the
other side of the fence. See Figure 6
Figure 6
c.
Take the knob and mount assembly and line
up the hex nuts with the two holes in the mount. See
Figure 7. With two of the 10-24 x ½" Torx drive
stainless steel screws (Part #7), lightly thread them
into the hex nuts. DO NOT TIGHTEN at this point.
See Figure 7. Repeat this for the second knob.
Again, ensure you don't tighten these fully.
All manuals and user guides at all-guides.com
MOUNTING YOUR FENCE TO THE TRACKS
NOTE: The knob and knob mount come
preassembled along with the Guard Mount
in a separate box in packaging.
Figure 7
On one side, slide the knob and mount to line up the
d.
hole in the 2-1/2" t-nut you installed in Step 3 a).
Thread the knob, but DO NOT TIGHTEN. Center
your fence from right to left on the table and now
tighten up the clamping knobs.
Figure 8
Figure 9
7
