The updating and unavailable status of the charging point is displayed below. Please use the charging
point normally after it enters standby status:
The charging point is in updating status
The green lamp is on: The device is in
standby mode with no failures
Charging in progress
3 Technical Parameters
It applies to all vehicles that meet the IEC 62196-2 standard
The output power is configurable
The charging point supports the OCPP 1.6J communication protocol, that is, the charging point can
be connected to the OCPP 1.6J data service platform and management platform (cloud platform))
The charging point can be normally used in indoor and outdoor environments with protection levels
IP55 (Case C) and IP54 (Case B) and IK10
The device is equipped with the following protection functions:
- Lightning protection
- Overcurrent protection
User Manual

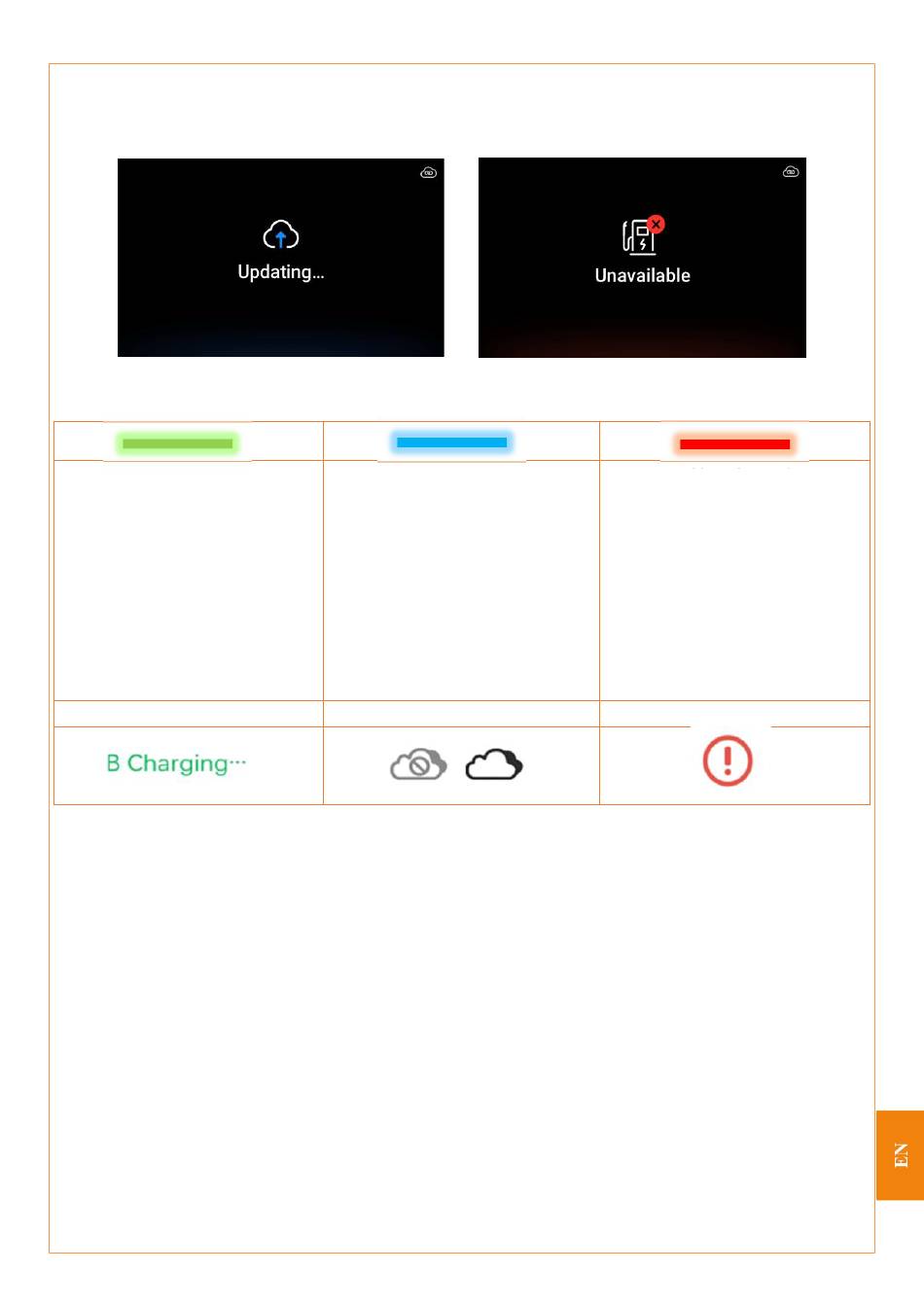

LED status indication
1. The blue lamp is on: The charging
connector has been connected
2. The blue lamp flashes quickly: The
RFID card is being read
3. The blue lamp pulses: charging is in
progress
4. The blue lamp flashes slowly: The
vehicle suspends/the terminal suspends
(Suspend EV and suspend EVSE)
Online/offline
The charging point is in unavailable status
1. The red lamp is on: There is a
2. The red lamp flashes quickly:
Authentication failed
3. The red lamp flashes slowly: The
card swiping or QR code scanning has
timed out and the charging connector
needs to be unplugged and plugged in
Failure. A notice with failure codes
- Short circuit protection
- Earth leakage protection
failure
again
