Caution
• Be sure to turn off the main power switch and disconnect the plug from the power outlet before connecting/disconnecting
cables. Also, read the manual of the equipment to be connected.
• Be careful not to confuse the input terminal with the output terminal when connecting cables. Accidentally reversing cables
connected to the input and output terminals may cause malfunctions and the other problems.
1
Power cord
(Supplied)
For power outlet
TIPS
• Set the audio input terminal used for each input mode in AUDIO SELECT on the SETUP menu. The factory settings are
shown below.

Input mode

DVI-D
DisplayPort
HDMI1
HDMI2
D-SUB[RGB],
D-SUB[COMPONENT]
OPTION *
* When you have used the expansion slot to expand the functions.
• The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks
of HDMI Licensing Administrator, Inc. in the United States and other countries.
• DisplayPort is a registered trademark of Video Electronics Standards Association.
• Adobe, Acrobat, and Acrobat Reader are either registered trademarks or trademarks of Adobe Systems Incorporated in the
United States and/or other countries.
• All other brand and product names are trademarks or registered trademarks of their respective holders.
6
E

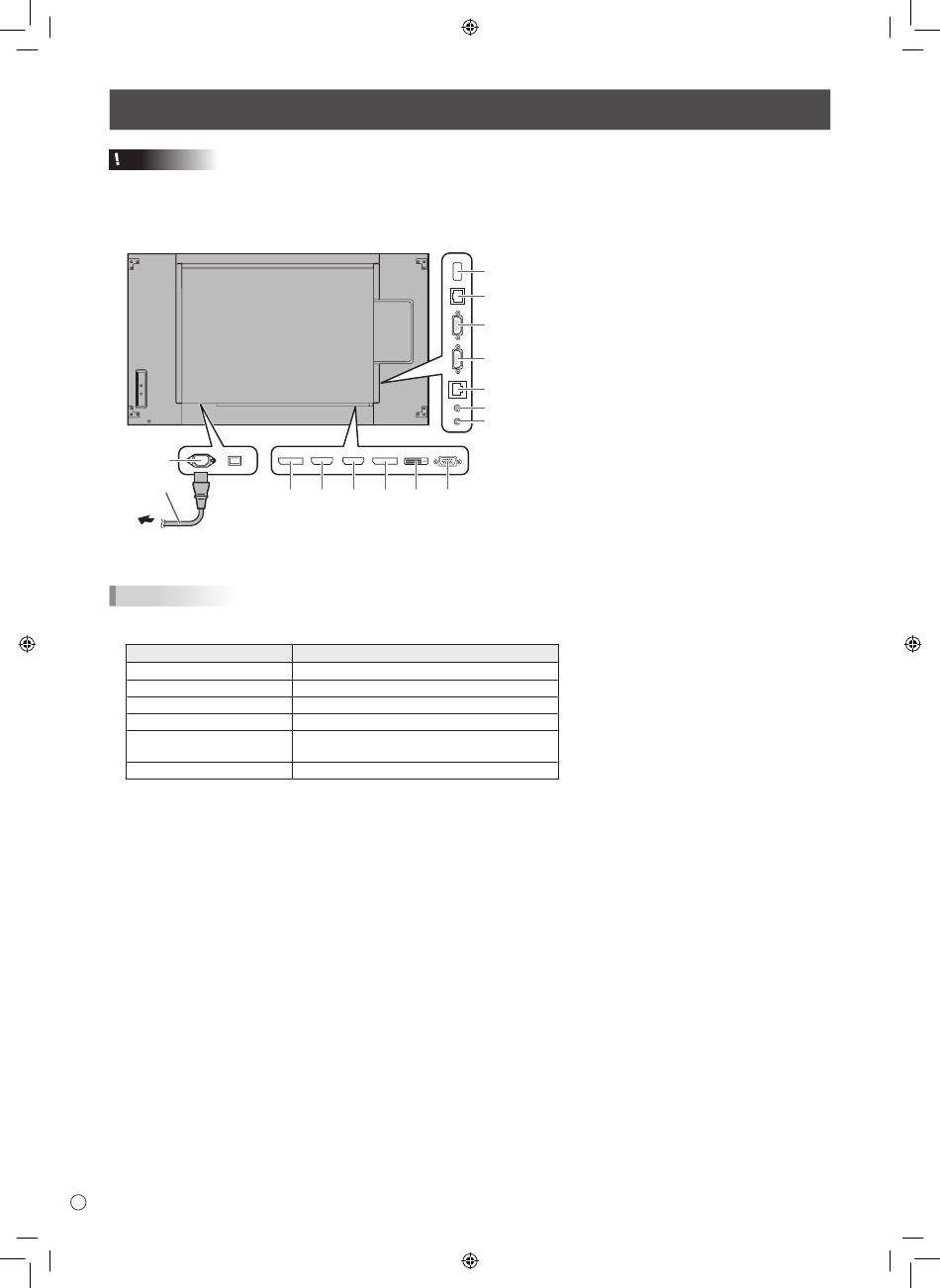

Connections

3
4
5
7
2
6
Audio input terminal (Factory setting)
Audio input terminal
DisplayPort input terminal
HDMI1 input terminal
HDMI2 input terminal
Audio input terminal
Expansion slot
1. AC input terminal
8
2. DisplayPort output terminal
3. HDMI1 input terminal
9
4. HDMI2 input terminal
5. DisplayPort input terminal
10
6. DVI-D input terminal
7. D-sub input terminal
11
8. Power supply terminal
9. LAN terminal
12
10. RS-232C output terminal
13
11. RS-232C input terminal
14
12. Optional terminal
13. Audio output terminal
14. Audio input terminal
