Trac-Lites Single-Circuit Current Limiting End Feed Connector
INSTRUCTIONS FOR INSTALLING
CURRENT LIMITING FEED
CONNECTOR ON PENDANT
MOUNTED TRAC
Step 1. Follow instructions included with the
pendant mounting kits.
Step 2. Install Current Limiting CIRCUIT
BREAKER into PLATE.
Step 3. Attach wires per wiring instructions
in Diagram 1 below.
Step 4. Slide trac onto FEED CONNECTOR;
ensure (2) contact blades insert
into the gap of the trac bus bars.
Step 5. Tighten ONE-WAY SECURITY
SCREW.
Step 6. Fasten COVER taking caution to
avoid pinching any wires.
Use TAMPER RESISTANT SCREWS
(provided).

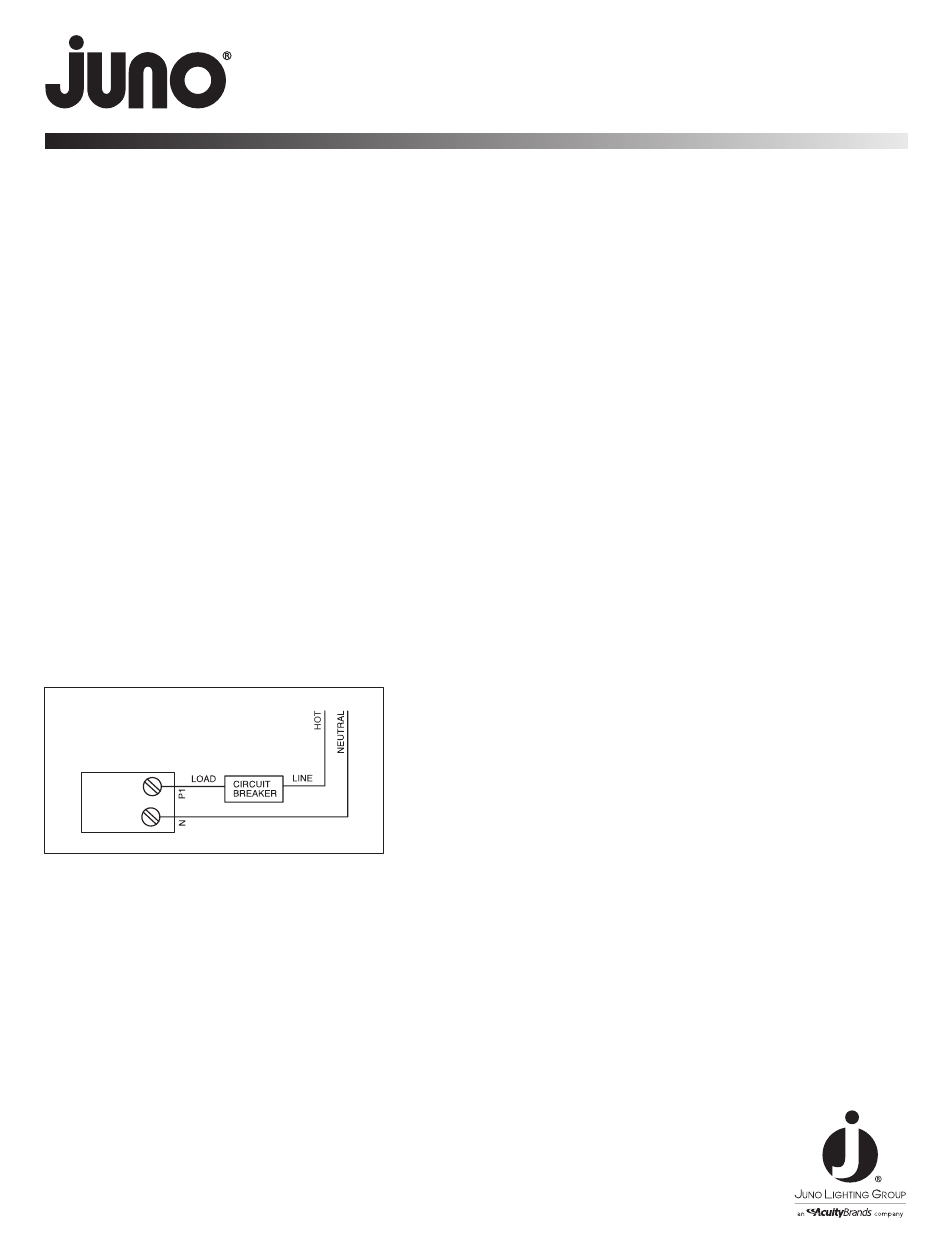

Diagram 1 (End Feed)
(1) SINGLE CIRCUIT TRAC WITH (1) CIRCUIT BREAKER FED FROM (1) HOT
FEED
CONNECTOR
TCLFM11
WARRANTY
Juno Lighting Group warrants that its products are free from defects in material and workmanship. Juno Lighting Group's obligation
is expressly limited to repair or replacement, without charge, at Juno Lighting Group's factory after prior written return authorization has been
granted. This warranty shall not apply to products which have been altered or repaired outside of Juno Lighting Group's factory. This warranty
is in lieu of all other warranties, expressed or implied, and without limiting the generality of the foregoing phrase, excludes any implied warranty
of merchantability. Also, there are no warranties which extend beyond the description of the product on the company's literature setting forth
terms of sale.
Product Services Phone (888) 387-2212
1300 South Wolf Road • Des Plaines, IL 60018 • Phone 800-323-5068 • www.junolightinggroup.com
INSTALLATION INSTRUCTIONS
For RCLFM11 / RCLFMR11
INSTRUCTIONS FOR RCLFM11/
RCLFMR11 END FEED WIRING
Step 1. Strip ground wire enough to wrap
around #8 screw. Wrap copper
portion of ground wire around the
GROUND SCREW (GREEN)
between the screw and washer.
Tighten screw to clamp wire.
Step 2. Strip White neutral wire 7/16" and
connect to NEUTRAL (N) terminal
of FEED CONNECTOR. Tighten
screw to clamp wire.
Step 3. Strip HOT supply wire and connect
to Current Limiting CIRCUIT
BREAKER LINE wire (supplied on
current limiting circuit breaker).
Step 4. Connect LOAD wire from Current
Limiting CIRCUIT BREAKER
(supplied on current limiting circuit
breaker) to trac FEED CONNECTOR
P1 terminal. Tighten screw to clamp
wire. See schematic Diagram 1
below.
