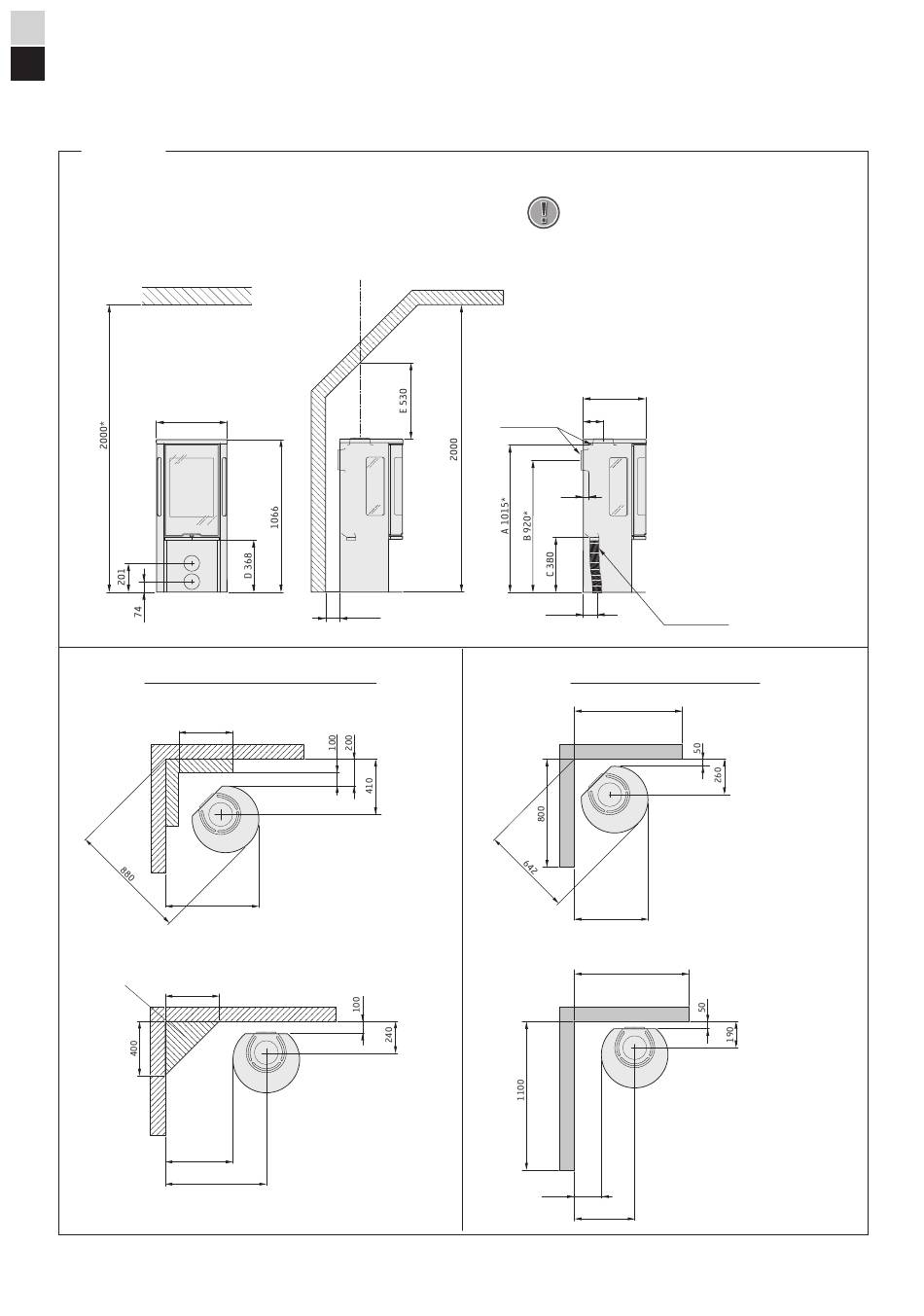

Installation distances
C556
WHEN INSTALLING TURNTABLE (OPTION) the follow-
ing installation distances do not apply.
See the separate turntable installation instructions.
Combustible roof
495
INSTALLATION AGAINST COMBUSTIBLE WALLS
Permitted area for
combustible parts
of the building
400
* If the stove is placed on a hearth plate made of glass for example (accessory), the height from the floor is affected by a distance corresponding to the thickness of the hearth plate, for a free standing
glass hearth plate this is 10 mm.
** To prevent discolouration of painted non-flammable walls we recommend that the same side distance as to combustible walls is used.
100
400
Combustible wall
695
Combustible wall
500
750
The minimum distance in front of
the stove opening to combustible
parts of the building or interior
!
decoration must be at least 1 m.
A separate glass hearth The dimension diagrams only
plate (accessory) show the minimum permitted
increases the connection installation distances for the
height to the chimney by stove. When connecting to a steel
10 mm.
flue, also note the safety distance
requirements of the flue. The
safety distance between an un-
insulated flue and a combustible
part of the building should be at
least 450 mm.
440
140
Ø150 A = height from floor to chimney
connection upwards
B = height from floor to c/c chimney
connection rear
C = height from floor to air inlet
35
D = height from floor to lower edge
of hatch
E = minimum height to sloped
ceiling from the centre of the
chimney
100
Air inlet Ø67
INSTALLATION AGAINST FIREWALLS
800
Fire-retardant wall of
brick or concrete
545
850
Fire-retardant wall of
brick or concrete
200**
450**
