Installation Procedure
Selection of indoor unit installation place
Place where it is easy to route drainage pipe and outdoor piping.
Place away from heat source and with less direct sunlight.
Place where cool and warm air could be delivered evenly to every corner of the room.
Place near power supply socket. Leave enough space around the unit (refer to installation drawings).

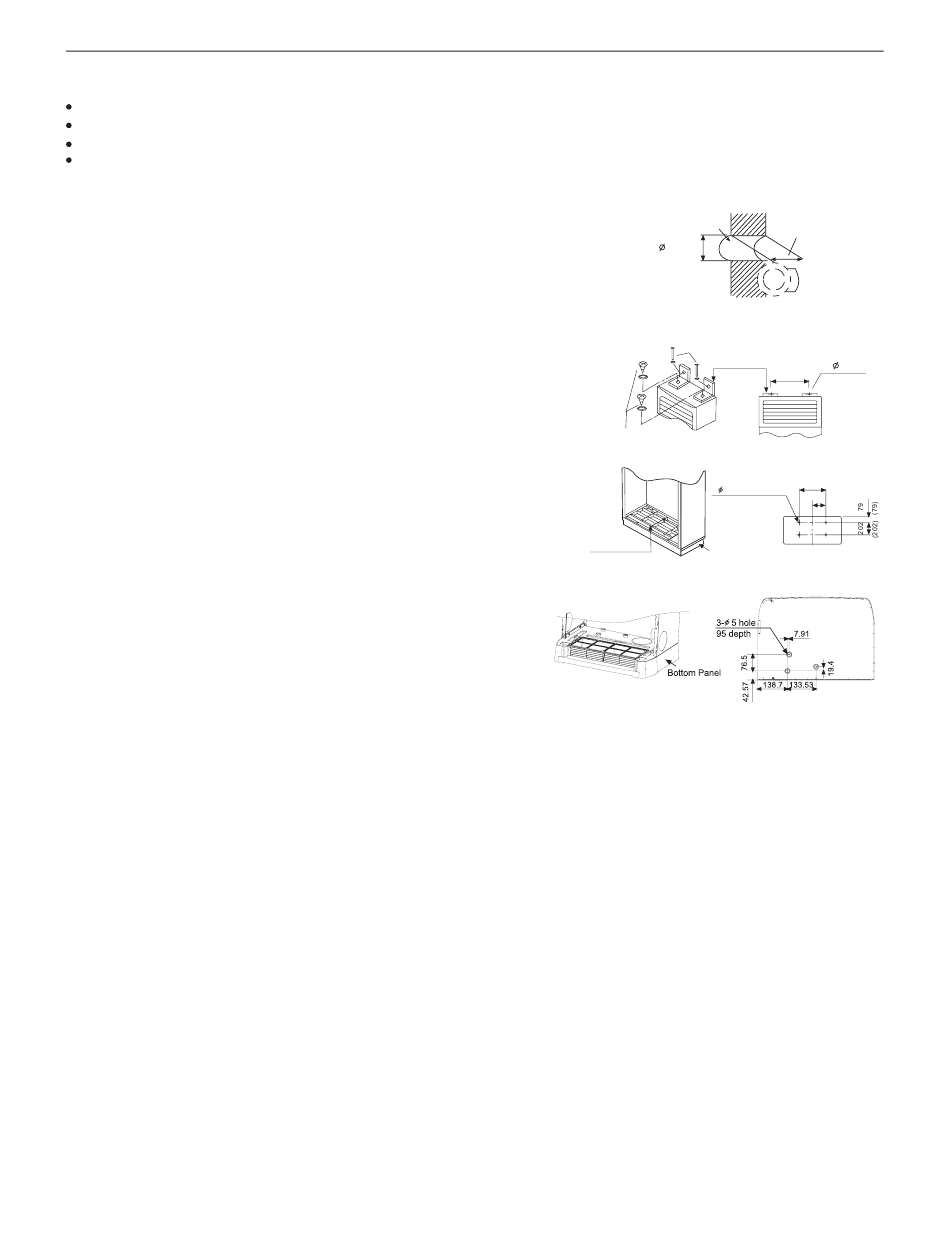

Installation of indoor unit
1.Position of the wall hole
Wall hole should be decided according to installtion place
and piping direction. (refer to installation drawings)
2.Making a wall hole
Drill a hole of 70mm dia. with a little slope towards outside.
Install piping hole cover and seal it with putty after installation.
3.Fixing of indoor unit
With the unit set up vertically, fix the fitting metal to the unit
with screws, then fix the fitting metal to the wall with cement
nail and washer, as shown right:
Moreover, if wanting to fix the unit more firmly, you should
fix the bottom panel to the ground with concrete bolts, as
shown right:
All manuals and user guides at all-guides.com
16
INDOOR SIDE
wall hole
70mm
( Cross section of wall hole )
Cement nail
Fitting metal
Screw
4- 14 hole 30 depth
Fitting hole
Bottom Panel
Indoor Unit
OUTDOOR SIDE
wall thickness
2- 10 hole
330
260
130
