Product Instructions
Torque range
Torque range
Voltage
Power
Motor voltage
Motor power
Vibration standard
Vibration uncertainty
Vibration value
Weight
Weight
Installation
Chose a safe place for the installation of the system.
Install the system according to the following instructions.
Installation
A safe place should be chosen for the installation of system.
1.
2. The tool driver must be connected to the controller with the tool cable.
The controller must be connected to the power supply and the power supply
3.
to the mains (230V/50Hz or 115V/60Hz).
The system will initialise. All basic hardware functions are checked and dis-
4.
played during initialisation. Also the tool serial number is displayed.
5. After initialisation passed correctly, the system is ready for use.
Also see the instructions for your controller unit.
Maintenance
Preventing ESD problems
The components inside the tool and controller are sensitive to electrostatic dis-
charge. To avoid future malfunction, make sure that service and maintenance is

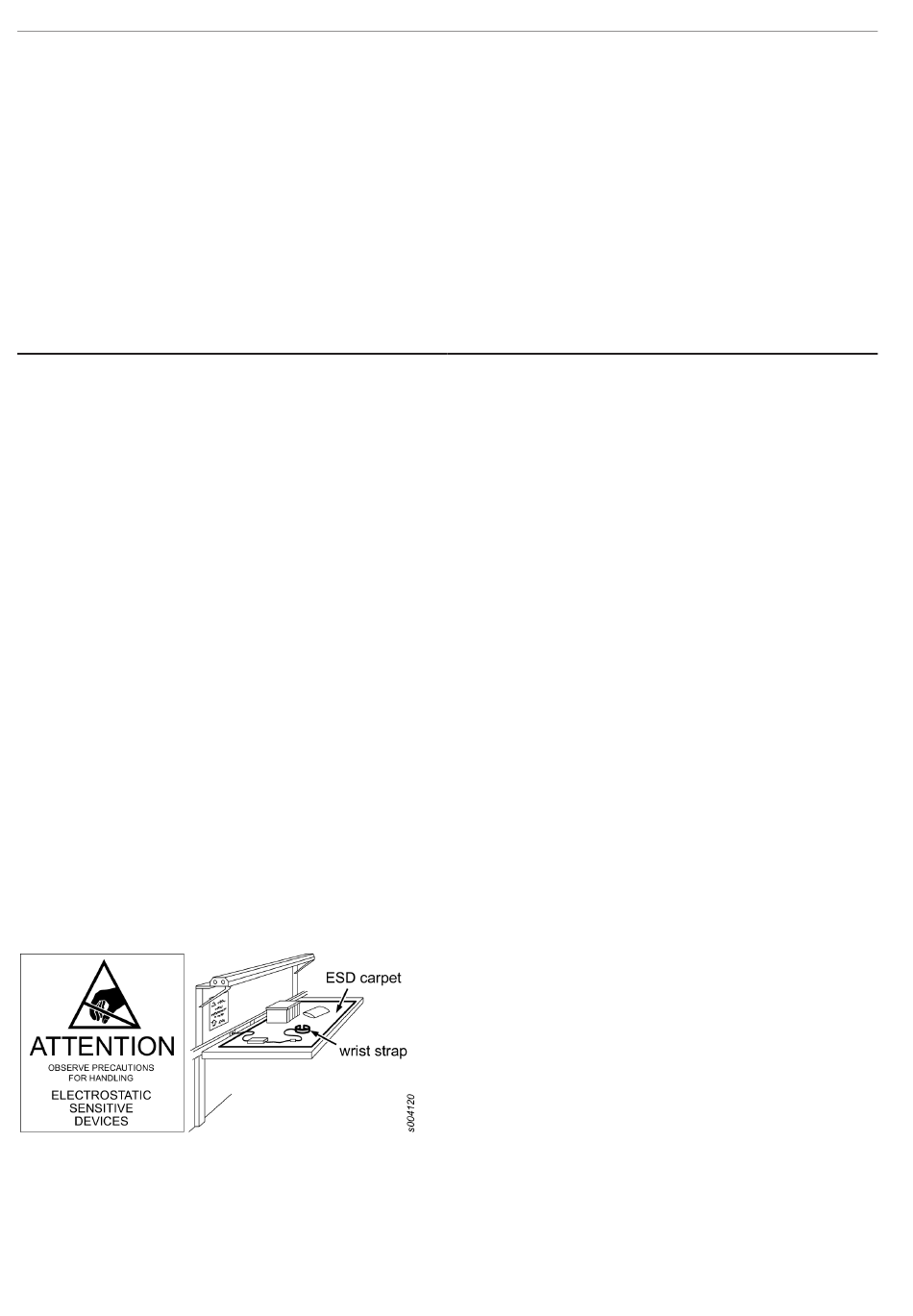

carried out in an ESD approved work environment. The figure below shows an
example of an appropriate service work station.
4
EN
10–100 cNm
0.88–8.8 in lb
24 V
180 W
24 V d.c.
180 W
-
- m/s²
- m/s²
1.2 kg
2.65 lb
© Atlas Copco Industrial Technique AB - 9836 601900 00
ETF MT 100
