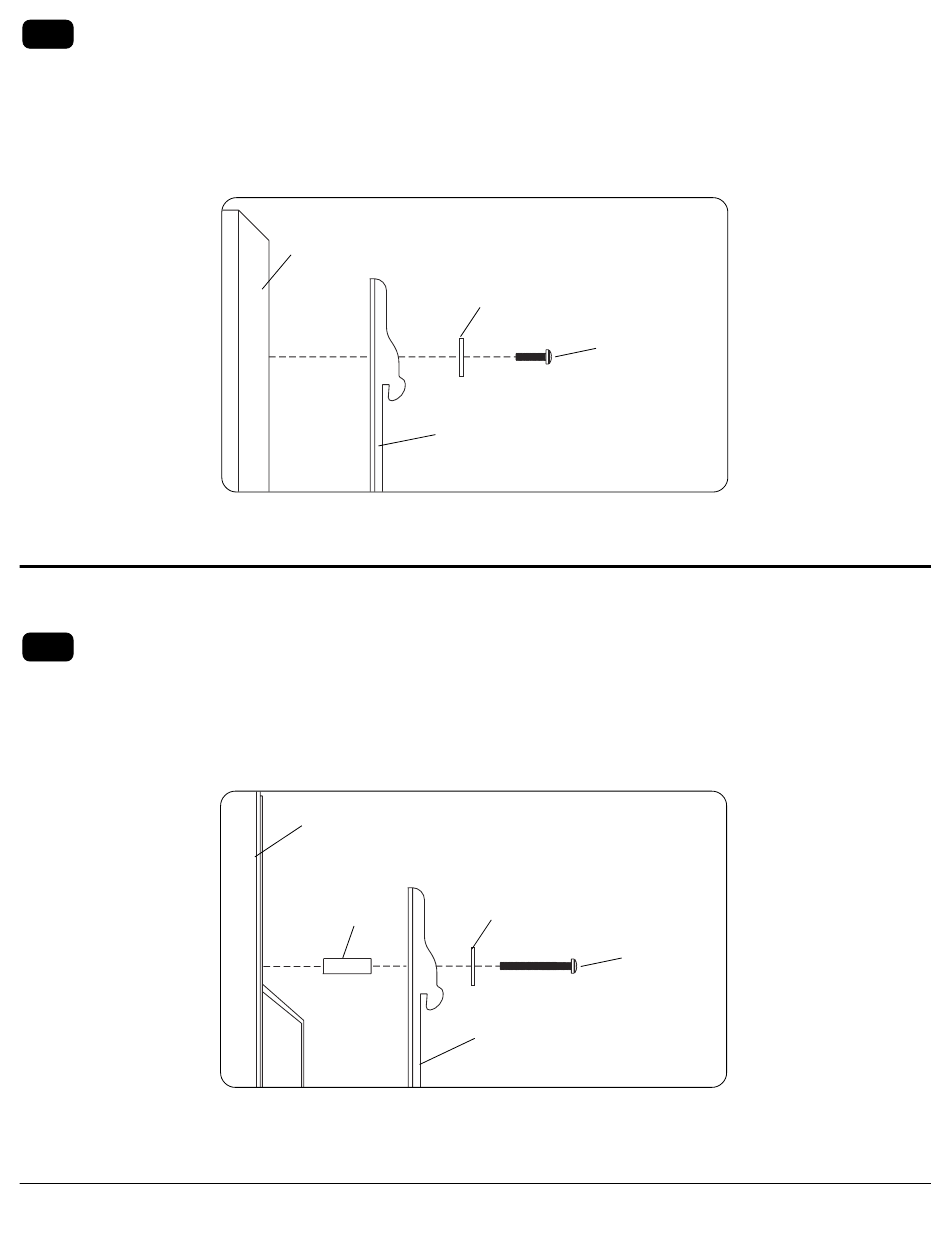

For Flat Back Screen
2-1
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/1
for a full screen compatibility chart for this mount.
Begin with the shortest length screw, hand thread through washer and adapter bracket into screen as shown below.
Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over tighten. If
screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener pack.
Repeat for remaining mounting holes, level brackets and tighten screws.
NOTE: Spacers may not be used, depending upon the type of screen.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
For Bump-out or Recessed Back Screen
2-2
Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/1
for a full screen compatibility chart for this mount.
Begin with longer length screw, hand thread through washer, adapter bracket and spacer in that order into screen as
shown below. Screw must make at least three full turns into the mounting hole and fit snug into place. Do not over
tighten. If screw cannot make three full turns into the screen, select a longer length screw from the baffled fastener
pack. Repeat for remaining mounting holes, level brackets and tighten screws.
If you have any questions, please call Peerless customer care at 1-800-865-2112.
Visit Peerless website at www.peerlessmounts.com
SCREEN
ADAPTER
BRACKET (BB)
SCREEN
SPACER
BRACKET (BB)
7 of 24
fig. 2.1
WASHER
SCREW
fig. 2.2
WASHER
SCREW
ADAPTER
For customer care call 1-800-729-0307 or 708-865-8870
ISSUED: 11-09-07 SHEET #: 202-9251-1
