Installing Adapter Brackets
• Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can cause
stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become
detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque.
• If screws don't get three complete turns in the screen inserts or if screws bottom out and bracket is still not tightly
secured, damage may occur to screen or product may fail.
To prevent scratching the screen, set a cloth on a flat, level surface that will support the weight of the screen. Place
2
screen face side down. If screen has knobs on the back, remove them to allow the adapter brackets to be attached.
Place adapter brackets (BB) on back of screen, align to holes, and center on back of screen as shown below.
Attach the adapter brackets to the back of the screen using the appropriate combination of screws, washers and
spacers as shown in figure 2.1 or 2.2.
NOTE: Top and bottom holes must always be used.
Verify that all holes are properly aligned, and then tighten screws using a phillips screwdriver.
Notes:
• The number of fasteners used will vary, depending upon the type of screen.
• Spacers may not be used, depending upon the type of screen.
NOTE: For flat back screens proceed to step 2-1. For bump-out or recessed back screen skip to step 2-2.
Visit Peerless website at www.peerlessmounts.com

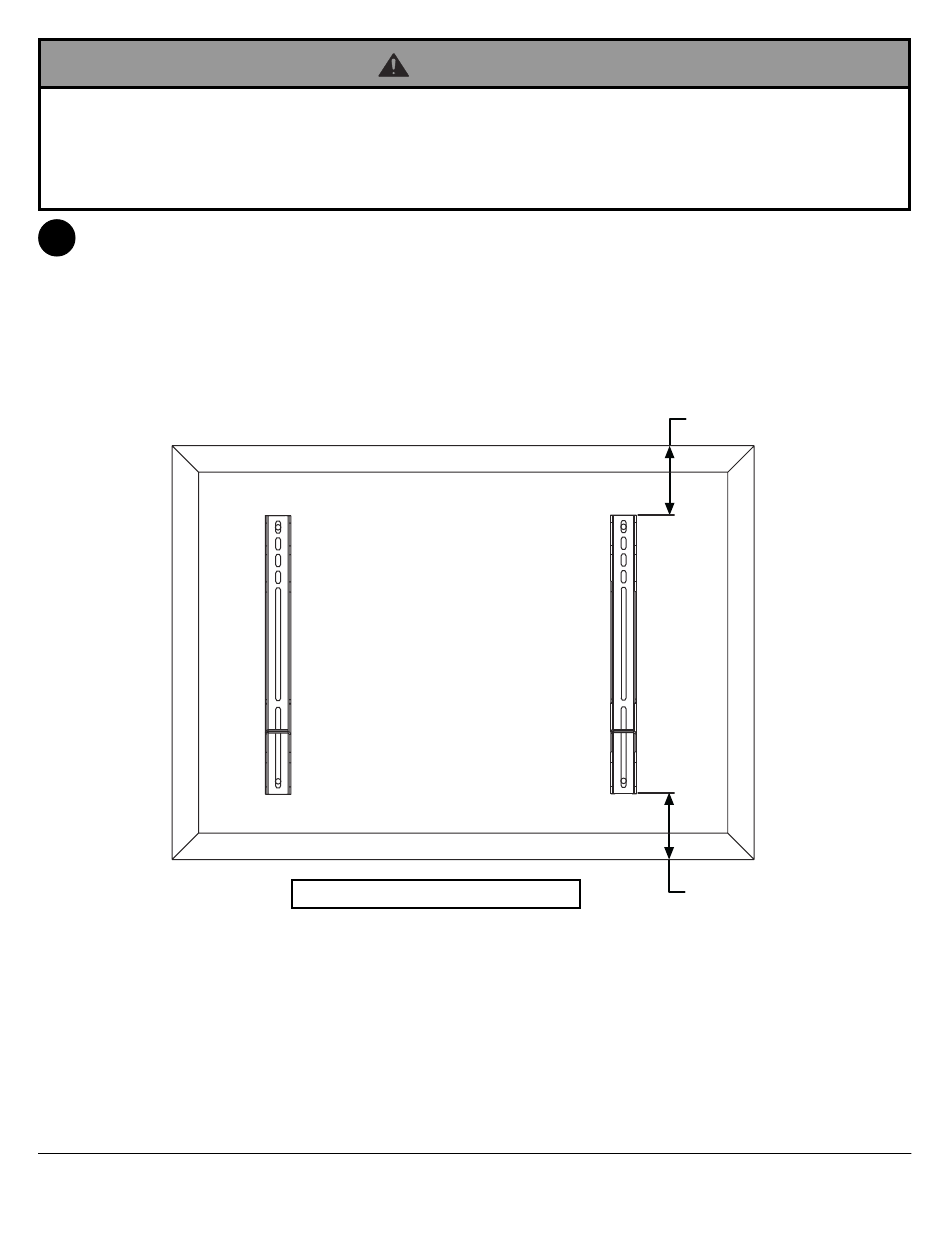

CENTER BRACKETS VERTICALLY
BB
ON BACK OF SCREEN
NOTE: "X" dimensions should be equal.
WARNING
6 of 24
For customer care call 1-800-729-0307 or 708-865-8870
X
X
ISSUED: 11-09-07 SHEET #: 202-9251-1
