Beninca MATRIX Livret D'instructions page 14

Pre
9
OFF
10
11
PRG
12
Pre
13 PAR

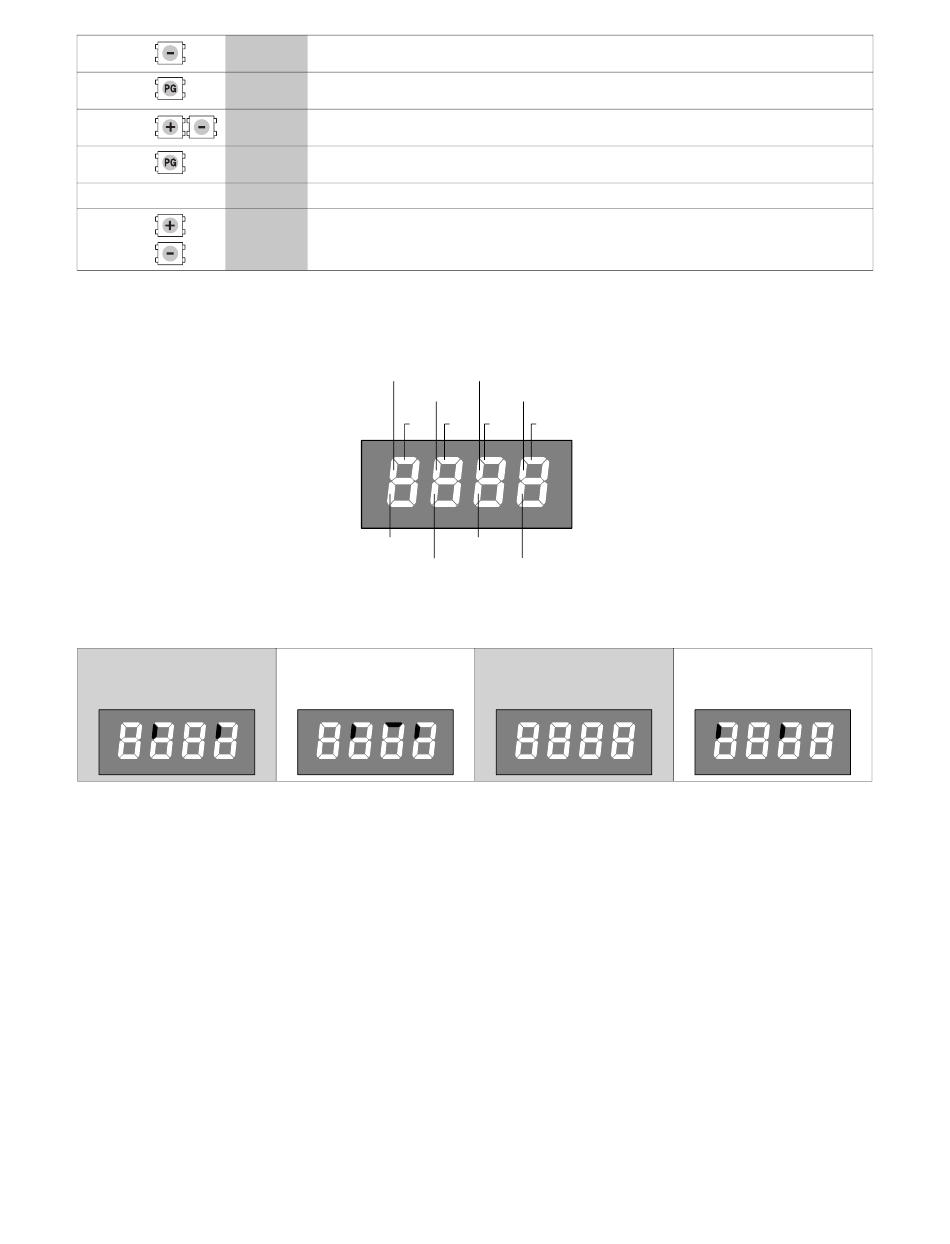

In the event of malfunctions, by pressing key + or - the status of all inputs (limit switches, control and safety) can be displayed. One
segment of the display is linked to each input. In the event of failure it switches on according to the following scheme.
N.C. inputs are represented by the vertical segments. N.O. inputs are represented by the horizontal segments.
For example, with the leaves
completely closed the display
is as follows:
The control unit checks the correct operation of the safety devices. In case of failure, the following messages may appear on the
display:
ERR1 Error, check photocells at PHOT O input.
ERR2 Error, check photocells at PHOT C input.
ERR3 Error, ENCODER
ERR4 Error, TRIAC
14
All manuals and user guides at all-guides.com
Press <-> several times to select PRE logic
Value currently set for the function selected
ON
Set the desired value with the <+> and <-> keys
The value is programmed
When programming has been made, the display goes to the function just set
Press <+> and <-> simultaneously to go to the higher menu and quit programming or
wait 30s.
Diagnostics
����
����
����
���� �
���� �
the moment an Open impulse
is given:
Error messages
����
����
��� ���� �����
����
���
during the opening phase: with the leaves completely
open:
