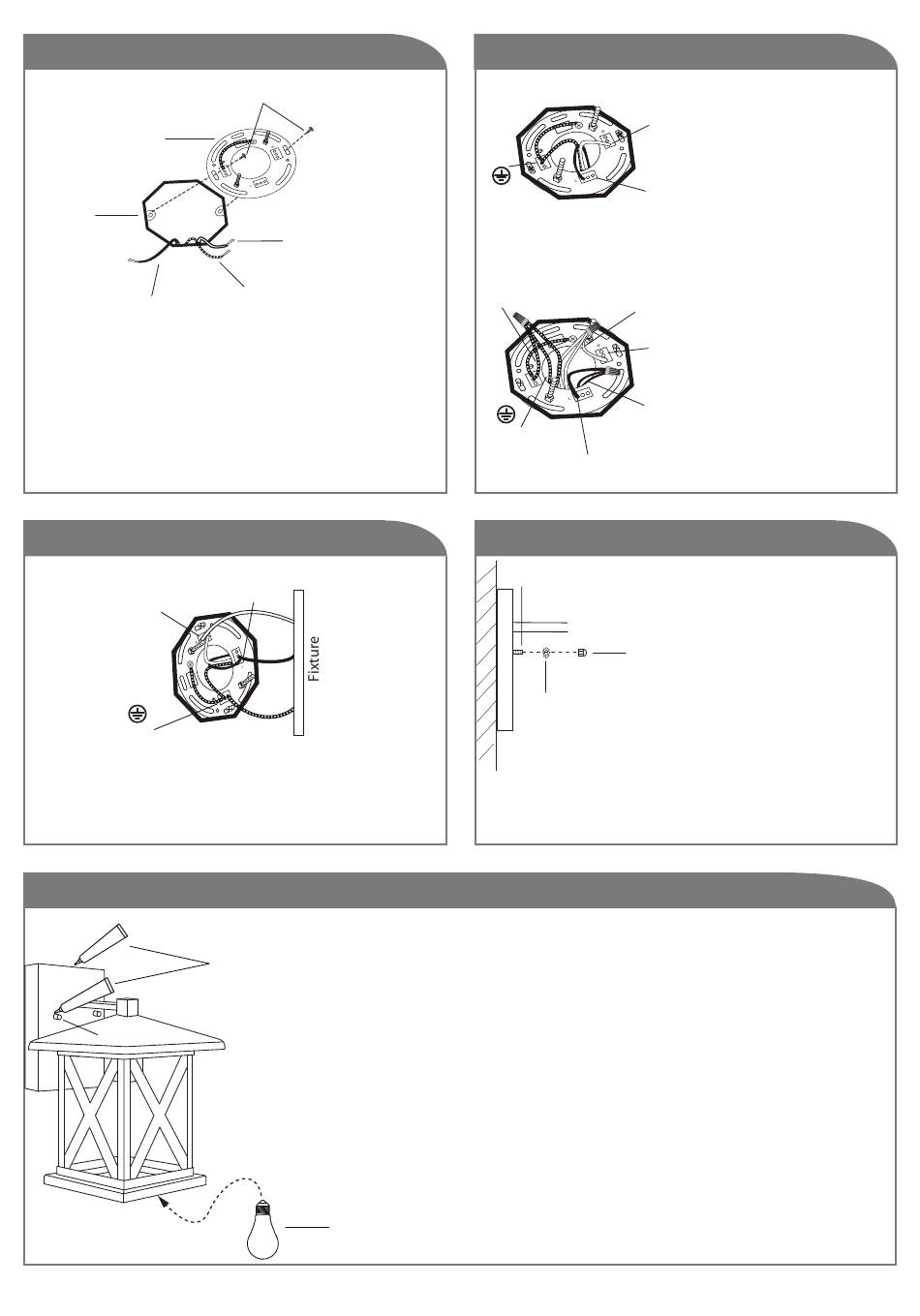

Step 3
Easy Connect
mounting
bracket
Electrical
Box
Black (Live)
Attach easy connect mounting bracket to electrical
box with electrical box screws (not included).
Step 5
(N)
White
(Neutral)
Green
(Ground)
Connect (push) electrical wires from fixture into
correct inserts.
Step 7
(not included)
Cap Nut
Electrical box screws
White
(Neutral)
Green (Ground)
(L)
Black (Live)
Weather
Resistant
Install the proper bulb type and wattage (not included).
Caulking
After Installation, seal around the top and side perimeter between
the fixture and the wall surface with weather resistant caulking.
The bottom should be left un-caulked to prevent moisture
build-up. Apply a small amount of weather resistant caulking
around the side perimeter between the cap nut and mounting plate.
Bulb
Tel: (613) 342-5424, Fax: (800) 263-4598
Step 4
Option 1
White
(Neutral)
Green
(Ground)
Option 2
Jumper
Wire
Jumper Wire
Black (Live)
Green
(Ground)
Jumper Wire
Step 6
Stud
Cap Nut
Star
Washer
Tuck electrical wires into electrical box and
position fixture over studs on mounting bracket
assembly. Secure fixture in place with star washers
and cap nuts.
2
(N)
Option 1: Connect (push)
electrical wires from
electric box (house
wiring) into correct
inserts.
(L)
Black
Option 2: For multiple
(Live)
green (ground), black
(live) and white (neutral)
wires joined in the
electrical box (house
wiring), attach a single
"green" , "black" and
(N)
"white" jumper wire
White
before connecting. Strip
(Neutral)
7mm from the 6" jumper
wires (AWG 12-24)
(L)
supplied. Then connect
(push) wires into the
correct inserts.
