VMI VISION'R VENTILAIRSEC CUBE Notice page 56

DESCRIPTION

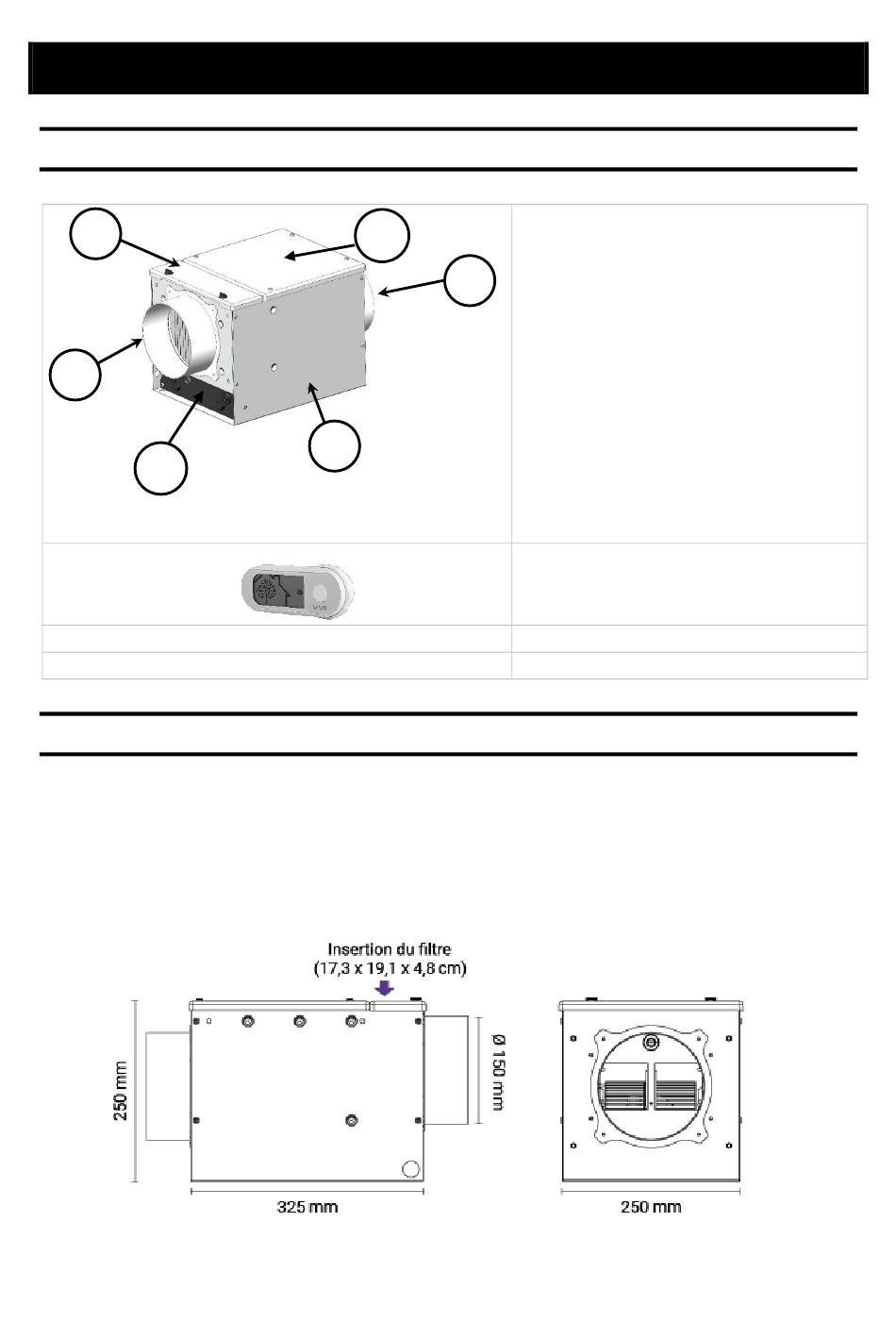

A. Overview
3
4
6
B. Dimensions
1.
Weight: 8.1 kg
Dimensions in millimetres
2
1
OPTIONS
OPTIONS
CUBE model
1 ventilation module
1 – Housing
5
2 – Maintenance cover
3 – Filter hatch
4 – Air inlet (from the roof or façade) -
suction
5 – Air outlet (to premises) – positive
ventilation
6 – Electronic plug-in unit (printed
circuit board)
*Non-contractual drawing.
1 control unit
1 or more humidity sensors
1 or more air quality sensors
