9. Install AC Multi-Outlet Supply
Multiple Faucet Installations - AC Only

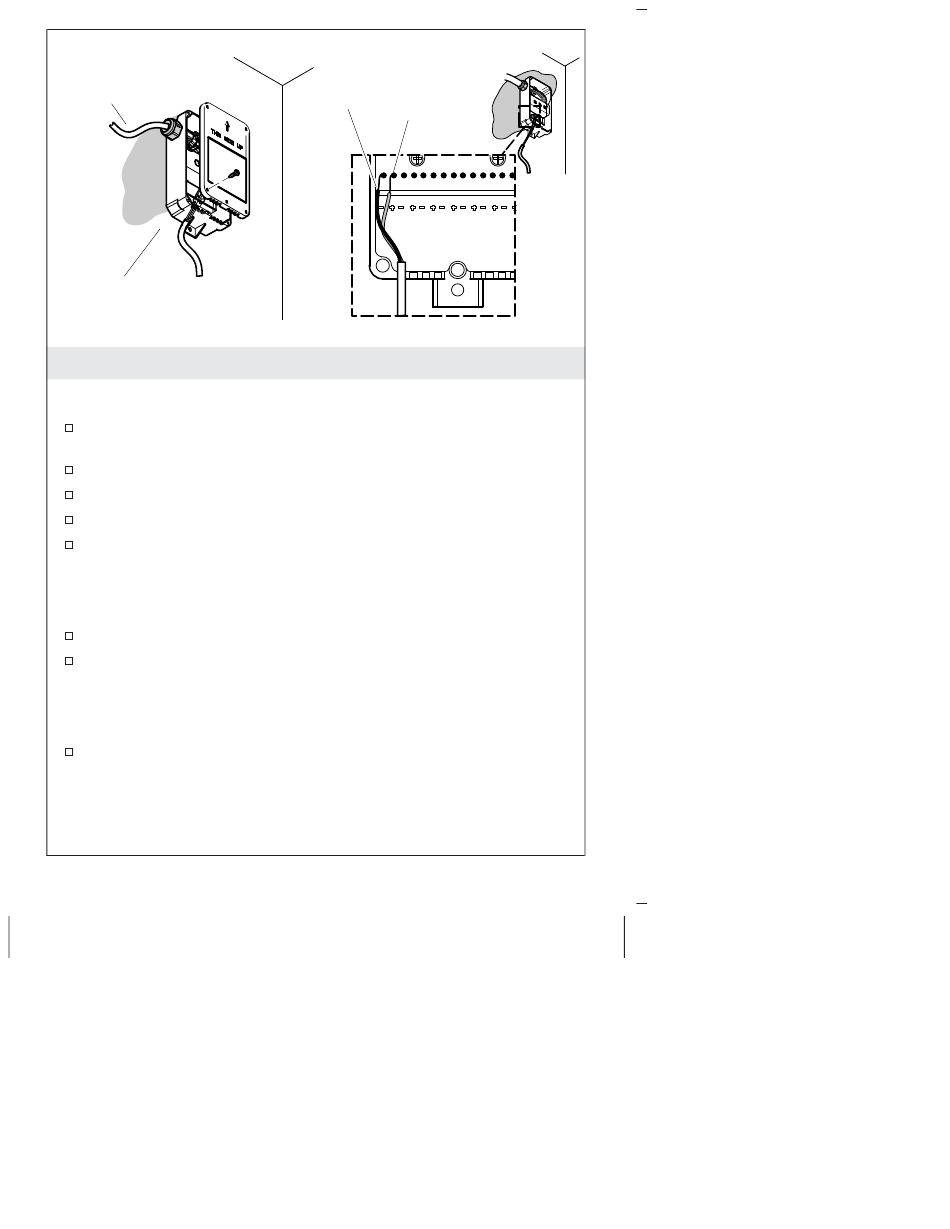

Mount the AC supply under the counter using two screws (not
supplied). Orient as shown.
Remove the cover.
Connect the faucet wire to the faucets.
If needed, cut and strip the AC supply wires to length.
Connect the stripped ends to the bottom terminal block (TB2) in
the supply box.
NOTE: If a hard wired installation is required go to the next
installation section.
Plug the AC supply into the wall outlet.
Secure any excess wire under the counter.
IMPORTANT! The area in front of the sensor must be free of
objects during the 2 minute learning cycle or the faucet may not
function properly.
Allow 2 minutes for the sensor to cycle through the automatic
sensing distance.
