Robinet de cuisine à une manette
Masquer les pouces Voir aussi pour 101-DST:

Publicité

Liens rapides

Télécharger ce manuel
ASME A112.18.1 / CSA B125.1
Models/Modelos/Modèles
100-DST, 101-DST, 117-DST,
119-DST, 140-DST, 141-DST,
175-DST, 300-DST, 319-DST,
340-DST, 400-DST, 417-DST,
419-DST, 440-DST & 441-DST
Series/Series/Seria
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your
Delta faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave
Delta usted necesitará:
• LEER TODAS las instrucciones
completamente antes de empezar.
• LEER TODOS los avisos, cuidados,
e información de mantenimiento.
Pour installer votre robinet
Delta facilement, vous devez:
• LIRE TOUTES les instructions avant
de débuter;
• LIRE TOUS les avertissements ainsi que
toutes les instructions de nettoyage et
d'entretien;

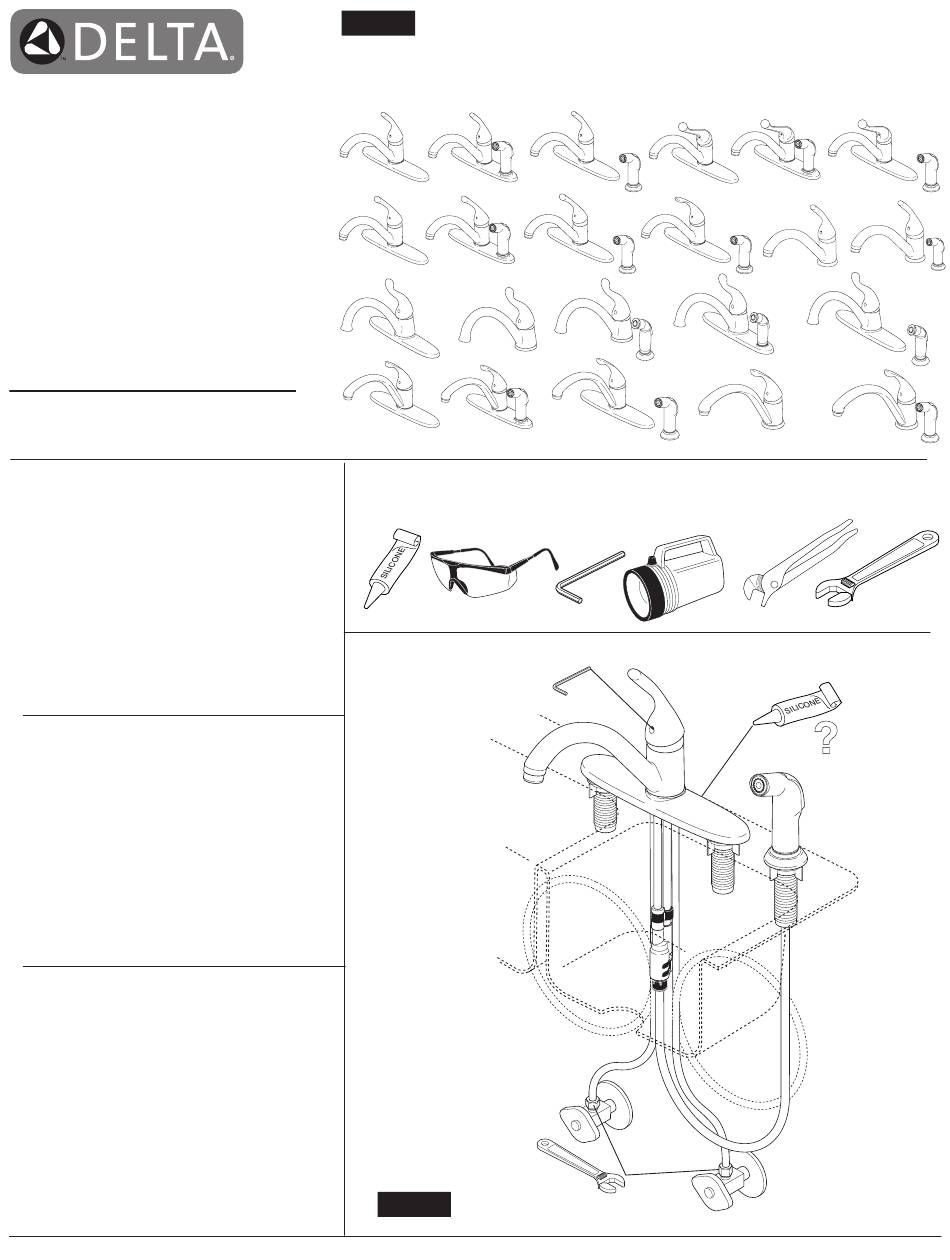

SINGLE HANDLE KITCHEN FAUCET
64283
LLAVE DE COCINA DE PALANCA
ROBINET DE CUISINE À UNE MANETTE
You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
T E FLO N
64283
1
T E FLO N
8/12/14 Rev. E
