Ryobi ACMD01 Manuel D'utilisation

TRIMMER
MOWER DECK
CHASSIS DE TONDEUSE
ET DE TAILLE-BORDURE
PLATAFORMA DE PODADORA
PARA RECORTADORA DE HILO
ACMD01
This accessory is to be used ONLY with the P20023 RYOBI string
trimmer (sold separately).
WARNING:
To reduce the risk of injury, user must read and understand the operator's
manual for their string trimmer before using this accessory. To reduce
the risk of injury or property damage, always hold firmly and support
the trimmer and mower deck. Never leave trimmer and mower deck
unattended in an upright position. Use only with the recommended
trimmer. Do not use if the trimmer does not securely lock into the mower
deck. Wear eye protection with side shields marked to comply with
ANSI Z87.1. Keep all people and pets clear of the mower deck while
in use. For outdoor use only – store indoors. Save these instructions.
Refer to them frequently and use them to instruct other users. If you
loan someone this tool, loan them these instructions also.

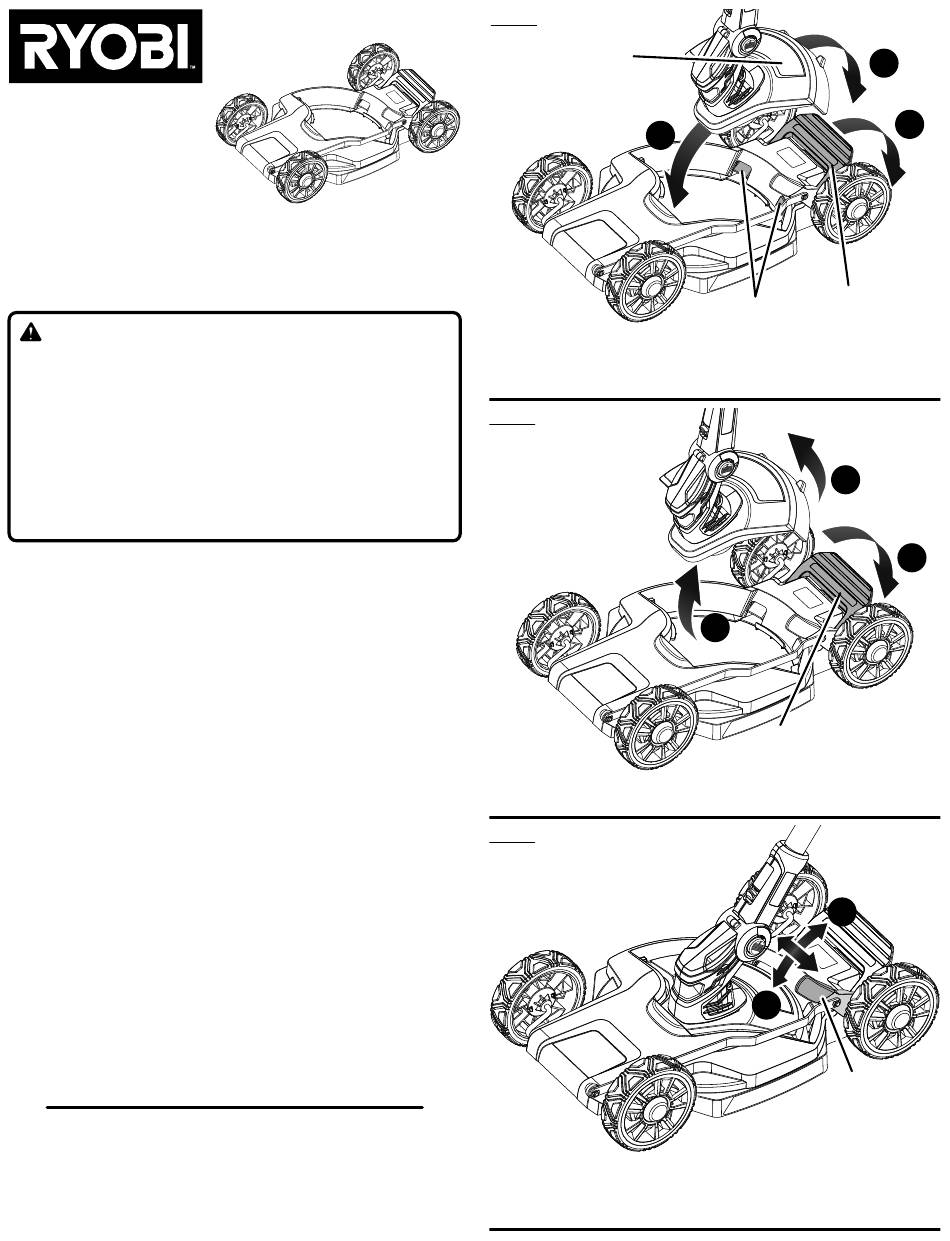

INSTALLING THE TRIMMER INTO THE MOWER DECK
See Figures 1 - 2.
 Insert the front of the trimmer into the mower deck as shown.
 Step down on the release lever on the back of the mower deck.
 Lower the rear of the trimmer into the mower deck and press downward
to make sure the grass deflector locks into place under the locking tabs.
To remove:
 Step down on the release lever on the back of the mower deck.
 Raise the rear of the trimmer to release the grass deflector from the
locking tabs.
 Once the grass deflector clears the locking tabs, lift the front of the
trimmer from the mower deck.
Always remove the trimmer from the mower deck for transporting or storage.
Avoid trying to raise the mower deck by the trimmer's handle.
ADJUSTING THE CUTTING HEIGHT
See Figure 3.
When shipped, the height adjustment on the mower deck is set to a low
cutting position. Before using the mower deck for the first time, raise the
cutting position to the height best suited for your lawn.
To adjust the cutting height:
This trimmer deck's cutting height adjusts from 1-1/2 in. to 3-1/2 in.
 Remove the battery pack from the string trimmer.
 To raise the cutting height, grasp the height adjustment lever, pull it out
and move it toward the back of the mower.
 Release the lever to lock it into one of the preset spaces.
 To lower the cutting height, grasp the height adjustment lever, pull it out
and move it toward the front of the mower.
 Reinstall battery pack into the string trimmer when you are ready to mow.
TECHTRONIC INDUSTRIES
POWER EQUIPMENT.
P.O. Box 1288, Anderson, SC 29622 • 1-800-525-2579
www.ryobitools.com
998000854
11-2-21 (REV:01)
Fig. 1
A
1
A - Grass deflector (déflecteur d'herbe, deflector de pasto)
B - Locking tabs (languette de verrouillage, orejetas de fijación)
C - Release lever (levier de débrayage, palanca de liberación)
Fig. 2
A - Release lever (levier de débrayage, palanca de liberación)
Fig. 3
A - Height adjustment lever (levier de réglage de hauteur, palanca de ajuste de altura)
B - To raise (soulever, levantar)
C - To lower (abaisser, bajar)
3
C
B
2
3
A
B
C
A
2
1
