CAUTION

Operating conditions

The following points should be noted particularly when using the device:
• The maximum permissible pressure pmax of the transmitter may not be
exceeded.
• The temperature of the medium in contact with the transmitter may
not exceed +80°ÀC.
• Avoid formation of ice on the process input of the transmitter because
this could damage the diaphragm.
• Prevent soiling of the transmitter input.
• Avoid obstruction to the vent pipes in the special cable (influences the
measuring accuracy).
• Limitation for applications with marine approval: Cable installation
inside closed container and/or tanks only. Outside closed containers a
connection with a terminal box has to be realized by a shortest possible
cable length (not longer than 6m).

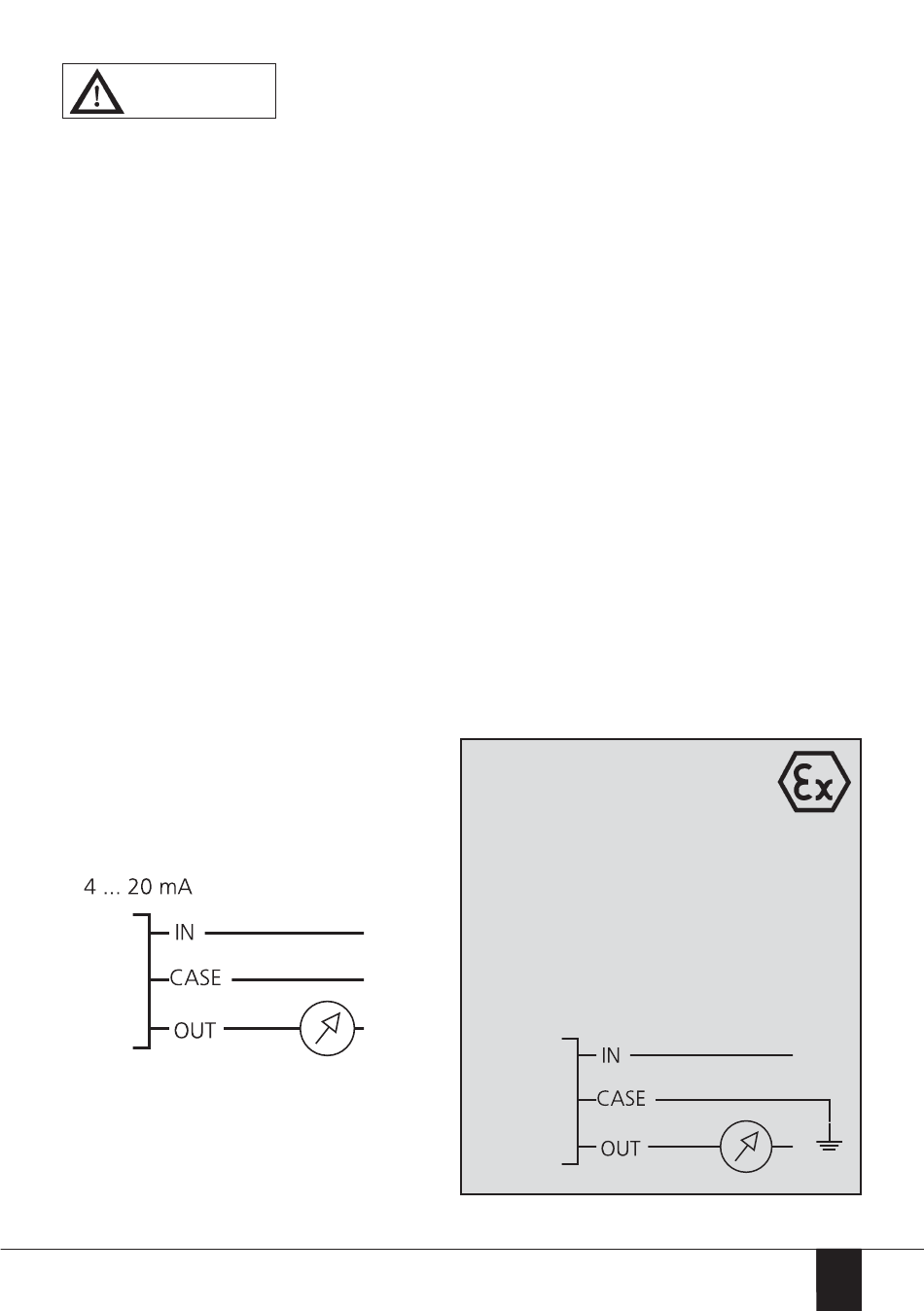

Electrical connections

brown
black
blue
Huba Control AG - Type 711 - Edition 10/2018 - 119052
Device design with explosi-
on protection 4 ... 20 mA
The grounding connection is
conductively connected to the level
transmitter housing. The ground
conductor of level transmitter must
be connected to the equipotential
bonding system of the plant.
brown
black
blue
