Positioning the DEXIS Sensor
Carefully follow setup, assembly and alignment procedures to ensure quality image
capture of defined areas of the patient's anatomy.

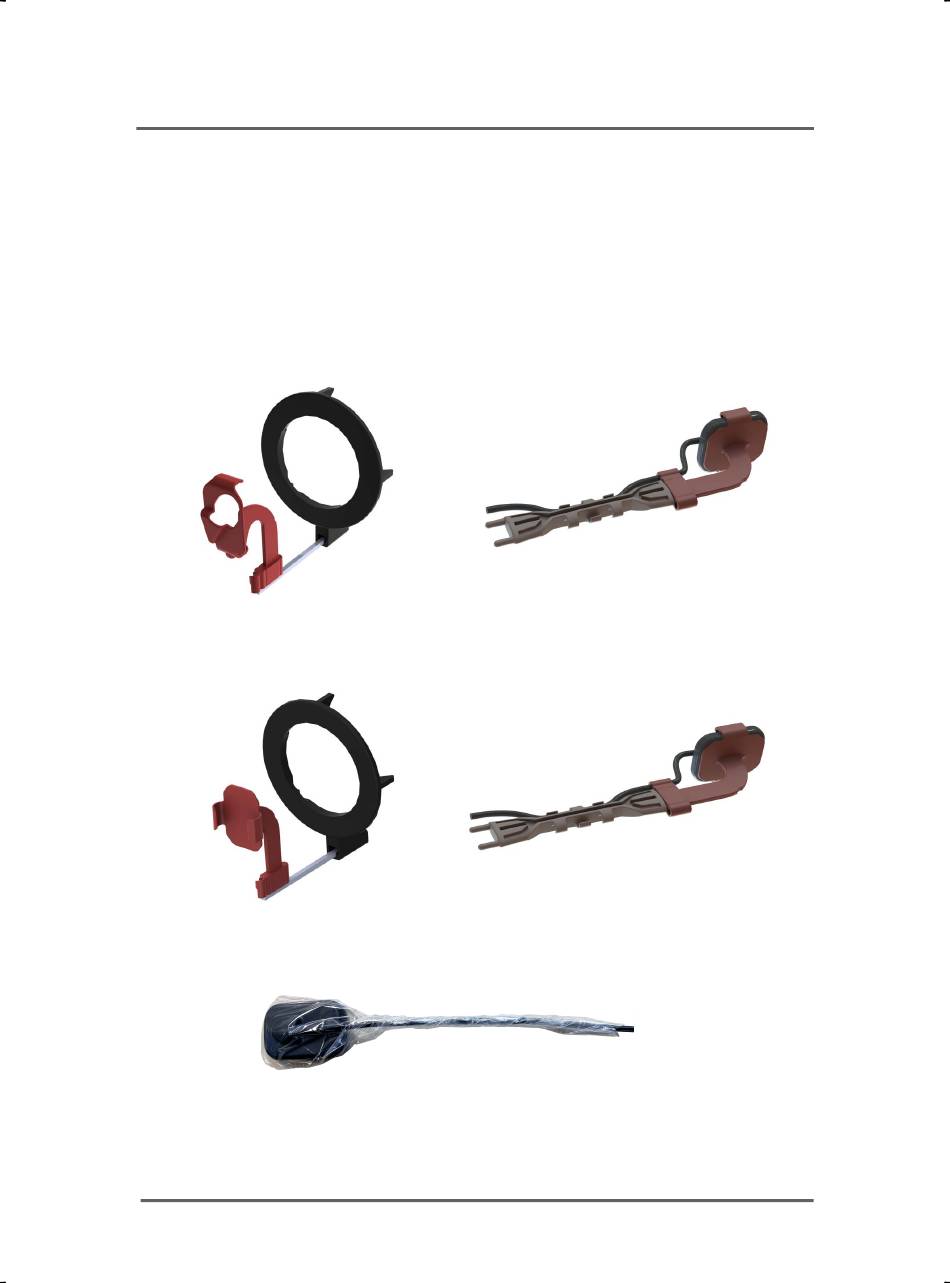

1. Assemble the rings, bars and holders so that the entire sensor area is visible
through the ring. This applies to horizontal or vertical Bitewing holders,
Periapical (anterior or posterior) holders, and hand-held holders.
DEXIS Titanium
DEXIS IXS
2. Place the sheath over the sensor.
3. Attach the sensor to the positioner. The sensor will only fit into the holder
one way.
4. Place the cable into the groove on the holder whenever possible. This
protects it when the patient closes.
