AD011 External PID Interface Installation Sheet
EN FR IT NL
1
2
Address 0:
ON
"1"
"0"
1 2 3 4
Address 4:
ON
"1"
"0"
1 2 3 4
Address Setting
0 00000000
1 10000000
2 01000000
3 11000000
4 00100000
5 10100000
6 01100000
7 11100000
8 00010000
9 10010000
10 01010000
11 11010000
12 00110000
13 10110000
14 01110000
15 11110000
© 2020 Carrier
5 6 7 8
5 6 7 8
Address Setting
16 00001000
17 10001000
18 01001000
19 11001000
20 00101000
21 10101000
22 01101000
23 11101000
24 00011000
25 10011000
26 01011000
27 11011000
28 00111000
29 10111000
30 01111000
31 11111000
1 2 3 4 5 6 7
3
Detector
Input +
EOL
Input-
EN: Installation Sheet
Description

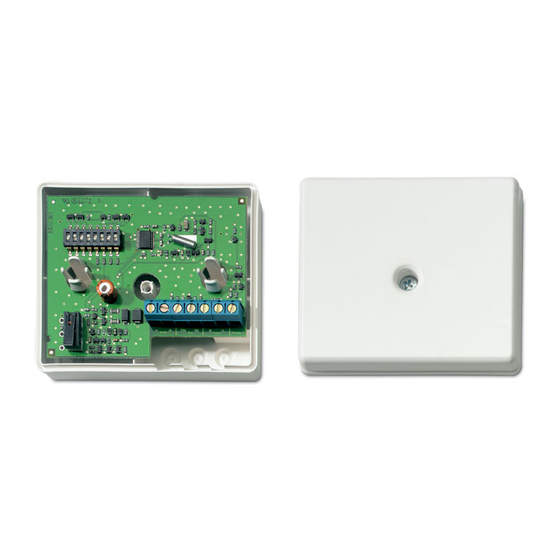

AD011 (see Figure 1) is designed as a universal external
interface for an addressable detector system. It connects a
generic detector with a dual loop (2-resistor configuration)
connection to the Advisor MASTER ATS1290 PID DGP. The
interface is equipped with one balanced input to connect the
alarm / tamper output of the detector and an open collector
output. This output can be used, for example, to enable /
disable the alarm LED on the detector (depending on the
detector's other functionalities, which can be programmed).
Device category
The AD011 is of the device category I/O, type 3 and will be
automatically recognised after learning the device into the
ATS1290 DGP. For more details about device categories and
types please refer to the ATS1290 manual.
P/N 149958999-3 (ML) • REV E • ISS 15DEC20
1 / 8
ATS1290 (DGP)
+
PID
+
AD011
-
1
Bus-
2
Bus +
3
4
5
6
7
+
-
Auxiliary
power
ATS control panel
