Manuale installatore - Installer guide
Manuel installateur - Technisches Handbuch
Instrucciones instalador - Manual do instalador
Εγχειρίδιο οδηγιών
40151 - 40152

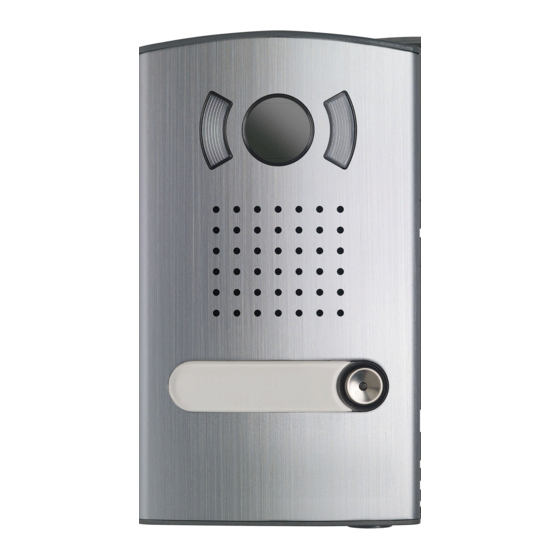

Placca audio/video monofamiliare / bifamiliare
One-family/two-family audio/video cover plate
Plaque audio/vidéo pour un ou deux logements
Audio-/Video-Frontplatte für Ein-/Zweifamilienhäuser
Placa audio/vídeo unifamiliar/bifamiliar
Placa áudio/vídeo monofamiliar/bifamiliar
Πλάκα ήχου/εικόνας μίας οικογενειών / δύο οικογενειών
Publicité
Manuels Connexes pour Vimar ELVOX 40151
Sommaire des Matières pour Vimar ELVOX 40151
- Page 1 All manuals and user guides at all-guides.com Manuale installatore - Installer guide Manuel installateur - Technisches Handbuch Instrucciones instalador - Manual do instalador Εγχειρίδιο οδηγιών 40151 - 40152 Placca audio/video monofamiliare / bifamiliare One-family/two-family audio/video cover plate Plaque audio/vidéo pour un ou deux logements Audio-/Video-Frontplatte für Ein-/Zweifamilienhäuser Placa audio/vídeo unifamiliar/bifamiliar Placa áudio/vídeo monofamiliar/bifamiliar...
- Page 2 All manuals and user guides at all-guides.com 40151 - 40152 Descrizione Description Placca audio/video installabile da esterno parete o incasso. Audio/video cover plate for surface mounting or flush moun- ting. Caratteristiche Characteristics • Dimensioni placca da esterno parete: 168x100x37 mm. •...
- Page 3 All manuals and user guides at all-guides.com 40151 - 40152 Descripción Descrição Placa audio/vídeo para montaje de superficie o de empotrar. Placa áudio/vídeo de montagem saliente ou de embeber. Características Características • Medidas de la placa de superficie: 168x100x37 mm. •...
- Page 4 All manuals and user guides at all-guides.com 40151 - 40152 Installazione della placca in versione ad Cover plate installation, flush-mounting ver- incasso parete sion - Installare a muro la scatola da incasso D ad una altezza di - Fit the flush mounting box D to the wall, at a height of approx. circa 1,65m dal bordo superiore dalla scatola al pavimento 1.65 m from the box on the ground (fig.
- Page 5 All manuals and user guides at all-guides.com 40151 - 40152 ESECUZIONE DA ESTERNO PARETE ESECUZIONE DA INCASSO PARETE A - Placca frontale A - Front plate Fig. 3 • Abb. 3 • Εικ. 3 B - Unità elettronica B - Electronic unit D - Scatola ad incasso parete (da D - Flush mounting box (use only for utilizzare solo per installazione...
- Page 6 All manuals and user guides at all-guides.com 40151 - 40152 Installazione della targa in versione da esterno Panel installation, external surface mounting parete version - Aprire la targa svitando la vite G, togliendo il diffusore di luce - Open the panel by loosening screw G, removing light diffuser - Installare a muro il telaio C unito alla la scatola da esterno - Fix the frame C to the wall with the external mounting box P P ad una altezza di circa 1,65m dal bordo superiore dalla...
- Page 7 All manuals and user guides at all-guides.com ESECUZIONE DA ESTERNO PARETE 40151 - 40152 A - Placca frontale A - Front plate Fig. 4 • Abb. 4 • Εικ. 4 B - Unità elettronica B - Electronic unit D - Scatola ad incasso parete (da D - Flush mounting box (use only for utilizzare solo per installazione flush mounting)
- Page 8 All manuals and user guides at all-guides.com 40151 - 40152 Fig. 5 • Abb. 5 • Εικ. 5 Fig. 6 • Abb. 6 • Εικ. 6 BLU • BLUE • BLEU • BLAU • AZUL • AZUL • ΜΠΛΕ ROSSO • RED • ROUGE • ROT • ROJO • VERMELHO • ΚΟΚΚΙΝΟ NERO •...
- Page 9 All manuals and user guides at all-guides.com 40151 - 40152...
- Page 10 40151 - 40152 manuale istruzioni è instruction manual Télécharger manuel Die Bedienungsanleitung ist auf scaricabile dal sito www.vimar. downloadable from the site d’instructions sur le site www. der Website www.vimar.com www.vimar.com vimar.com zum Download verfügbar Règles d’installation Installationsvorschriften Regole di installazione Installation rules L’installation doit etre confiee...
- Page 11 Το εγχειρίδιο οδηγιών είναι puede descargar en la página manual de instruções no site διαθέσιμο για λήψη από την web www.vimar.com ιστοσελίδα www.vimar.com www.vimar.com Normas de instalación Regras de instalação Κ α ν ο ν ι σ μ ο ι...
- Page 12 All manuals and user guides at all-guides.com Viale Vicenza, 14 36063 Marostica VI - Italy 49401382A0 00 1906 www.vimar.com...
