Drive RTL800KD-BK Instructions D'assemblage page 2

assembly instructions

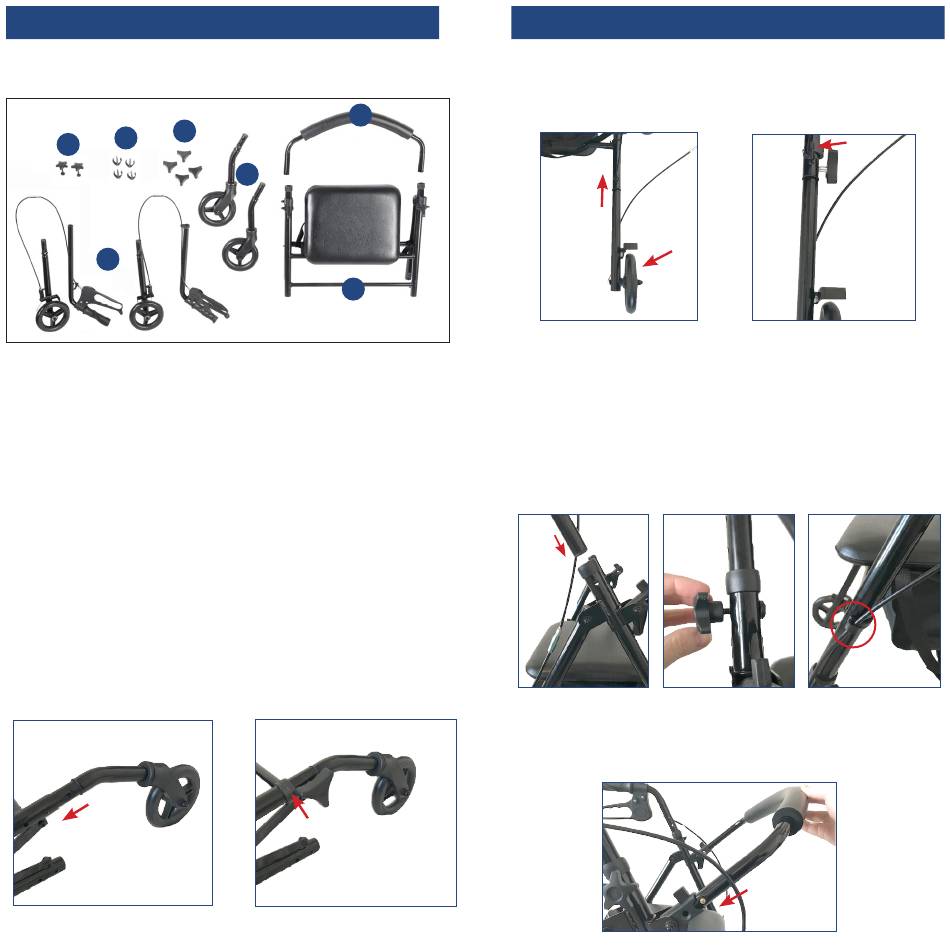

1. Remove all contents from packaging.
D
E
F
C
A. Frame
B. Front Wheel Assembly
(Without Brakes)
C. Back Wheel Assembly
(With Handbrakes)
2. Open frame (A) and place up-side-down on the floor.
Insert the front wheel assembly (without brakes) (B)
into the front left frame receptacle. Note: Correspond
the front wheel assembly labeled "L" with the front
frame receptacle labeled "L". Secure in place using the
wheel tightening knob (D), threading the knob in from
the outside. Insert c-clip (E) above the knob to secure
wheel in place. Repeat for second leg, corresponding the
front wheel assembly labeled "R" with the front frame
receptacle labeled "R".
G
B
A
D. Wheel Tightening Knob
E. C-Clip
F. Handle Tightening Knob
G. Backrest
assembly instructions
3. Attach back wheel assembly (with handbrakes) (C) using
the same process as described in Step 2 making sure the
wheels are positioned on the outside of the rollator.
4. Position rollator upright and insert the left handle tube
into frame and set to desired height. Secure in place using
the handle tightening knob (F), threading the knob in from
the outside. Note: Ensure the washer is threaded on the
inside of the frame closest to the screw head. Repeat for
the right handle, making sure both handles are set to the
same height. Affix brake cable to the frame using the "S"
shaped clamp provided.
5. Attach padded backrest (G) by depressing the black thumb
buttons and sliding into the black bracket. Note
that back rest can be folded up when not in use.
