2.
Install a drill bit into the chuck and hand-tighten. Make sure the bit's shaft
is straight. Tighten using the chuck key. Remove the chuck key.
3.
Connect the air drill to the end of the air hose.
4.
Set the compressor to the correct air pressure and flow (see
Specifications). Start the compressor.
5.
Push the lever behind the trigger upward to set it in
forward. Push down to set the drill in reverse (Fig. 1).
6.
Test the drill under no load to confirm the bit is
installed correctly.
7.
Place the drill bit point onto the workpiece surface.
a.
Use a center punch to mark the spot to prevent
the drill bit from skittering across the surface.
b.
A larger drill bit may require a pilot hole. Use a
narrower bit to drill the pilot hole first, then install the larger bit.
c.
Apply a drop of cutting oil to the drill bit and surface before drilling
metal.
8.
Squeeze the trigger and lightly push the drill against the workpiece. Continue
to apply pressure until the proper depth is reached.
9.
Hold the trigger until the drill bit is removed from the hole, then release
the trigger.
10. Shut the compressor off once the task is completed. Squeeze the trigger to
release residual compressed air from the hose and tool. Disconnect the tool.
11.
Remove the bit and store both the bit and the drill.
CARE & MAINTENANCE
1.
Maintain the tool with care. A tool in good condition is efficient, easier to
control and will have fewer problems.
2.
Inspect the tool fittings, alignment andhoses periodically. Have damaged
or worn components repaired or replaced by an authorized technician.
Only use identical replacement parts when servicing.
3.
Follow instructions for lubricating and changing accessories.
4.
Only use accessories intended for use with this tool.
5.
Keep the tool clean, dry and free from oil/grease at all times.
6.
Maintain the tool's labels and name plates. These carry important information.
If unreadable or missing, contact Princess Auto Ltd. for replacements.
WARNING! Only qualified service personnel should repair the tool. An
improperly repaired tool may present a hazard to the user and/or others.
Visit www.princessauto.com for more information
3/8 in. Pistol Grip Reversible Air Drill
8843542

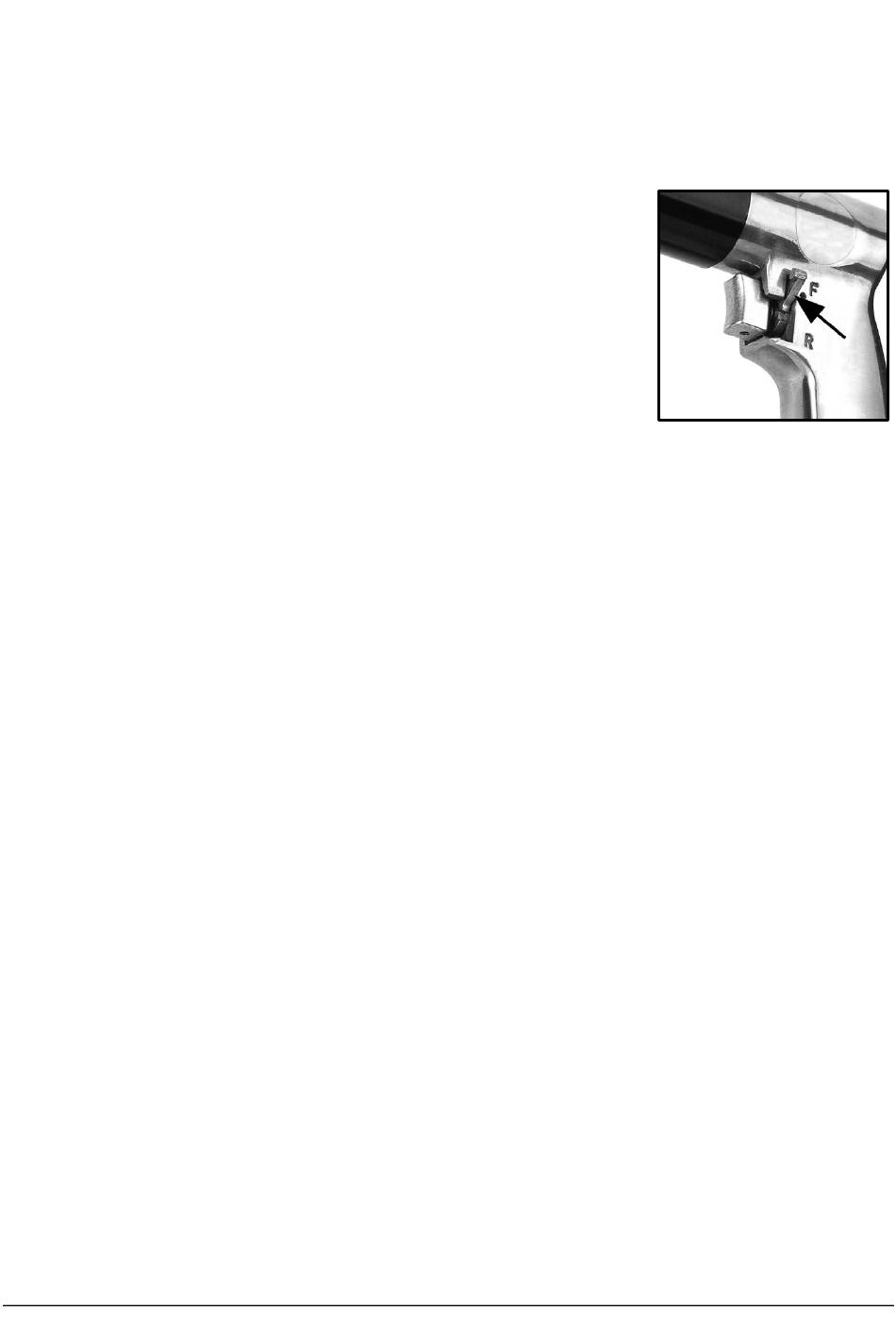

Fig. 1
