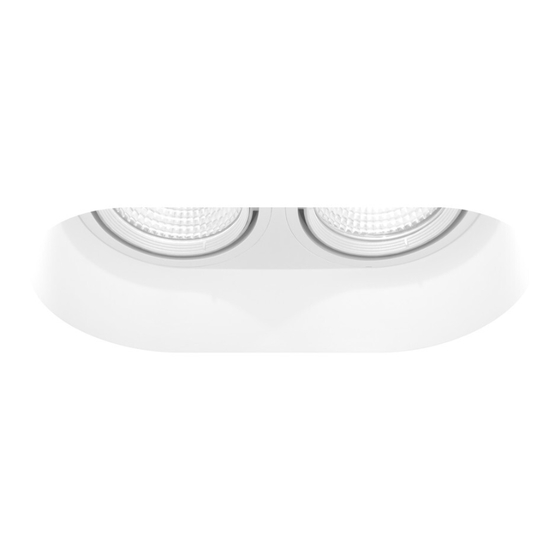

INVISIBLE
Mounting instructions
Abmessungen | Dimensions | Dimensioni | Medidas | Dimensions
RETRO (Large, Medium) |
SQUARE (Large, Medium) |
ROUND (Large, Medium)
XAL GmbH
Auer-Welsbach-Gasse 36
The XAL After Sales Hotline is available by phone:+43 316 3170 9400 from Monday to Friday from (MEZ) 7:00 a.m. to 8:00 p.m. or 24/7 via email service@xal.com
A-8055 Graz
T:+43.316.3170.0
RETRO Large
224 x 224mm
RETRO Medium
176 x 176mm
RETRO Mini
145 x 145mm
SQUARE Large
182 x 182mm
SQUARE Medium
138 x 138mm
SQUARE Mini
118 x 118mm
ROUND Large
182 x 182mm
ROUND Medium
138 x 138mm
ROUND Mini
118 x 118mm
RETRO Mini | SQUARE Mini | ROUND Mini
RETRO | SQUARE | ROUND
F:+43.316.3170.9000
www.xal.com
224 x 414mm 224 x 599mm
176 x 302mm
145 x 255mm 145 x 355mm
182 x 337mm 182 x 502mm
138 x 250mm
118 x 209mm 118 x 300mm
182 x 337mm 182 x 504mm
138 x 250mm
118 x 209mm 118 x 300mm
