NOTES:
1. The room steam kit housing has flanges
on the front that must be mounted on the
outside face of the drywall.
2. When installing in new construction, use
a piece of return air angle to mark where
the room steam kit will go to prevent
the drywall from being installed over the
location for the room steam kit housing.
Fig. 3.b

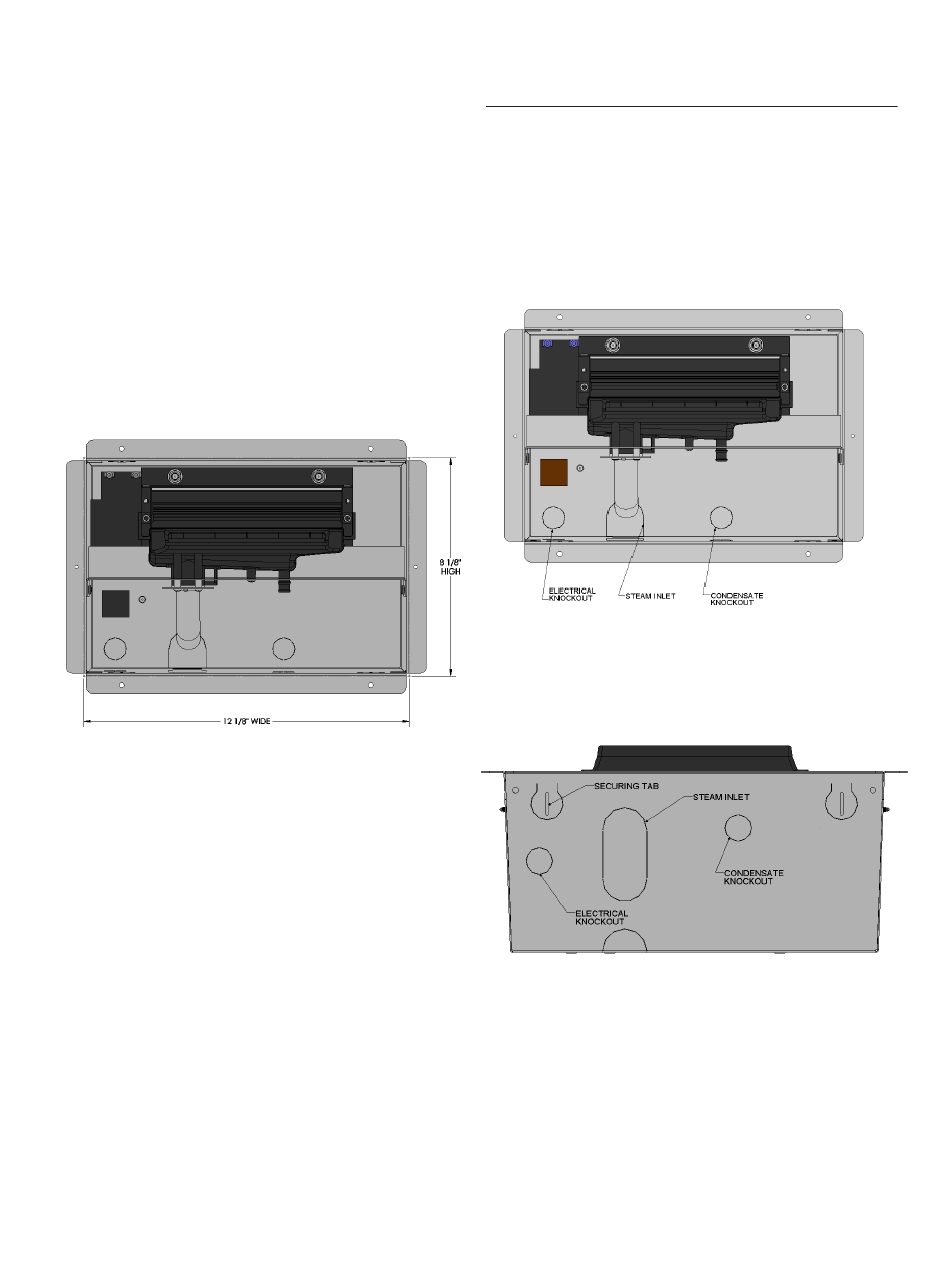

3.3 HOUSING KNOCKOUTS

Determine if the steam will be entering the
housing from the back or bottom. Remove the
knockouts for the steam hose, condensate hose,
and electrical connections. (See Figure 3.b.).
Fig. 3.d
Page | 10
Fig. 3.c
