GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of an
electrical short circuit, grounding reduces the risk of
electric shock by providing an escape wire for the
electric current. This appliance is equipped with a cord
having a grounding wire with a grounding plug. The
plug must be plugged into an outlet that is properly
installed and grounded.Consult a qualified electrician
or serviceman if the grounding instructions are not
completely understood, or if doubt exists as to whether
the appliance is properly grounded.
WARNING
Improper use of the
grounding plug can result
in a risk of electric shock.
Do not use an extension
cord. If the power supply
cord is too short, have
a qualified electrician
or serviceman install an
outlet near the appliance.
ELECTRICAL REQUIREMENTS
Product rating is 120 volts AC, 60 Hertz, 12 amps and
1.35 kilowatts. This product must be connected to a
supply circuit of the proper voltage and frequency. Wire
size must conform to the requirements of the National
Electrical Code or the prevailing local code for this
kilowatt rating. The power supply cord and plug should
be brought to a separate 15 to 20 ampere branch
circuit single grounded outlet. The outlet box should
be located in the cabinet above the oven. The outlet
box and supply circuit should be installed by a qualified
electrician and conform to the National Electrical Code
or the prevailing local code.
2

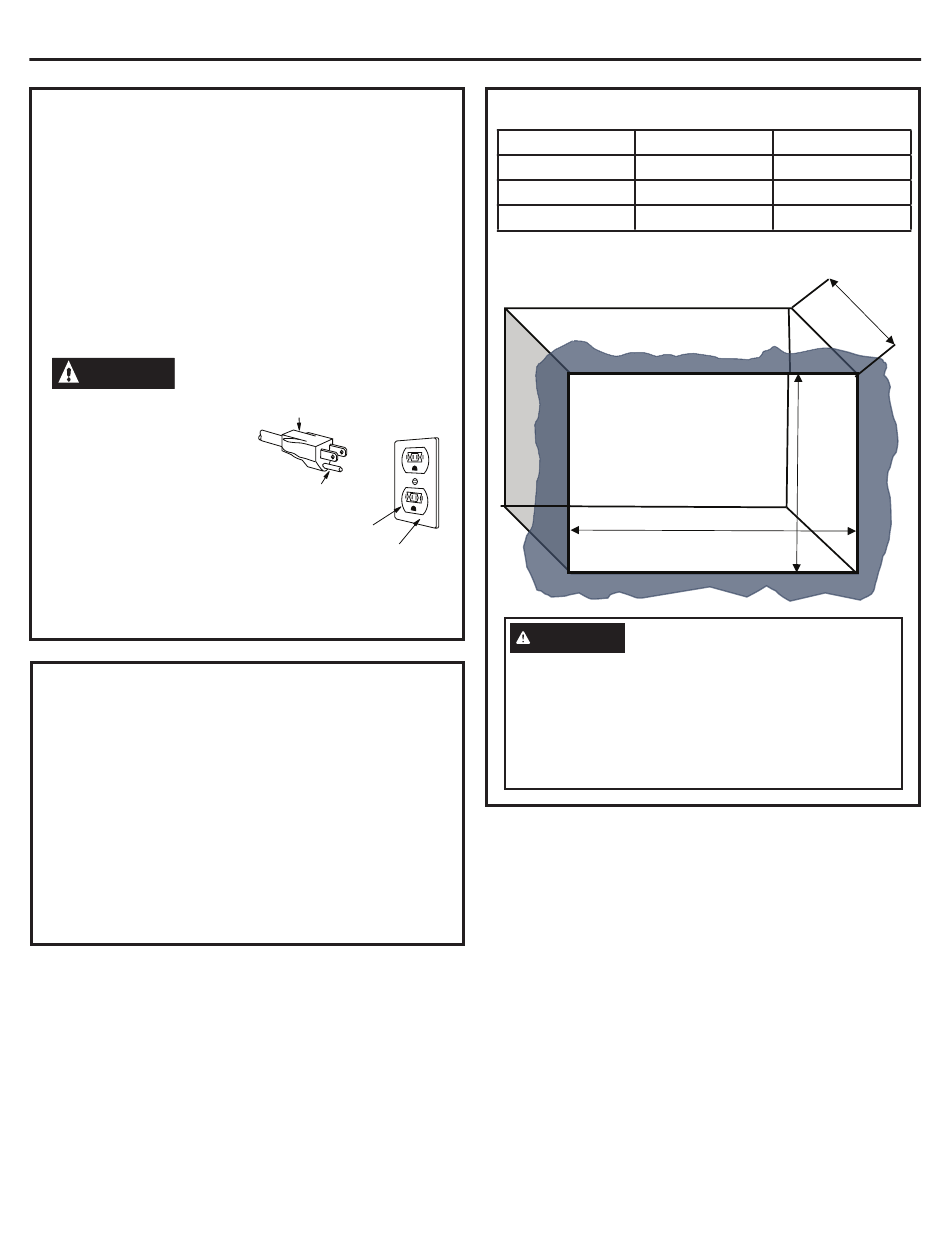

Installation Instructions
Permanent and Correct
Installation
3-Prong plug
Grounding pin
3-Prong receptacle
Grounded receptacle box
CUTOUT DIMENSIONS
Minimum
Height
13 3⁄8" (340 mm)
Width
20" (510 mm)
Depth
14 1⁄8" (359 mm)
* Min. depth with receptacle outside cabinet 19
Min. depth with receptacle inside cabinet 22"
CAUTION
This trim kit uses air flow from the top and bottom of
the trim frame. Blocking the air flow can cause the
microwave to function improperly and may cause
damage to the microwave.
Allow a 1" clearance beyond the edge of the Trim
Frame to provide proper air flow.
Maximum
13 1⁄2" (344 mm)
20 1⁄4" (514 mm)
N/A
⁄
"
1
2
Depth
Height
Width
31-7000180 Rev. 1
