ASSEMBLY

1. Place each burner head onto the burner bracket
as shown in Figure 1.
CAUTION: The burner heads
should be positioned as far
down on the burner bracket as
possible. Make sure the air inlet
holes in the mixing tube on the
burner head are not covered by
the burner bracket.
2. Insert two bolts through square holes and then
through round holes in burner bracket.
3. Place two flat washers onto bolts. Thread wing
nuts onto bolts.
4. Carefully thread mounting bolt into tank collar
bracket on the lower portion of the post.
Wing Nut
and Washer
Mixing
Tube
Air Inlet
Hole

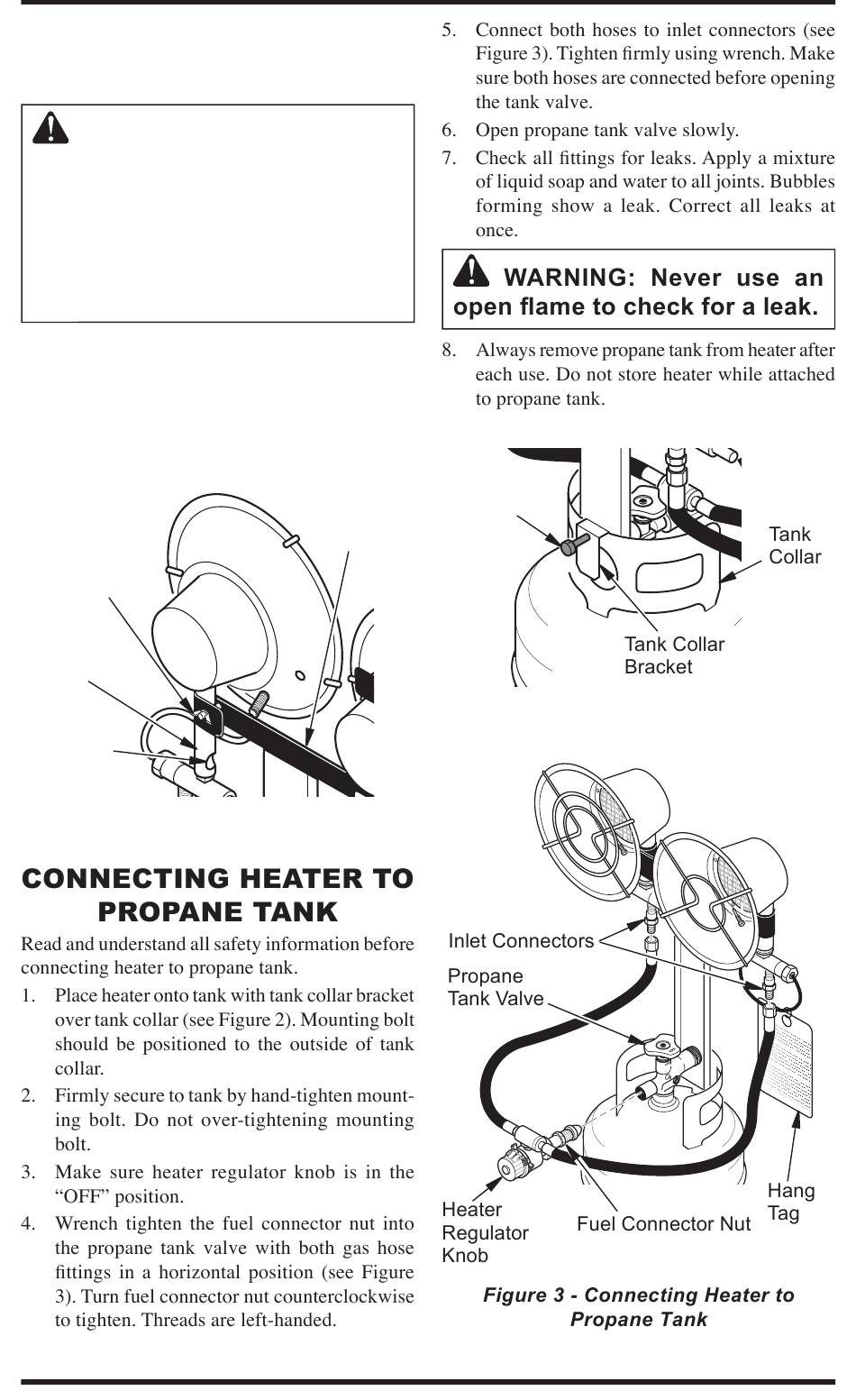

Figure 1 - Attaching Heater to Bracket
102414-01E
Mounting
Burner Bolt
Bracket
