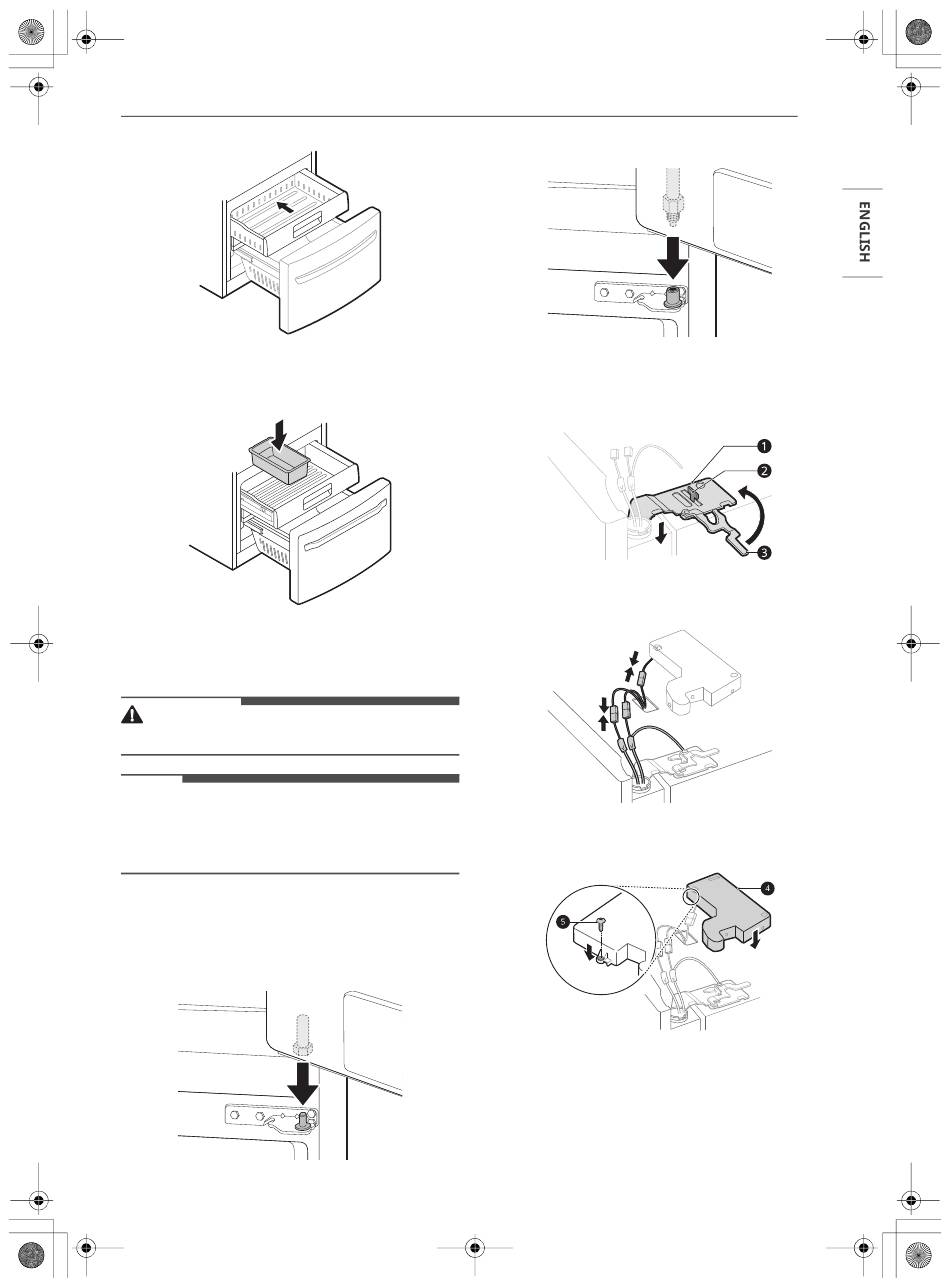

Replace the ice bin in the drawer. Insert the
Durabase basket in the rail assembly.
Assembling the Right Refrigerator
Door
CAUTION
• Install the right-side door first.
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
1
Make sure that the plastic sleeve is inserted in
the bottom of the door. Lower the door onto
the middle hinge pin as shown in the figure.
• Type A
• Type B
2
Fit the hinge over the hinge lever latch
a
and slot it into place. Rotate the lever
counterclockwise to secure the hinge.
3
Connect all the wire harnesses and the
ground screw.
4
Set the hinge cover
d
tighten the cover screw
INSTALLATION 17
b
c
in place. Insert and
.
e
