REED RBIT1 Instructions page 3

#04649 CPBMKIT MILWAUKEE
1. Remove the battery from the grinder before any
work is to be done on the grinder.
2. Remove wax protective coating on the new router bit.
The router bit is not supplied with CPBMKIT beveler
adapter and must be purchased separately.
3. Place the router bit into the grinder collet and slide the
bit down until it stops (bottoms out) and hand tighten the
collet.
4. Next, raise the bit up until there is 1/8" space between
the top of the collet and the bottom of the router bit
and tighten the collet with the wrenches provided with
the grinder with the grinder. FIRMLY TIGHTEN THE
COLLET to prevent the router bit from coming loose
while operating and causing damage or injury.
5. Place the beveler adapter #04649 onto the grinder
locating the Adjusting Knob 90° to the left of the on/off
switch as shown in the Assembly Diagram 1.
6. Loosen the adjusting screw and slide the guide plate
assembly to the lowest position. Push down on the
Adapter with a rocking motion until the top of the guide
plate is in line with the bottom of the Router Bit.

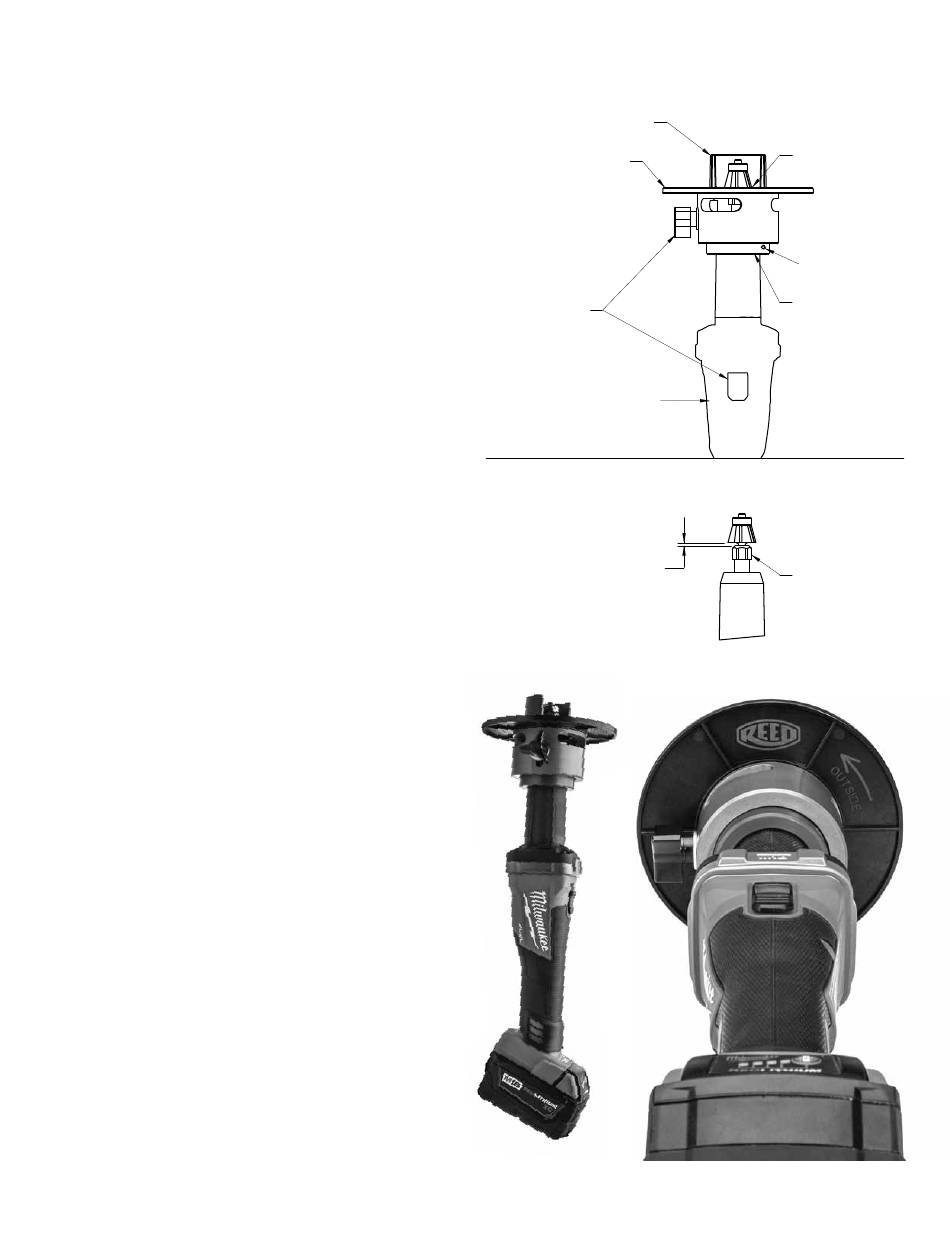

ASSEMBLY DIAGRAM 1
7. Slide the guide plate assembly up and tighten the clamp
screw on the adapter.
SHROUD
8. Adjust the guide plate to the desired length of bevel and
tighten the adjusting knob screw.
GUIDE PLATE
G KNOB
OCATED
INTERNAL BEVEL SHROUD:
SWITCH
SHOWN
An internal shroud #94644 is available for beveling 2" ID and
larger pipe.
MILWAUKEE GRINDER
REPLACE SHROUD:
MODEL #2784-20
To replace the shroud, remove the three screws from the
guide plate with provided 1/8" hex wrench, replace shroud
and reassemble.
READ AND UNDERSTAND ALL SAFETY WARNINGS
AND INSTRUCTIONS, INCLUDING DEWALT/
MILLWAUKEE GRINDER AND BATTERY CHARGER
WARNINGS AND INSTRUCTIONS.
FAILURE TO FOLLOW ALL WARNINGS AND INSTRUCTION
LISTED MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR
SERIOUS PERSONAL INJURY.
0520-54654
® ASSEMBLY:
GUIDE PLATE
SHOULD BE FLUSH
WITH BOTTOM OF
ROUTER BIT
CLAMP SCREW
MILWAUKEE
ADAPTER
04649 ASSEMBLY DIAGRAM 1
SHROUD
GUIDE PLATE
ADJUSTING KNOB
MUST BE LOCATED
90° FROM SWITCH
AS SHOWN
MILWAUKEE GRINDER
MODEL #2784-20
04649 ASSEMBLY DIAGRAM 2
APPROXIMATE
OPERATING DIAGRAM
4 REFERENCE LINES
1/8" INCREMENTS
FOR ADJUSTING
THE BEVEL SIZE
1/8"
ASSEMBLY DIAGRAM 1
GUIDE PLATE
SHOULD BE FLUSH
WITH BOTTOM OF
ROUTER BIT
CLAMP SCREW
MILWAUKEE
ADAPTER
ASSEMBLY DIAGRAM 2
1/8"
COLLET
RBIT2
RECOMMENDED:
SET HEIGHT TO THIS LINE
FOR REMOVING HALF THE
MATERIAL FOR FIRST PASS
ON LARGER BEVEL
WHEN USING RBIT2
04649 - CPBDKIT Plate (Millwaukee)
3
