CONNECTION
MOUNTING
Disconnect power supply by the phase fuse, the circuit-breaker or the switch-disconnec-
tor combined to the proper circuit.
Check if there is no voltage on connection cables by means of a special measure equip-
ment.

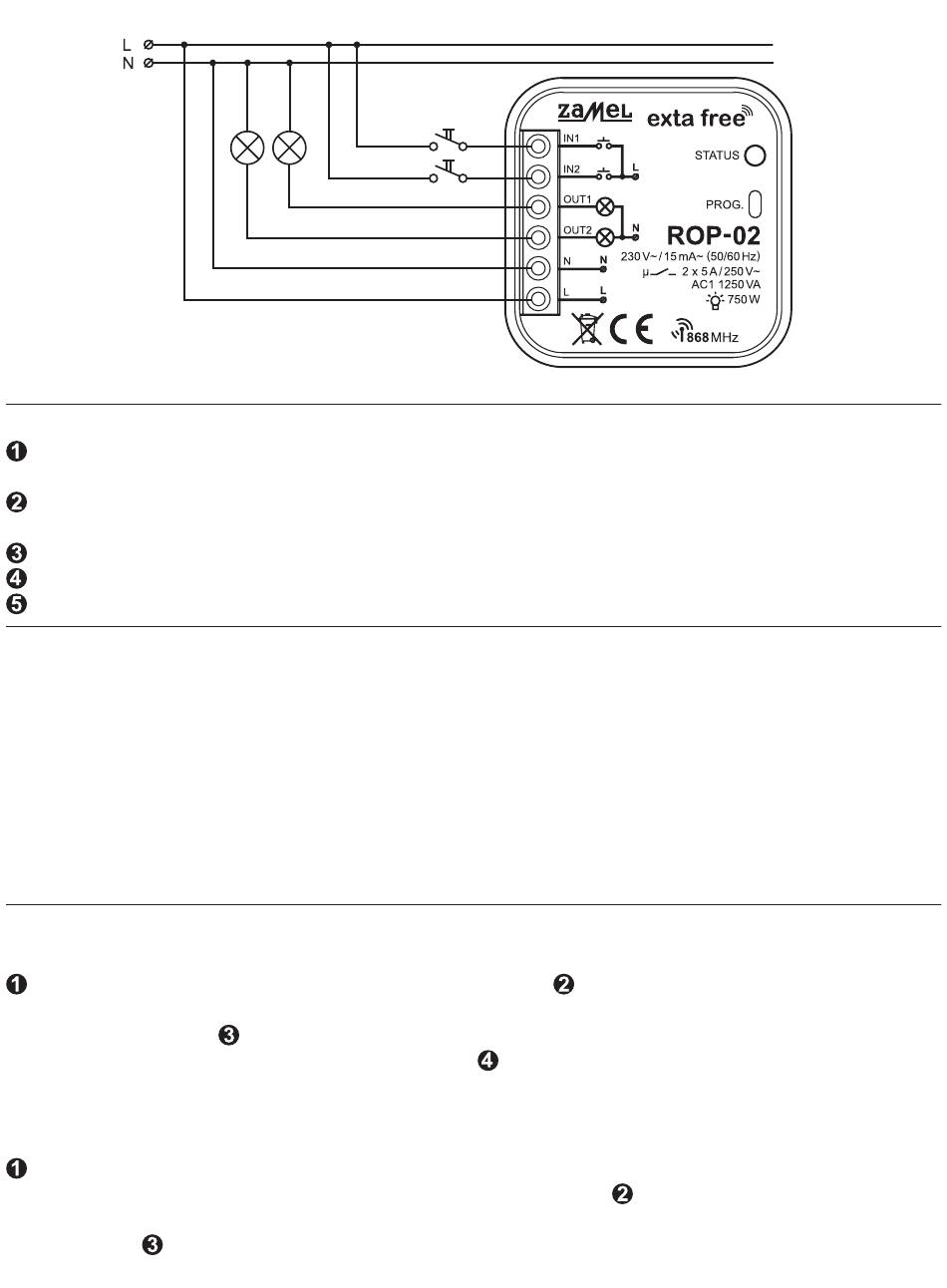

Connect the cables with the terminals in accordance with the installing diagram.
Install ROP-02 device in installation cable box.
Switch on the power supply from the mains.
OPERATION
The device can operate in five modes:
MONOSTABLE the relay operates only while pressing transmitter's push-button.
BISTABLE (one push-button) the device changes relay status cyclically always after
pressing the same pushbutton.
SWITCH ON the device switches on after pressing the pushbutton.
SWITCH OFF the device switches off after pressing the pushbutton.
TIME the device switches off according to the adjusted time (tp), but it may be switched off
before adjusted time finishes. Default settings - 15 seconds.
ATTENTION! Saved time will be not deleted.
RADIO TRANSMITTERS POGRAMMING - CHANNEL 1
MONOSTABLE mode:
Press transmitter's push-button for a longer time.
02 device for a longer time until LED red diode switches on (constant signal). Next release
PROG push-button.
signal pulsates, next the signal is constant).
and release it. LED red diode switches on (the signal pulsates) and next the signal switches
off - THE TRANSMITTER IS ADDED.
BISTABLE mode:
Press PROG push-button of ROP-02 device for a longer time until LED red diode switch-
es on (constant signal). Next release PROG push-button.
button for a longer time. LED red diode switches on (first signal pulsates, next the signal
is constant). Release transmitter's push-button. LED red diode switches on (the signal
pulsates), next the LED red diode switches off - it means the TRANSMITTER IS ADDED.
Release transmitter's push-button. LED red diode switches on (first
Press PROG push-button of ROP-
Press the same transmitter's push-button
Press the transmitter's push-
