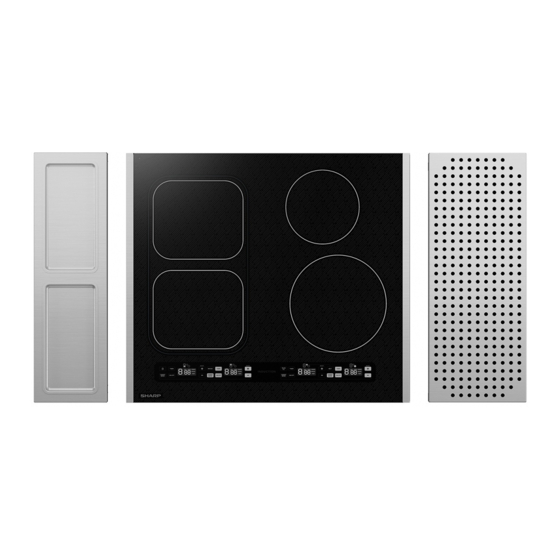

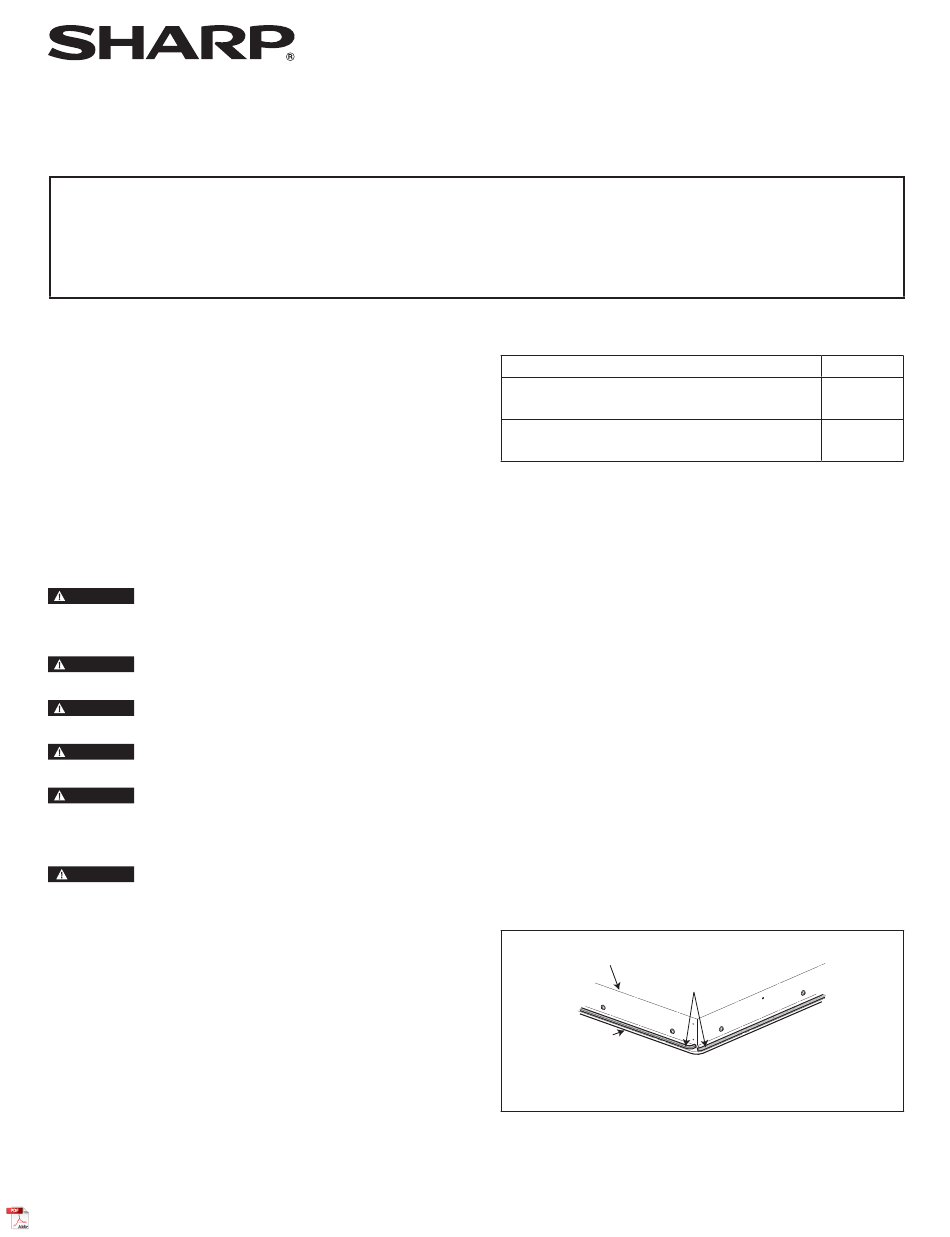

Induction Cooktop: SCH2443GB, SCH3043GB
SPECIAL WARNING
• INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER.
• IMPORTANT: SAVE THIS INSTALLATION MANUAL FOR LOCAL ELECTRICAL INSPECTOR'S USE.
• READ AND SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
IMPORTANT NOTES TO THE INSTALLER
• Read the entire Installation Manual before installing the Induction
Cooktop.
• Remove all packing material before connecting the electrical
supply.
• Observe all governing codes and ordinances.
• Be sure to leave these instructions with the consumer.
• All cooktops must be hard wired (direct wired) into an approved
junction box. A plug-in outlet is not permitted on these products.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
Failure to follow the safety and installation
instructions in this manual may result in fire or electric shock that
could cause property damage, personal injury or death.
WARNING Never leave children alone or unattended in the
area where a cooktop is in use.
WARNING
Stepping, leaning or sitting on the cooktop may
result in serious injury and damage to the cooktop.
Do not store or use gasoline or other flammable
WARNING
vapors and liquids in the vicinity of this or any other appliance.
WARNING
Cabinets located above the radiant unit may burn
or ignite due to overheating. Reduce the risk of burns and fire by
installing a range hood that protects horizontally at a minimum of 5
inches below the bottom of the cabinets.
Provide sufficient space around the cooking area to
CAUTION
prevent accidents and achieve optimal ventilation.
IMPORTANT INSTALLATION INFORMATION
• Dimensions shown on page 3 and 4 must be used.
dimensions provide minimum clearance.
• Contact surface must be solid and level.
• The approximate location of the junction box should be a
minimum of 12" (30.5 cm) below the cooktop. See Figure 5.
• Your cooktop can be installed into a countertop by itself, above
a gas or electric wall oven, above a microwave drawer or above
a convection microwave drawer.
• All induction cooktops run off a single phase, three-wire cable,
208/240V/30A 60Hz, AC only electrical supply with ground.
Minimum distance between cooktop and overhead cabinetry
is 3 0".
INSTALLATION MANUAL
Given
PART INCLUDED
PARTS
Cushion Tape # PCUSGB125MRP0
77 cm x 6 mm x 2 mm
Cushion Tape # PCUSGB126MRP0
54 cm x 6 mm x 2 mm
BEFORE INSTALLING THE COOKTOP
1. Visually inspect the cooktop for damage. Ensure all cooktop
screws are on tight.
2. Record the model and serial number as found on the bottom of
your cooktop. When ordering parts for or making inquiries about
your cooktop, always be sure to include the model and serial
numbers and a lot number or letter from the serial plate on your
cooktop.
3. Prepare the cutout dimensions of the countertop.
4. Make sure the wall coverings, countertop and cabinets around
the cooktop can withstand heat (up to 200°F) generated by the
cooktop. It is very important to allow sufficient space under
the cooktop. If under the cooktop has insufficient space, the
temperature may become too high and affect performance. See
Figure 6.
5. Apply the included cushion tape around the outer edge of the
glass on all four sides. Do not overlap the tape. See Figure 1.
6. Gently lower the cooktop into the countertop cutout.
NOTE: Do not seal the cooktop to the countertop. The cooktop must
be removable if service is necessary. Remove all packaging labels
and protective film before operating the induction cooktop.
Bottom of Cooktop
Cooktop
Glass
1 1
Foam Tape
Figure 1
QTY.
2
2
E
